KING TONY 34323-2A 3/8-inch 24-Tooth Torque Wrench, 20–110 N·m
Hand Tools
$5,710.00
No downloads available yet
Contact JACO if you need a datasheet, certificate or another technical document.

$4,000.00/ 支Was $5,710.00-30%

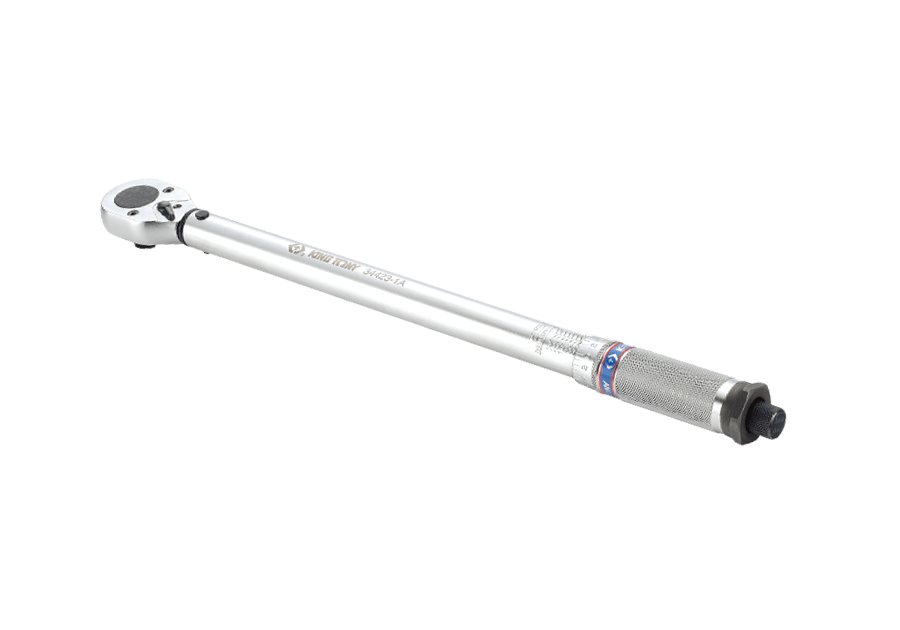

The KING TONY 34323-1A is an adjustable 3/8-inch square-drive torque wrench for tightening threaded fasteners to a specified torque. Its dual N·m and kgf·cm scales cover 5–25 N·m and 51–255 kgf·cm, with fine 0.1 N·m increments for low-torque assembly work. The exact model measures 280 mm overall and weighs 595 g.

| Brand | KING TONY |
|---|---|
| Manufacturer model | 34323-1A |
| Square drive | 3/8 inch |
| Torque range | 5–25 N·m / 51–255 kgf·cm |
| Scale increments | 0.1 N·m / 1 kgf·cm |
| Ratchet teeth | 24 |
| Overall length | 280 mm |
| Weight | 595 g |
| Torque tolerance | ±4% clockwise |
| Manufacturer-stated standards | DIN ISO 6789:2017; ASME B107.300-2010 |
| Selling unit | One wrench |
Follow the manufacturer’s operating instructions: stop applying force when the preset torque produces the click signal, and return the setting to the lowest scale value after use. Do not use this precision tool as a breaker bar, hammer or lever. Professional recalibration is recommended every 12 months or after 5,000 uses.
