KING TONY 34223-1C 1/4-inch 24-tooth Dual-scale Torque Wrench, 55–250 in·lb

Brand: KING TONY
Manufacturer model number: 34223-1C
Order code: Y8E4GWI
MOQ: 1 支
Supply status: In Stock
Selected configuration: Standard item

$4,000.00/ 支~~Was $5,710.00~~-30%

Payment Options: FPSFlexible PaymentBank Transfer
Buyer Protection: Genuine ProductsCompany InvoiceAfter-sales Service

Sold by

JACO自營旗艦店

自營

The KING TONY 34223-1C is an adjustable torque wrench with a 1/4-inch square drive and a 24-tooth ratchet. Its dual scales cover 55–250 in·lb and 6.2–28.2 N·m, allowing the setting to be selected against the fastener specification. This listing is for one wrench.

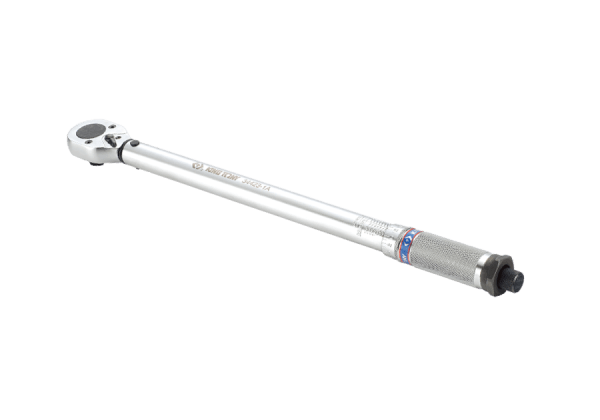

Same-design KING TONY 34223-1A representative photo: 1/4-inch square drive and 280 mm overall length. The pictured model marking and scales are 34223-1A (5–25 N·m / 51–255 kgf·cm), not this listing’s scales. This listing is 34223-1C, 1/4-inch drive, 280 mm, 55–250 in·lb / 6.2–28.2 N·m. Sold as one wrench.

Features and use

Dual scales have increments of 1 in·lb and 0.17 N·m.
The 24-tooth ratchet supports clockwise and counterclockwise operation. The published ±4% torque tolerance applies clockwise only; no equivalent counterclockwise measuring accuracy is claimed.
Unlock the end adjuster, rotate the handle to set the torque, then lock the setting. Stop applying force when the wrench clicks.
Treat it as a precision instrument, not a general lever. Stay within the scale range, reset to the minimum setting after use, and store dry.
The manufacturer recommends calibration by a qualified facility every 12 months or 5,000 uses.

Specifications

Brand	KING TONY
Model	34223-1C
Square drive	1/4 inch
Ratchet teeth	24
Imperial torque range	55–250 in·lb
Imperial scale increment	1 in·lb
Metric torque range	6.2–28.2 N·m
Metric scale increment	0.17 N·m
Overall length	280 mm
Weight	595 g
Torque tolerance	±4% (clockwise)
Standards	DIN ISO 6789; ASME B107.300-2010
Selling unit	One wrench

What’s included

34223-1C torque wrench ×1
