KING TONY 333532S 1 in. 6-Point Standard Socket, 3/8 in. Drive

Brand: KING TONY
Manufacturer model number: 333532S
Order code: Y8E5GPT
MOQ: 1 顆
Supply status: In Stock
Selected configuration: Standard item

$210.00/ 顆~~Was $300.00~~-30%

Payment Options: FPSFlexible PaymentBank Transfer
Buyer Protection: Genuine ProductsCompany InvoiceAfter-sales Service

Sold by

JACO自營旗艦店

自營

The KING TONY 333532S is a 1-inch, six-point standard socket with a 3/8-inch square drive. Pair it with a matching manual ratchet or drive tool for the corresponding hexagonal fastener size. The drive size and fastener opening are separate dimensions, so check both before selecting the socket.

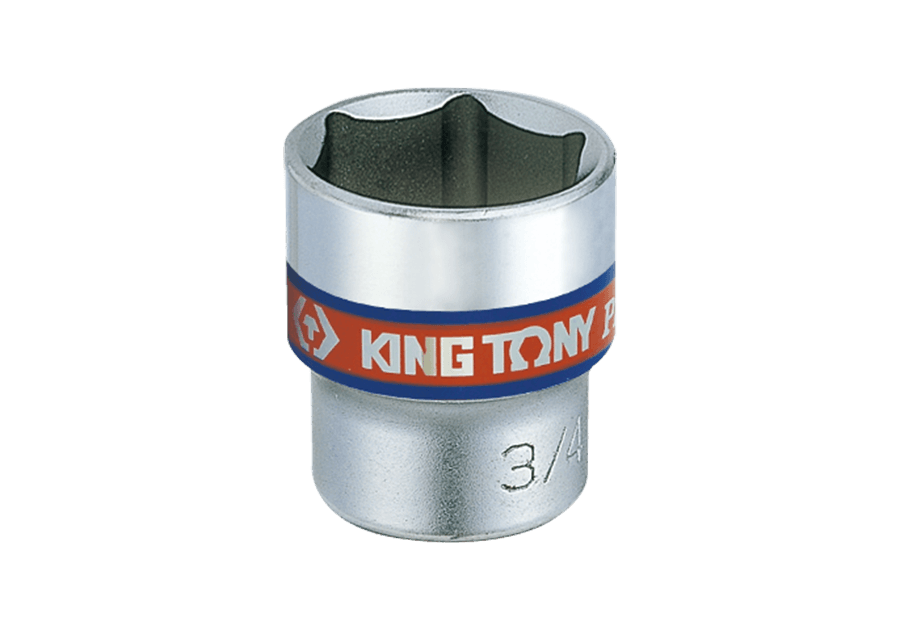

Manufacturer 3335S-series representative socket marked 3/4 inch; this 333532S listing is the 1-inch six-point standard socket with 3/8-inch square drive, sold individually — This is the manufacturer’s representative 3335S-series image, with a visible 3/4-inch marking, not an exact photograph of this 1-inch size. This listing is model 333532S: 1-inch six-point opening, 3/8-inch square drive, sold individually.

Features

1-inch SAE six-point opening in the standard-length 3335S range.
Chrome vanadium alloy steel with a polished, chrome-plated finish.
Four ball-retaining grooves for compatible drive tools.
Specified to ANSI/ASME B107.1.

Specifications

Brand	KING TONY
Model	333532S
Type	SAE six-point standard socket
Square drive	3/8 inch
Socket opening	1 inch
Material	Chrome vanadium alloy steel
Finish	Polished, chrome plated
Retention	4 ball-retaining grooves
D1 opening-end outside diameter	33.8 mm
D2 drive-end outside diameter	26.0 mm
l recess depth (see section diagram)	17.0 mm
L overall length	34 mm
Weight	101 g
Standard	ANSI/ASME B107.1
Selling unit	One socket

Manufacturer 3335S-series socket section diagram identifying D1, D2, l and L; consult the specification table for 333532S dimensions — Manufacturer 3335S-series section diagram, not a product photograph. The D1, D2, l and L values for 333532S are listed in the specification table above.

Package contents

333532S 1-inch six-point standard socket ×1
