KING TONY 333530S 3/8-inch Drive 15/16-inch 6-point Standard Socket

Brand: KING TONY
Manufacturer model number: 333530S
Order code: Y8EH1Q2
MOQ: 1 顆
Supply status: In Stock
Selected configuration: Standard item

$190.00/ 顆~~Was $270.00~~-30%

Payment Options: FPSFlexible PaymentBank Transfer
Buyer Protection: Genuine ProductsCompany InvoiceAfter-sales Service

Sold by

JACO自營旗艦店

自營

The KING TONY 333530S is a 15/16-inch six-point standard socket with a 3/8-inch square drive. Its 34 mm overall length and imperial opening make the size and drive selection explicit. This listing is for one socket, not a socket set.

Features

Six-point imperial opening in the exact 15/16-inch size.
Chrome vanadium alloy steel with a polished chrome-plated finish.
Four detent grooves for square-drive retention.
Manufacturer specification references ANSI/ASME B107.1.

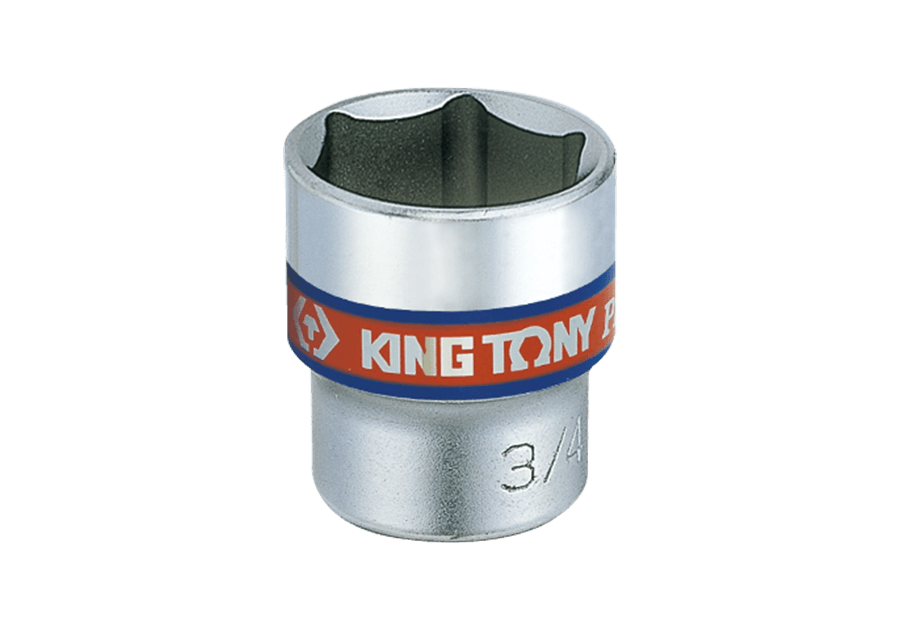

Manufacturer 3335S-series six-point standard-socket representative photograph marked 3/4 inch; this 333530S listing is 15/16 inch with 3/8-inch drive, sold individually. — Manufacturer's 3335S-series representative photograph; the pictured socket is marked 3/4 inch. This listing is the 333530S 15/16-inch socket with 3/8-inch drive, sold individually. The photograph does not claim to show the exact listed size.

Specifications

Brand	KING TONY
Model	333530S
Square drive	3/8 inch
Socket size	15/16 inch, imperial
Profile	6-point
Configuration	Standard socket
Overall length L	34 mm
D1	31.8 mm
D2	26.0 mm
Dimension ℓ (see drawing)	17.0 mm
Weight	86 g
Material	Chrome vanadium alloy steel
Finish	Polished, chrome plated
Retention design	Four detent grooves
Standard	ANSI/ASME B107.1
Selling unit	One socket

Manufacturer 3335S-series socket dimensional diagram with D1, D2, ℓ and L; actual 333530S dimensions are listed in the specification table. — Manufacturer's standard-socket dimensional diagram. Refer to the table for this 333530S model: D1 31.8 mm, D2 26.0 mm, ℓ 17.0 mm and L 34 mm.

What's in the Box

333530S 15/16-inch six-point standard socket ×1
