Name: KING TONY 333528S 3/8-in Drive 7/8-in 6-Point Standard Socket
Brand: KING TONY
SKU: KT-333528S
Price: 170 TWD
Availability: InStock

The KING TONY 333528S is the 7/8-inch imperial 6-point standard socket in the 3335S series. It has a 3/8-inch square drive and an overall length of 32 mm. Check both the fastener size and the drive size when selecting a compatible tool. This listing is for one socket.

Features

7/8-inch 6-point opening with a 3/8-inch square drive; these are separate dimensions.
Chrome vanadium alloy steel with a polished, chrome-plated finish.
Four ball grooves for positioning with a compatible square-drive tool.
The manufacturer specifies ANSI/ASME B107.1.

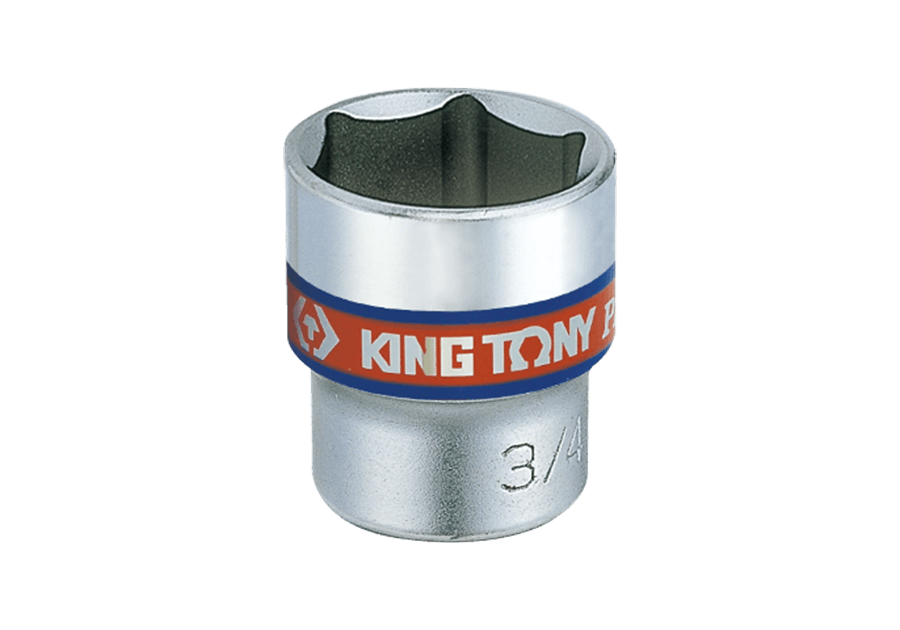

KING TONY 3335S-series representative 6-point socket marked 3/4 inch; listed 333528S is 7/8 inch and sold individually — Manufacturer-supplied 3335S-series representative photograph. The pictured socket is marked 3/4 inch, not the 7/8-inch socket sold here. This listing is model 333528S with a 7/8-inch opening, sold individually.

KING TONY 3335S-series dimensional diagram showing D1, D2, ℓ and L; see the table for model 333528S values — 3335S-series dimensional illustration, not a product photograph or a scale drawing. The D1, D2, ℓ and L values for this model are listed below.

Specifications

Brand	KING TONY
Manufacturer model	333528S
Series	3335S
Type	Imperial 6-point standard socket
Square drive	3/8 inch
Socket opening	7/8 inch
Opening-end outside diameter D1	29.6 mm
Drive-end outside diameter D2	26.0 mm
Opening depth ℓ	15.0 mm
Overall length L	32 mm
Weight	89 g
Material	Chrome vanadium alloy steel
Finish	Polished, chrome plated
Manufacturer-specified standard	ANSI/ASME B107.1
Selling unit	顆 (one socket)

What's in the Box

KING TONY 333528S 7/8-inch 6-point standard socket × 1

Features

7/8-inch 6-point opening with a 3/8-inch square drive; these are separate dimensions.
Chrome vanadium alloy steel with a polished, chrome-plated finish.
Four ball grooves for positioning with a compatible square-drive tool.
The manufacturer specifies ANSI/ASME B107.1.

Specifications

Brand	KING TONY
Manufacturer model	333528S
Series	3335S
Type	Imperial 6-point standard socket
Square drive	3/8 inch
Socket opening	7/8 inch
Opening-end outside diameter D1	29.6 mm
Drive-end outside diameter D2	26.0 mm
Opening depth ℓ	15.0 mm
Overall length L	32 mm
Weight	89 g
Material	Chrome vanadium alloy steel
Finish	Polished, chrome plated
Manufacturer-specified standard	ANSI/ASME B107.1
Selling unit	顆 (one socket)

What's in the Box

KING TONY 333528S 7/8-inch 6-point standard socket × 1

JACO自營旗艦店

KING TONY 333528S 3/8-in Drive 7/8-in 6-Point Standard Socket

JACO自營旗艦店

Reviews & Q&A

Similar products

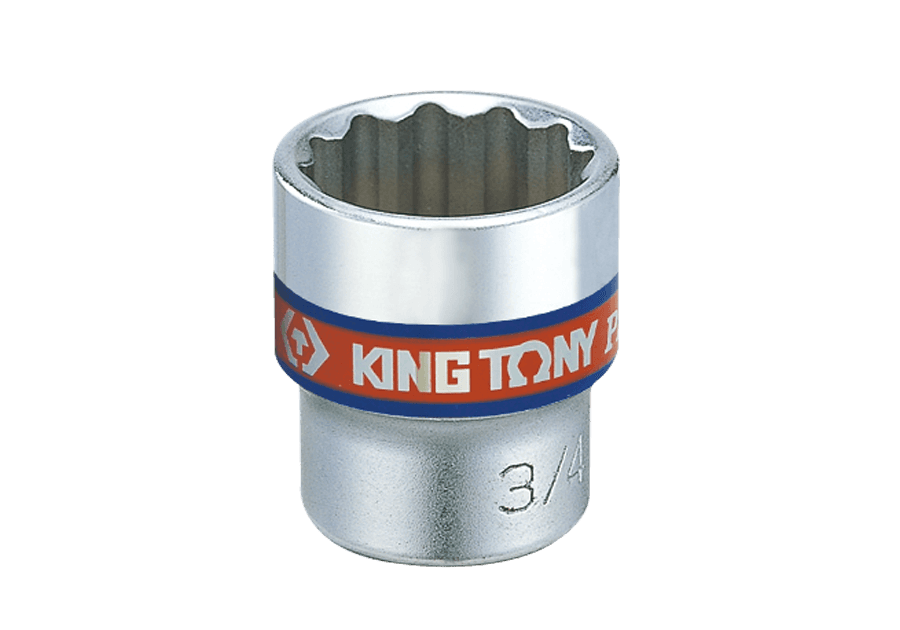

KING TONY 333028S 3/8-Inch Drive 7/8-Inch 12-Point Standard Socket
