Name: KING TONY 333524M 3/8-in Drive 24 mm 6-Point Standard Socket
Brand: KING TONY
SKU: KT-333524M
Price: 180 TWD
Availability: InStock

The KING TONY 333524M is a 24 mm metric, 6-point standard socket with a 3/8-inch square drive. Pair it with a matching hand ratchet or drive tool and confirm the fastener size before use. Its overall length is 32 mm. This listing is for one socket, not a multi-size socket set.

Features

24 mm metric 6-point opening with a 3/8-inch square drive for matching hand tools.
Chrome vanadium alloy steel with a polished, chrome-plated finish.
Four ball retaining grooves. The manufacturer specifies DIN 3124 and ISO 2725-1.

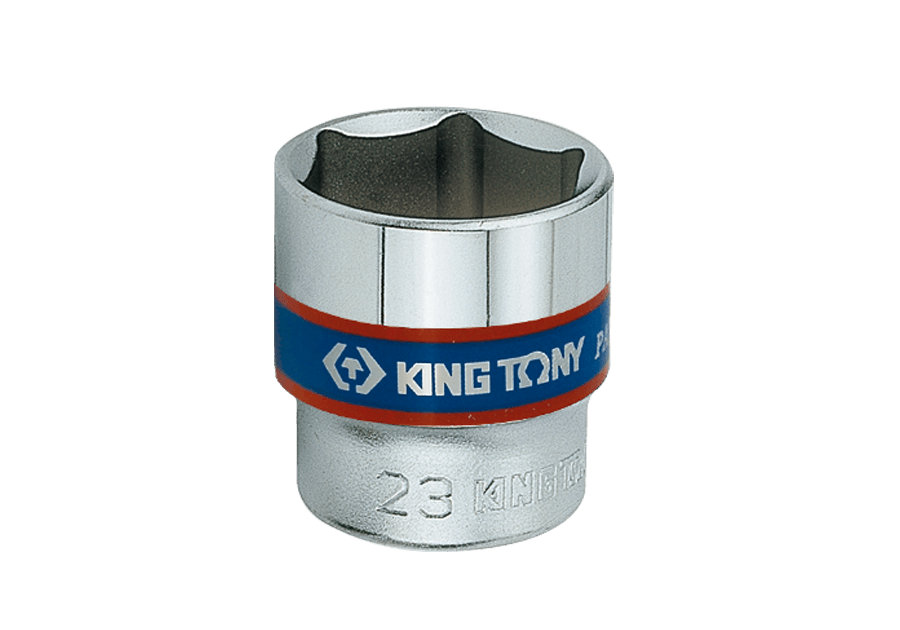

KING TONY 3335M-series representative socket photo marked 23; this 333524M listing is the 24 mm socket, sold individually — Manufacturer-supplied 3335M-series representative image. The photographed socket is marked 23, not the exact 24 mm item. This listing is model 333524M, size 24 mm, sold as one socket.

Specifications

Brand	KING TONY
Model	333524M
Square drive	3/8 in
Socket opening	24 mm, metric, 6-point
Style	Standard socket
Socket-end outside diameter D1	31.8 mm
Drive-end outside diameter D2	26.0 mm
Socket depth l	17.0 mm
Overall length L	32 mm
Weight	94 g
Material	Chrome vanadium alloy steel
Finish	Polished and chrome plated
Retention	4 ball retaining grooves
Standards	DIN 3124; ISO 2725-1
Sale unit	1 socket

KING TONY 3335M-series cross-section dimension drawing labeled D1, D2, l and L; see the table for model 333524M dimensions — Manufacturer series dimension diagram, not a product photograph. For model 333524M: D1 31.8 mm, D2 26.0 mm, l 17.0 mm and L 32 mm.

What's in the Box

KING TONY 333524M 24 mm 6-point standard socket ×1

Sold individually. Other socket sizes and separately purchased drive tools are not included.

Features

24 mm metric 6-point opening with a 3/8-inch square drive for matching hand tools.
Chrome vanadium alloy steel with a polished, chrome-plated finish.
Four ball retaining grooves. The manufacturer specifies DIN 3124 and ISO 2725-1.

Specifications

Brand	KING TONY
Model	333524M
Square drive	3/8 in
Socket opening	24 mm, metric, 6-point
Style	Standard socket
Socket-end outside diameter D1	31.8 mm
Drive-end outside diameter D2	26.0 mm
Socket depth l	17.0 mm
Overall length L	32 mm
Weight	94 g
Material	Chrome vanadium alloy steel
Finish	Polished and chrome plated
Retention	4 ball retaining grooves
Standards	DIN 3124; ISO 2725-1
Sale unit	1 socket

What's in the Box

KING TONY 333524M 24 mm 6-point standard socket ×1

Sold individually. Other socket sizes and separately purchased drive tools are not included.
