KING TONY 333522M 3/8-inch Drive 22 mm 6-Point Standard Socket

Brand: KING TONY
Manufacturer model number: 333522M
Order code: Y8EZVJW
MOQ: 1 顆
Supply status: In Stock
Selected configuration: Standard item

$170.00/ 顆~~Was $240.00~~-29%

Payment Options: FPSFlexible PaymentBank Transfer
Buyer Protection: Genuine ProductsCompany InvoiceAfter-sales Service

Sold by

JACO自營旗艦店

自營

The KING TONY 333522M is a 22 mm metric 6-point standard socket with a 3/8-inch square drive. It works with compatible manual ratchets and socket tools for matching hexagonal nuts and bolt heads. Overall length is 32 mm; the price is for one individual socket.

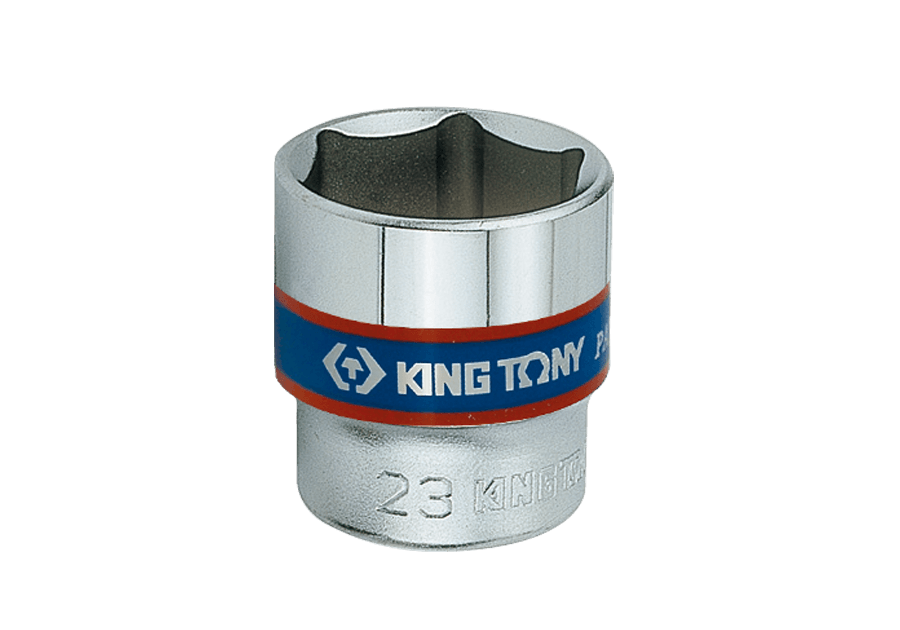

KING TONY 3335M-series representative socket photo marked 23 mm; this 333522M listing is the 22 mm 3/8-inch drive 6-point standard socket, sold individually — Manufacturer-supplied KING TONY 3335M-series representative photograph: the pictured socket is visibly marked 23 mm, not an exact photograph of this 22 mm model. This listing is model 333522M, 22 mm, with a 3/8-inch square drive, sold individually.

Features

22 mm metric 6-point opening with a 3/8-inch square drive.
Chrome vanadium alloy steel with a polished, chrome-plated finish.
Four ball-retention grooves for compatible manual square-drive tools.
The manufacturer lists DIN 3124 and ISO 2725-1.

KING TONY 3335M-series sectional dimension diagram showing D1, D2, l and L; exact 333522M dimensions are listed in the specification table — Manufacturer 3335M-series sectional dimension drawing, not a product photograph. D1, D2, l and L refer to the exact 333522M values in the specification table below; the drawing does not depict a kit.

Specifications

Brand	KING TONY
Manufacturer model	333522M
Square drive	3/8 inch
Socket size	22 mm, metric, 6-point
Profile	Standard socket
Socket-end outer diameter D1	29.7 mm
Drive-end outer diameter D2	26.0 mm
Socket depth l	15.0 mm
Overall length L	32 mm
Weight	89 g
Material and finish	Chrome vanadium alloy steel; polished and chrome plated
Retention design	Four ball-retention grooves
Standards stated by manufacturer	DIN 3124; ISO 2725-1
Pricing unit	One individual 333522M socket (顆)

Contents of one priced unit

333522M 22 mm metric 6-point standard socket × 1
