KING TONY 333520S 3/8-Inch Drive 5/8-Inch 6-Point Standard Socket

Brand: KING TONY
Manufacturer model number: 333520S
Order code: Y8EZTVC
MOQ: 1 顆
Supply status: In Stock
Selected configuration: Standard item

$110.00/ 顆~~Was $160.00~~-31%

Payment Options: FPSFlexible PaymentBank Transfer
Buyer Protection: Genuine ProductsCompany InvoiceAfter-sales Service

Sold by

JACO自營旗艦店

自營

KING TONY 333520S is a standard-length imperial six-point socket with a 5/8-inch opening and a 3/8-inch square drive. Its overall length is 29 mm. Sold as one individual socket, it allows you to select the opening size to match the hex nut or bolt head.

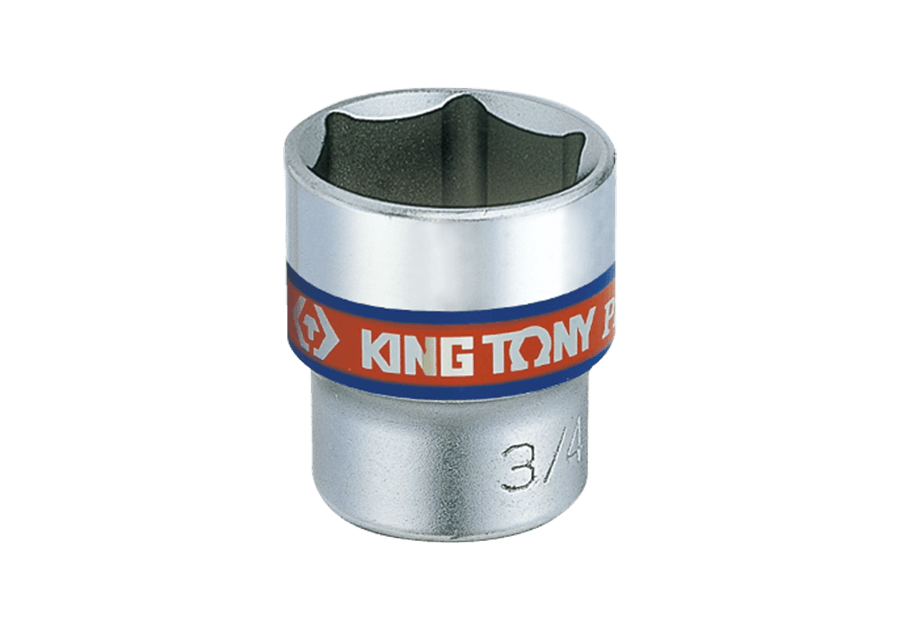

Manufacturer 3335S-series six-point standard socket image marked 3/4 inch; this 333520S listing is 5/8 inch with a 3/8-inch drive, sold individually — Manufacturer's 3335S-series representative photograph: the pictured socket is marked 3/4 inch, not this exact size. This 333520S listing is the 5/8-inch socket with a 3/8-inch square drive, sold individually.

Features

5/8-inch six-point opening for matching imperial hex fasteners, with a 3/8-inch square-drive connection.
Chrome vanadium alloy steel construction with a polished, chrome-plated finish.
Four ball-detent grooves, with the manufacturer listing ANSI/ASME B107.1 as the applicable standard.
Standard 29 mm length; the diameter and internal-length measurements below support size comparison.

Specifications

Brand	KING TONY
Model	333520S
Square drive	3/8 inch
Socket opening	5/8 inch
Profile	6-point, imperial
Configuration	Standard-length socket
D1 diameter	21.8 mm
D2 diameter	20.0 mm
ell (internal hex-end length, per manufacturer diagram)	11.0 mm
L overall length	29 mm
Weight	43 g
Material	Chrome vanadium alloy steel
Finish	Polished and chrome plated
Retention design	Four ball-detent grooves
Standard	ANSI/ASME B107.1
Unit of sale	One socket (workbook UOM: 顆)

Manufacturer 3335S-series socket sectional dimension diagram labelled D1, D2, ell and L; consult this page for the 333520S dimensions — Manufacturer's 3335S-series sectional diagram, not a photograph of this socket. For 333520S: D1 = 21.8 mm, D2 = 20.0 mm, ell = 11.0 mm and L = 29 mm. The diagram is illustrative; use the specification values rather than scaling the drawing.

What's in the Box

KING TONY 333520S 5/8-inch six-point standard socket ×1

One socket per priced unit; ratchet and other drive tools are not included.
