KING TONY 333520M 3/8-inch Drive 20mm 6-Point Standard Socket

Brand: KING TONY
Manufacturer model number: 333520M
Order code: Y8EOVGW
MOQ: 1 顆
Supply status: In Stock
Selected configuration: Standard item

$150.00/ 顆~~Was $210.00~~-29%

Payment Options: FPSFlexible PaymentBank Transfer
Buyer Protection: Genuine ProductsCompany InvoiceAfter-sales Service

Sold by

JACO自營旗艦店

自營

The KING TONY 333520M is the 20 mm metric six-point standard socket in the 3335M family. Its 3/8-inch square drive connects to a matching manual ratchet handle or extension for working on 20 mm hexagonal nuts and bolt heads. Overall length is 32 mm. This listing is for one socket, not a socket set.

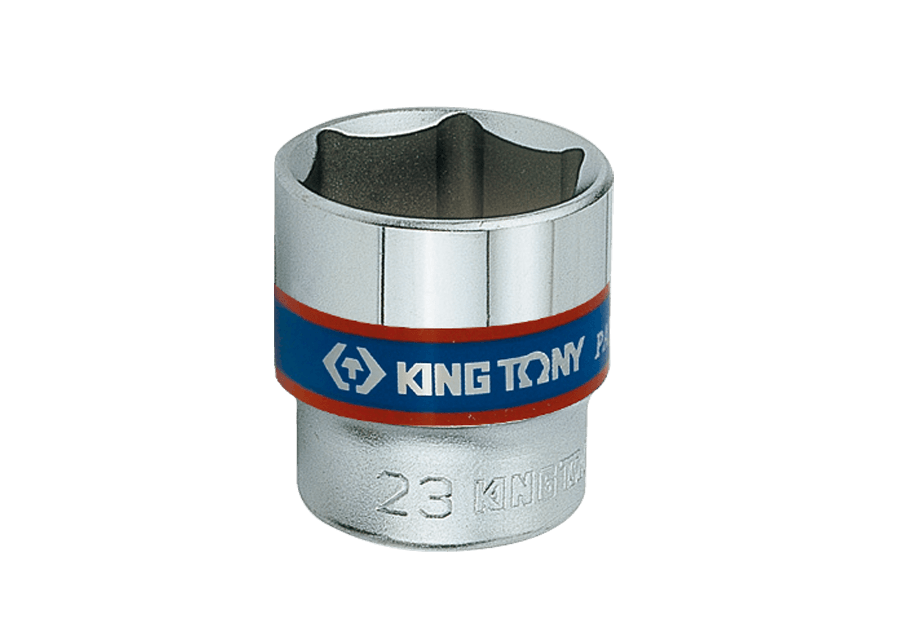

Manufacturer 3335M-series representative six-point socket photo marked 23 mm; this 333520M listing is a 20 mm standard socket with 3/8-inch square drive, sold individually. — Manufacturer-supplied 3335M-series representative photograph. The pictured socket is marked 23 mm, not the exact size sold here. This 333520M listing is the 20 mm socket with 3/8-inch square drive, sold individually.

Features

Chrome vanadium alloy steel with a polished, chrome-plated surface.
3/8-inch square drive with four ball-retention grooves.
Metric six-point standard profile for manual work on 20 mm hexagonal fasteners.
Manufacturer lists DIN 3124 and ISO 2725-1.

Specifications

Brand / model	KING TONY / 333520M
Family / type	3335M / metric 6-point standard socket
Square drive	3/8 inch
Socket opening	20 mm
Outside diameter D1	27.1 mm
Outside diameter D2	25.0 mm
Recess depth ℓ	13.0 mm
Overall length L	32 mm
Weight	87 g
Material / finish	Chrome vanadium alloy steel / polished, chrome plated
Manufacturer-listed standards	DIN 3124, ISO 2725-1
Sales unit	One socket (顆)

Manufacturer 3335M-series socket cross-section dimension diagram showing D1, D2, recess depth ell and overall length L; 333520M values are 27.1, 25.0, 13.0 and 32 mm. — Manufacturer's 3335M-series dimension-symbol diagram, not a product photograph. For model 333520M, D1 is 27.1 mm, D2 is 25.0 mm, recess depth ℓ is 13.0 mm and overall length L is 32 mm.

What's in the Box

KING TONY 333520M 20 mm 6-point standard socket ×1

A single socket only. Ratchet handles and extension bars are not included in this individually sold item.
