Name: KING TONY 333519M 3/8 in Drive 19 mm 6-Point Standard Socket
Brand: KING TONY
SKU: KT-333519M
Price: 130 TWD
Availability: InStock

The KING TONY 333519M is a 19 mm metric six-point standard socket with a 3/8-inch square drive. Its hexagonal opening fits fasteners with the matching across-flats size, for maintenance and assembly with a compatible hand-tool drive. This listing is for one socket, not a multi-size socket set.

Features

19 mm six-point opening: check the fastener across-flats size before use.
3/8-inch square drive with four ball-retention grooves.
Chrome-vanadium alloy steel with a polished, chrome-plated finish.
29 mm standard-length format; the manufacturer lists DIN 3124 and ISO 2725-1 for the series.

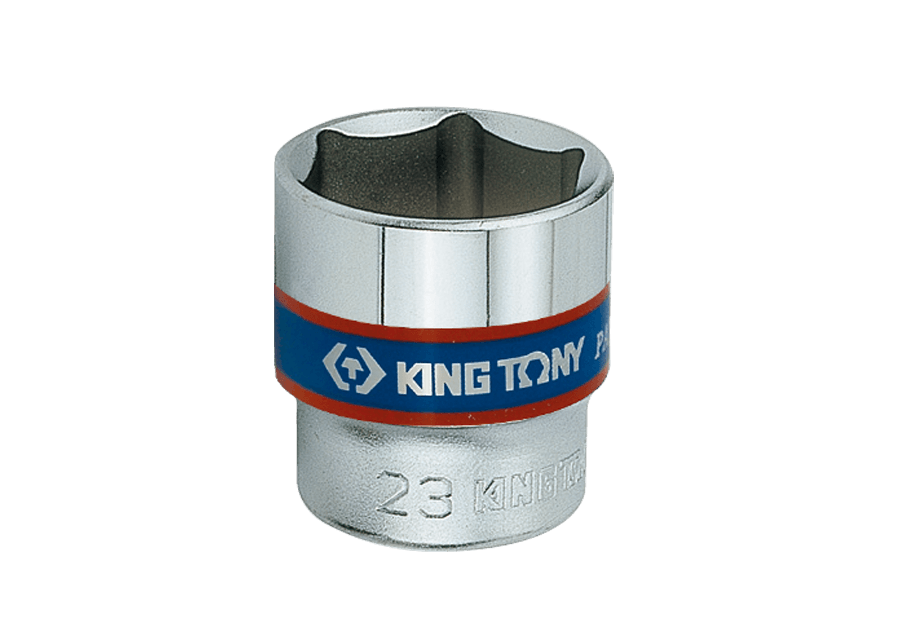

KING TONY 3335M-series representative six-point standard socket photo marked 23; this 333519M listing is 19 mm, sold individually. — Manufacturer-supplied 3335M-series representative photo: the pictured socket is marked 23, not the 19 mm item sold here. This listing is model 333519M, 19 mm, sold as one individual socket.

KING TONY 3335M socket cross-section diagram; 333519M has D1 25.8 mm, D2 21.0 mm, l 13.0 mm and L 29 mm. — Manufacturer 3335M-series cross-section dimension diagram, not a physical product photograph. Refer to the 333519M specification table for this item’s D1, D2, l and L values.

Specifications

Brand	KING TONY
Model	333519M
Drive	3/8-inch square drive
Metric across-flats size	19 mm
Opening	6-point hexagonal
Format	Standard length
Working-end outside diameter D1	25.8 mm
Drive-end outside diameter D2	21.0 mm
Hexagonal opening depth l	13.0 mm
Overall length L	29 mm
Weight	53 g
Material and finish	Chrome-vanadium alloy steel; polished and chrome plated
Retention design	Four ball-retention grooves
Manufacturer-listed standards	DIN 3124; ISO 2725-1
Selling unit	One individual socket

What's in the Box

333519M 19 mm six-point standard socket ×1

Features

19 mm six-point opening: check the fastener across-flats size before use.
3/8-inch square drive with four ball-retention grooves.
Chrome-vanadium alloy steel with a polished, chrome-plated finish.
29 mm standard-length format; the manufacturer lists DIN 3124 and ISO 2725-1 for the series.

Specifications

Brand	KING TONY
Model	333519M
Drive	3/8-inch square drive
Metric across-flats size	19 mm
Opening	6-point hexagonal
Format	Standard length
Working-end outside diameter D1	25.8 mm
Drive-end outside diameter D2	21.0 mm
Hexagonal opening depth l	13.0 mm
Overall length L	29 mm
Weight	53 g
Material and finish	Chrome-vanadium alloy steel; polished and chrome plated
Retention design	Four ball-retention grooves
Manufacturer-listed standards	DIN 3124; ISO 2725-1
Selling unit	One individual socket

What's in the Box

333519M 19 mm six-point standard socket ×1
