KING TONY 333518S 3/8-inch Drive 9/16-inch 6-Point Standard Socket

Brand: KING TONY
Manufacturer model number: 333518S
Order code: Y8EFLZ9
MOQ: 1 顆
Supply status: In Stock
Selected configuration: Standard item

$100.00/ 顆~~Was $140.00~~-29%

Payment Options: FPSFlexible PaymentBank Transfer
Buyer Protection: Genuine ProductsCompany InvoiceAfter-sales Service

Sold by

JACO自營旗艦店

自營

KING TONY 333518S is an individual 9/16-inch six-point standard socket with a 3/8-inch square drive. Its 29 mm overall length provides a standard-length format for matching hand socket tools. Check both the fastener size and drive size when selecting your socket.

Features and design

9/16-inch SAE opening with a six-point profile.
Chrome vanadium alloy steel with a polished, chrome-plated finish.
Manufacturer specifies four ball-retaining grooves at the drive connection.
Manufacturer lists ANSI/ASME B107.1.

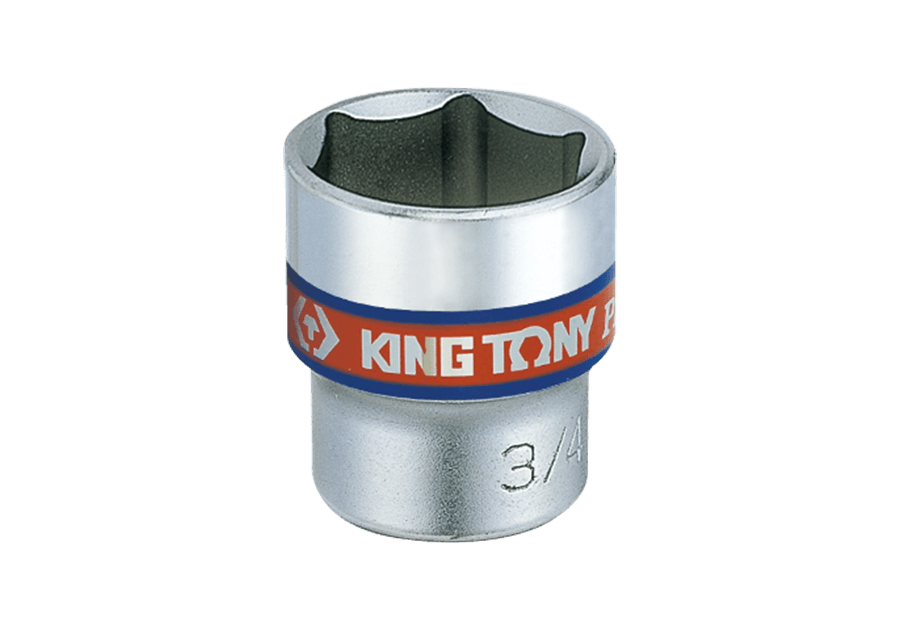

Manufacturer 3335S-series six-point standard socket image marked 3/4 inch; this 333518S listing is 9/16 inch with 3/8 inch drive, sold individually — Manufacturer's 3335S-series representative image, visibly marked 3/4 inch; this is not an exact-size photograph of the 9/16-inch item. This 333518S listing is the 9/16-inch socket with a 3/8-inch drive, sold individually.

Manufacturer 3335S-series dimensional diagram; 333518S has D1 19.7 mm, D2 18.0 mm, l 11.0 mm and L 29 mm; not a product photograph — Manufacturer 3335S-series dimensional diagram, not a product photograph and not to scale. The D1, D2, l and L values for this 333518S item are listed in the specification table.

Specifications

Brand / model	KING TONY 333518S
Type	Six-point inch standard socket
Square drive	3/8 inch
Socket size	9/16 inch
D1	19.7 mm
D2	18.0 mm
l	11.0 mm
Overall length L	29 mm
Material	Chrome vanadium alloy steel
Finish	Polished and chrome plated
Standard	ANSI/ASME B107.1
Sale unit	One individual socket (顆)

What's in the Box

333518S 9/16-inch six-point standard socket ×1 (3/8-inch drive)
