Name: KING TONY 333518M 3/8 in. Drive 18 mm 6-Point Standard Socket
Brand: KING TONY
SKU: KT-333518M
Price: 130 TWD
Availability: InStock

The KING TONY 333518M is an 18 mm metric, six-point standard socket with a 3/8-inch square drive for matching hand-operated socket tools. This 3335M-series size has a 29 mm overall length. Choose it by the fastener across-flats size. The price is for one socket, not an 18/19 mm two-size set.

Features

18 mm six-point opening for metric hexagonal nuts and bolts.
Chrome vanadium alloy steel with a polished, chrome-plated finish.
3/8-inch square drive with four ball-retention grooves.
Manufacturer specifies DIN 3124 and ISO 2725-1.

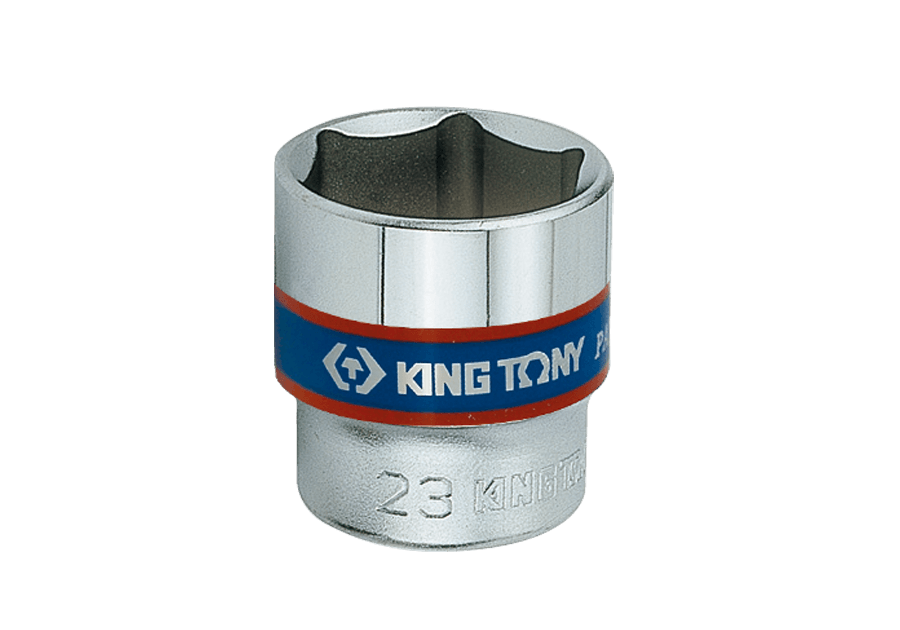

KING TONY 3335M-series representative 6-point standard socket engraved 23; this 333518M listing is 18 mm with a 3/8-inch drive, sold individually — Manufacturer-supplied 3335M-series representative photograph. The pictured socket is engraved 23; this 333518M listing is the 18 mm size, sold individually, not the pictured 23 mm model.

Specifications

Model	333518M
Series	3335M
Type	Metric 6-point standard socket
Square drive	3/8 in. (9.525 mm)
Across-flats size	18 mm
D1 outside diameter	24.7 mm
D2 outside diameter	21.0 mm
ℓ opening depth	13.0 mm
L overall length	29 mm
Weight	51 g
Material	Chrome vanadium alloy steel
Finish	Polished and chrome plated
Standards specified	DIN 3124; ISO 2725-1
Sold as	1 socket

3335M-series socket sectional drawing showing D1, D2, ℓ and L; see the specification table for actual 333518M dimensions — 3335M-series sectional dimension-position diagram, not a product photograph. Actual 333518M dimensions are D1 24.7 mm, D2 21.0 mm, ℓ 13.0 mm and L 29 mm.

What's in the Box

333518M 18 mm metric 6-point standard socket × 1

Features

18 mm six-point opening for metric hexagonal nuts and bolts.
Chrome vanadium alloy steel with a polished, chrome-plated finish.
3/8-inch square drive with four ball-retention grooves.
Manufacturer specifies DIN 3124 and ISO 2725-1.

Specifications

Model	333518M
Series	3335M
Type	Metric 6-point standard socket
Square drive	3/8 in. (9.525 mm)
Across-flats size	18 mm
D1 outside diameter	24.7 mm
D2 outside diameter	21.0 mm
ℓ opening depth	13.0 mm
L overall length	29 mm
Weight	51 g
Material	Chrome vanadium alloy steel
Finish	Polished and chrome plated
Standards specified	DIN 3124; ISO 2725-1
Sold as	1 socket

What's in the Box

333518M 18 mm metric 6-point standard socket × 1
