Name: KING TONY 333517M 3/8-inch Drive 17 mm 6-Point Standard Socket
Brand: KING TONY
SKU: KT-333517M
Price: 120 TWD
Availability: InStock

KING TONY 333517M is a 17 mm, six-point metric standard socket with a 3/8-inch square drive. Its 29 mm overall length suits use with ratchets or extensions having the matching square drive. This listing is sold as one socket.

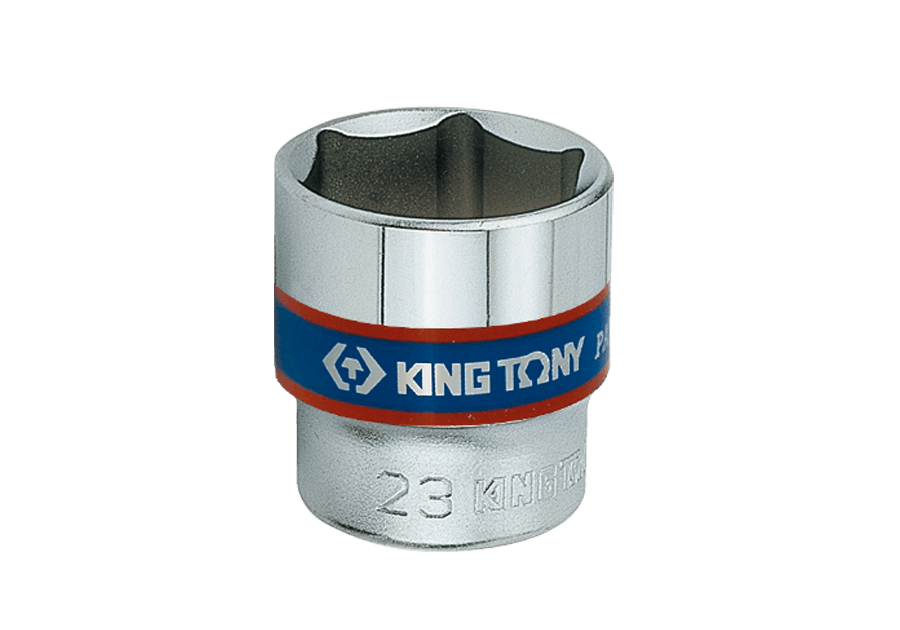

Manufacturer 3335M-series six-point standard socket image marked 23 mm; this 333517M listing is 17 mm, sold as one socket — Manufacturer-supplied 3335M-series representative photograph; the pictured size marking is 23 mm, not the size supplied by this listing. Model 333517M is the 17 mm socket, sold individually.

Features

Six-point metric opening in the specified 17 mm size.
Chrome vanadium alloy steel with a polished, chrome-plated finish.
Four ball-retaining grooves at the drive end.
The manufacturer lists DIN 3124 and ISO 2725-1.

Manufacturer 3335M-series socket cross-section diagram identifying D1, D2, ell and L; exact 333517M dimensions are listed in the specification table — 3335M-series dimension schematic, not a product photograph. For 333517M: D1 23.8 mm, D2 20.0 mm, ℓ 11.0 mm and L 29 mm. Refer to the model-specific table for values.

Specifications

Brand	KING TONY
Manufacturer model	333517M
Series	3335M
Square drive	3/8 inch
Socket size	17 mm, metric, 6-point
Profile	Standard socket
Socket-end diameter D1	23.8 mm
Drive-end diameter D2	20.0 mm
Socket depth ℓ	11.0 mm
Overall length L	29 mm
Weight	50 g
Material	Chrome vanadium alloy steel
Finish	Polished and chrome plated
Retention	Four ball-retaining grooves
Standards	DIN 3124, ISO 2725-1
Selling unit	One socket (顆)

Package contents

333517M 17 mm six-point metric standard socket ×1

Features

Six-point metric opening in the specified 17 mm size.
Chrome vanadium alloy steel with a polished, chrome-plated finish.
Four ball-retaining grooves at the drive end.
The manufacturer lists DIN 3124 and ISO 2725-1.

Specifications

Brand	KING TONY
Manufacturer model	333517M
Series	3335M
Square drive	3/8 inch
Socket size	17 mm, metric, 6-point
Profile	Standard socket
Socket-end diameter D1	23.8 mm
Drive-end diameter D2	20.0 mm
Socket depth ℓ	11.0 mm
Overall length L	29 mm
Weight	50 g
Material	Chrome vanadium alloy steel
Finish	Polished and chrome plated
Retention	Four ball-retaining grooves
Standards	DIN 3124, ISO 2725-1
Selling unit	One socket (顆)

Package contents

333517M 17 mm six-point metric standard socket ×1
