KING TONY 333516S 3/8-inch Drive 1/2-inch 6-Point Standard Socket

Brand: KING TONY
Manufacturer model number: 333516S
Order code: Y8EPOHR
MOQ: 1 顆
Supply status: In Stock
Selected configuration: Standard item

$100.00/ 顆~~Was $140.00~~-29%

Payment Options: FPSFlexible PaymentBank Transfer
Buyer Protection: Genuine ProductsCompany InvoiceAfter-sales Service

Sold by

JACO自營旗艦店

自營

The KING TONY 333516S is a standard-length SAE 6-point socket with a 1/2-inch hex opening and a 3/8-inch square drive. Its overall length is 27 mm. Check the square-drive size separately from the fastener size when pairing it with a ratchet or extension. This listing is for one socket.

Features

6-point opening for 1/2-inch hex nuts and bolt heads.
Chrome vanadium alloy steel with a polished, chrome-plated finish.
Four ball-retaining grooves for use with a compatible square-drive tool.
Manufacturer specifies ANSI/ASME B107.1.

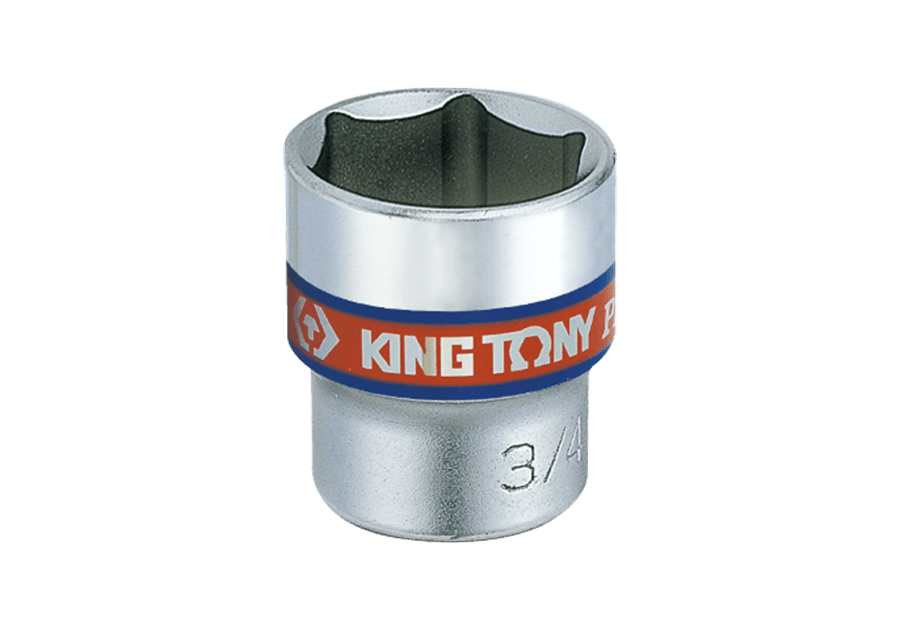

Manufacturer KING TONY 3335S-series standard 6-point socket image engraved 3/4; listing 333516S has a 1/2-inch opening and 3/8-inch drive, sold individually — Manufacturer-supplied KING TONY 3335S-series representative photo; the pictured socket is engraved 3/4. The actual 333516S sold here has a 1/2-inch opening and a 3/8-inch drive, sold as one socket. This is not an exact-size product photograph.

Manufacturer KING TONY 3335S standard socket section diagram identifying D1, D2, l and L; exact 333516S values are listed in the specification table — The manufacturer's family section diagram identifies the measurement locations D1, D2, l and L. It is not an exact-size, to-scale photograph; refer to the table below for the actual 333516S dimensions.

Specifications

Brand	KING TONY
Model	333516S
Type	SAE 6-point standard socket
Square drive	3/8 inch
Hex opening	1/2 inch
Opening-end outside diameter D1	17.8 mm
Drive-end outside diameter D2	16.8 mm
Depth shown as l	9.0 mm
Overall length L	27 mm
Weight	26 g
Material and finish	Chrome vanadium alloy steel; polished, chrome plated
Standard	ANSI/ASME B107.1
Selling unit	One socket (workbook UOM: 顆)

What's in the Box

333516S 1/2-inch 6-point standard socket ×1, with 3/8-inch square drive
