KING TONY 333515S 3/8-inch Drive 15/32-inch 6-Point Standard Socket

Brand: KING TONY
Manufacturer model number: 333515S
Order code: Y8EEN3R
MOQ: 1 顆
Supply status: In Stock
Selected configuration: Standard item

$80.00/ 顆~~Was $110.00~~-27%

Payment Options: FPSFlexible PaymentBank Transfer
Buyer Protection: Genuine ProductsCompany InvoiceAfter-sales Service

Sold by

JACO自營旗艦店

自營

The KING TONY 333515S is a standard-length imperial socket with a 15/32-inch six-point opening and 3/8-inch square drive. Its overall length is 27 mm. Use with matching manual drive tools and select the opening to suit the fastener. This listing is sold individually: one 333515S socket per priced unit.

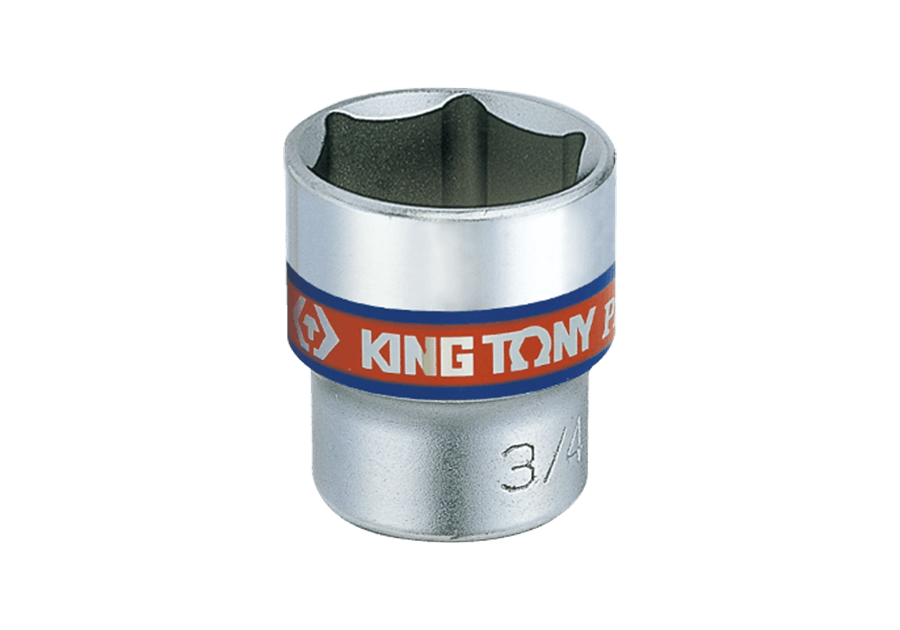

KING TONY 3335S-series representative six-point standard socket engraved 3/4 inch; this item is the 333515S 15/32-inch socket with 3/8-inch drive, sold individually — Manufacturer-supplied 3335S-series representative image. The photographed socket is engraved 3/4 inch and is not an exact-size photograph of this item. This listing is the 333515S: 15/32-inch opening, 3/8-inch square drive, sold as one socket.

Features and use

Six-point 15/32-inch opening for matching imperial hex fasteners.
Chrome vanadium alloy steel with a polished, chrome-plated finish.
Four ball-retaining grooves for engagement with the drive tool retaining ball.
The manufacturer specifies ANSI/ASME B107.1.

KING TONY 3335S-series technical socket diagram showing D1, D2, ℓ and L; exact 333515S overall length is 27 mm — 3335S-series dimensional diagram showing D1, D2, engagement depth ℓ and overall length L. It is a technical reference, not a photograph; the exact 333515S values are listed below.

Specifications

Brand	KING TONY
Manufacturer model	333515S
Square drive	3/8 inch DR.
Opening profile	6 point
Imperial opening size	15/32 inch
Socket form	Standard length
Socket-end outside diameter D1	16.8 mm
Drive-end outside diameter D2	17.8 mm
Engagement depth ℓ	9.0 mm
Overall length L	27 mm
Weight	27 g
Material	Chrome vanadium alloy steel
Finish	Polished and chrome plated
Manufacturer standard	ANSI/ASME B107.1
Sale unit	One individual socket

What's in the Box

333515S 15/32-inch 6-point standard socket × 1
