KING TONY 333514M is the 14 mm six-point standard socket in the 3335M series. Its 3/8-inch square drive fits a matching drive tool, while the 29 mm overall length provides the standard-length configuration. This listing is for one socket, not a socket set.

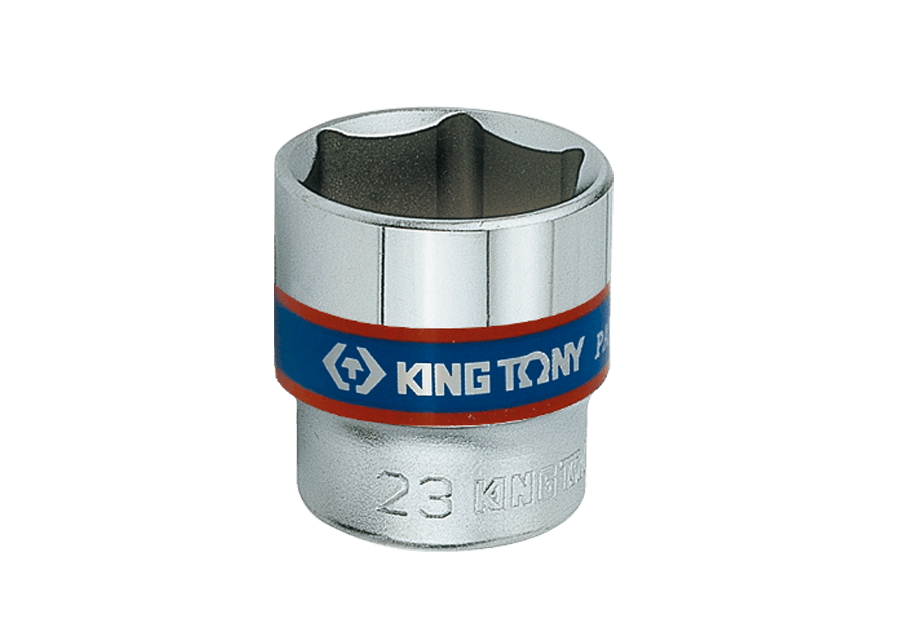

KING TONY 3335M-series six-point standard socket representative image marked 23 mm; this 333514M listing is 14 mm, 3/8-inch drive, sold individually — Manufacturer's 3335M-series representative photograph: the pictured socket is marked 23 mm. This listing is model 333514M, size 14 mm, 3/8-inch drive, sold individually. The photograph is not an exact-size image of the 14 mm socket.

Features

14 mm metric six-point opening with a 3/8-inch square drive.
Chrome vanadium alloy steel with a polished, chrome-plated finish.
Four ball grooves provide the manufacturer's retention design.
Manufacturer specifications refer to DIN 3124 and ISO 2725-1.

KING TONY 3335M-series dimension diagram identifying D1, D2, l and L; actual 333514M dimensions are in the 14 mm specification table — Manufacturer's 3335M-series dimension diagram, not a product photograph. The labels D1, D2, l and L identify the dimensions; refer to the specification table for this 14 mm model 333514M.

Specifications

Brand	KING TONY
Model	333514M
Series	3335M
Square drive	3/8 inch
Six-point opening	14 mm
Overall length L	29 mm
Opening depth l	11.0 mm
Working-end diameter D1	19.7 mm
Drive-end diameter D2	18.0 mm
Weight	35 g
Material	Chrome vanadium alloy steel
Finish	Polished, chrome plated
Retention design	4 ball grooves
Standards	DIN 3124; ISO 2725-1
Price unit	One individual socket (顆)

Package contents

KING TONY 333514M 3/8-inch drive 14 mm six-point standard socket ×1
