Name: KING TONY 333513M 3/8-inch Drive 13 mm Six-Point Standard Socket
Brand: KING TONY
SKU: KT-333513M
Price: 100 TWD
Availability: InStock

KING TONY 333513M is a 13 mm metric six-point standard socket for a 3/8-inch square drive. Its 27 mm overall length and 9.0 mm socket depth are specified for this exact model in the manufacturer’s 3335M table. The price is for one socket, not a set.

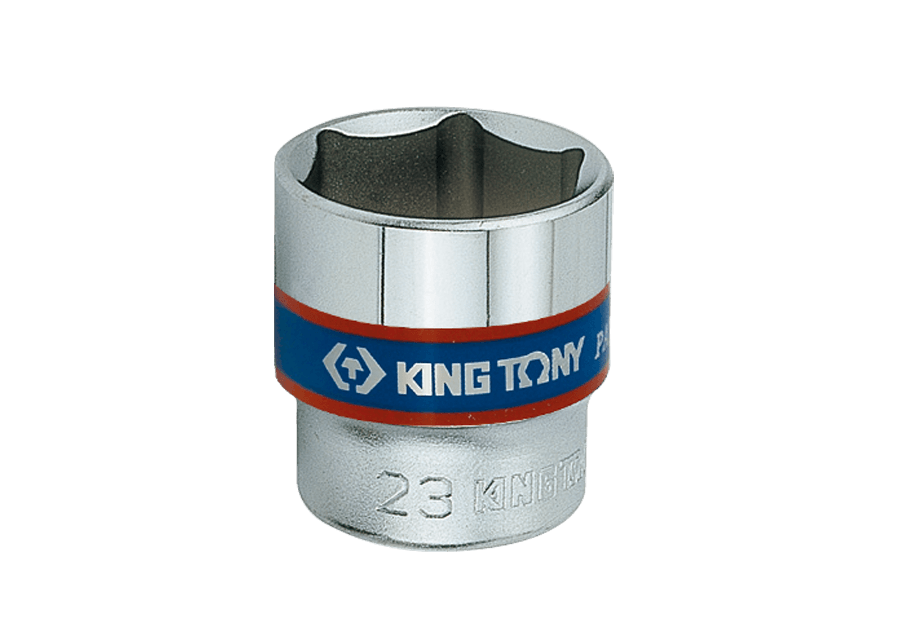

KING TONY 3335M series representative socket marked 23 mm; listing is one 333513M 13 mm 3/8-inch drive six-point standard socket — Manufacturer-supplied 3335M-series representative image. The photographed socket is marked 23 mm; it is not an exact photograph of this 13 mm size. This listing is one 333513M 13 mm six-point standard socket with a 3/8-inch square drive.

Features

Chrome vanadium alloy steel with a polished, chrome-plated finish.
Six-point metric opening and four ball-retention grooves.
Specified to DIN 3124 and ISO 2725-1.

Specifications

Brand	KING TONY
Model	333513M
Square drive	3/8 inch
Profile	Metric, six-point, standard length
Socket size	13 mm
Socket-end outside diameter D1	17.8 mm
Drive-end outside diameter D2	16.8 mm
Socket depth l	9.0 mm
Overall length L	27 mm
Weight	26 g
Material and finish	Chrome vanadium alloy steel; polished, chrome plated
Retention	Four ball-retention grooves
Standards	DIN 3124; ISO 2725-1
Sales unit	One socket (顆)

Dimension diagram

What's in the Box

333513M 13 mm, 3/8-inch drive six-point standard socket ×1

Features

Chrome vanadium alloy steel with a polished, chrome-plated finish.
Six-point metric opening and four ball-retention grooves.
Specified to DIN 3124 and ISO 2725-1.

Specifications

Brand	KING TONY
Model	333513M
Square drive	3/8 inch
Profile	Metric, six-point, standard length
Socket size	13 mm
Socket-end outside diameter D1	17.8 mm
Drive-end outside diameter D2	16.8 mm
Socket depth l	9.0 mm
Overall length L	27 mm
Weight	26 g
Material and finish	Chrome vanadium alloy steel; polished, chrome plated
Retention	Four ball-retention grooves
Standards	DIN 3124; ISO 2725-1
Sales unit	One socket (顆)

Dimension diagram

What's in the Box

333513M 13 mm, 3/8-inch drive six-point standard socket ×1
