KING TONY 333512M 3/8-inch Drive 12 mm 6-Point Standard Socket

Brand: KING TONY
Manufacturer model number: 333512M
Order code: Y8E68TN
MOQ: 1 顆
Supply status: In Stock
Selected configuration: Standard item

$80.00/ 顆~~Was $110.00~~-27%

Payment Options: FPSFlexible PaymentBank Transfer
Buyer Protection: Genuine ProductsCompany InvoiceAfter-sales Service

Sold by

JACO自營旗艦店

自營

KING TONY 333512M is a 12 mm metric six-point standard socket with a 3/8-inch square drive. Its overall length is 27 mm. This listing is one individual socket, not a socket set or a carton.

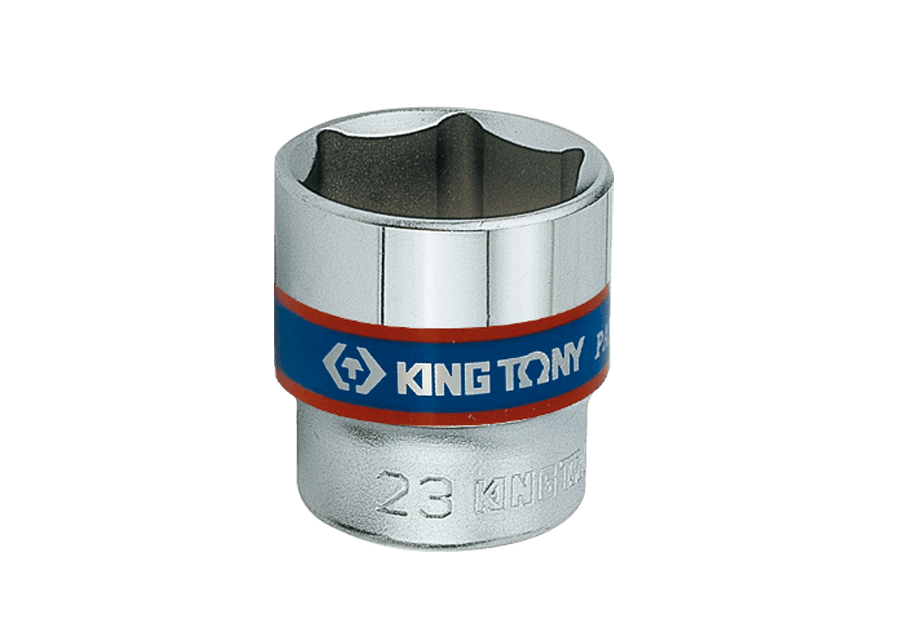

KING TONY 3335M-series representative socket photograph, visibly marked 23 mm; the listed 333512M is 12 mm, sold individually — Manufacturer's 3335M-series representative photograph: the pictured socket is marked 23 mm. This listing is the 12 mm 333512M socket, sold individually; the photographed size marking does not identify the supplied size.

Features

12 mm six-point metric opening and 3/8-inch square drive.
Chrome-vanadium alloy steel with a polished, chrome-plated finish.
Four ball-retaining grooves at the drive connection.
Manufacturer lists DIN 3124 and ISO 2725-1.

Specifications

Model	333512M
Series	3335M
Square drive	3/8 inch
Metric opening	12 mm
Profile	6-point / hexagonal
Working-end outside diameter D1	16.8 mm
Drive-end outside diameter D2	17.8 mm
Opening depth l	9.0 mm
Overall length L	27 mm
Weight	28 g
Material	Chrome-vanadium alloy steel
Finish	Polished, chrome plated
Standards	DIN 3124; ISO 2725-1
Selling unit	1 individual socket (顆)

KING TONY 3335M socket sectional dimension drawing with D1, D2, l and L labels — Manufacturer's 3335M-series dimension drawing. Values for this exact 333512M model are D1 16.8 mm, D2 17.8 mm, l 9.0 mm and L 27 mm, as listed in the specification table.

What's in the Box

333512M 12 mm, 3/8-inch drive six-point standard socket ×1
