KING TONY 333522S 3/8-inch Drive 11/16-inch 6-Point Standard Socket
Hand Tools
$120.00/ 顆
$170.00
No downloads available yet
Contact JACO if you need a datasheet, certificate or another technical document.

$80.00/ 顆Was $110.00-27%

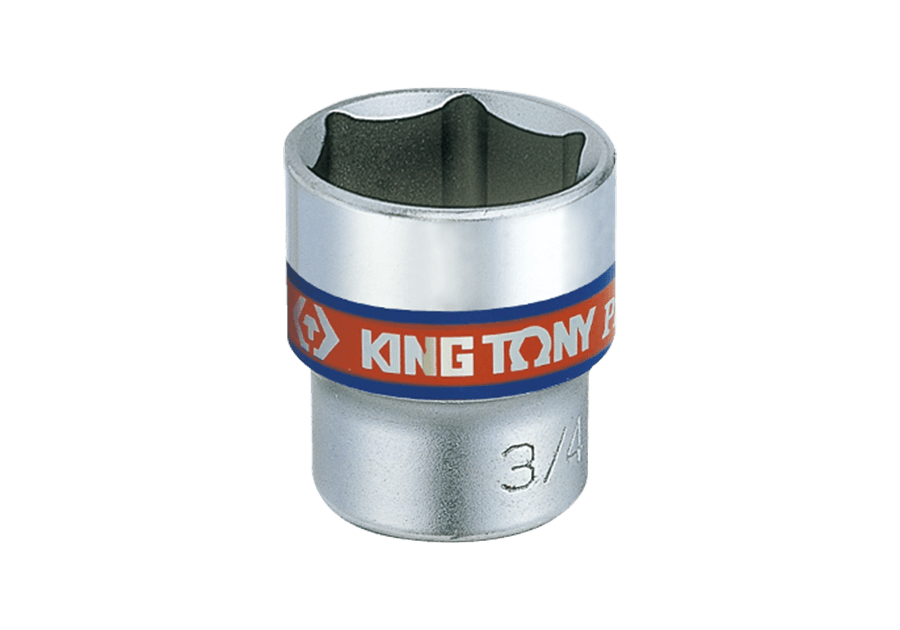

The KING TONY 333511S is an imperial 6-point standard socket with an 11/32-inch opening and a 3/8-inch square drive. Its 27 mm overall length suits a standard-length socket selection for matching hexagonal nuts or bolt heads. Use it with compatible 3/8-inch-drive hand ratchets and extensions. This listing is for one socket, not a socket set.

| Brand / model | KING TONY / 333511S |
|---|---|
| Square drive | 3/8 inch |
| Socket opening | 11/32 inch |
| Working profile | 6-point, imperial standard length |
| Working-end outside diameter D1 | 13.2 mm |
| Drive-end outside diameter D2 | 17.8 mm |
| Diagram dimension ℓ | 7.0 mm |
| Overall length L | 27 mm |
| Weight | 24 g |
| Material / finish | Chrome vanadium alloy steel / polished, chrome plated |
| Retention design | Four ball-retaining grooves |
| Manufacturer-specified standard | ANSI/ASME B107.1 |
| Sales unit | One socket (顆) |

This is a single socket; a ratchet and extension are not included.
