KING TONY 333510S 3/8-Inch Drive 5/16-Inch 6-Point Standard Socket

Brand: KING TONY
Manufacturer model number: 333510S
Order code: Y8EPZFH
MOQ: 1 顆
Supply status: In Stock
Selected configuration: Standard item

$80.00/ 顆~~Was $110.00~~-27%

Payment Options: FPSFlexible PaymentBank Transfer
Buyer Protection: Genuine ProductsCompany InvoiceAfter-sales Service

Sold by

JACO自營旗艦店

自營

The KING TONY 333510S is a standard-length, six-point imperial socket with a 3/8-inch square drive and a 5/16-inch working size. Its overall length is 27 mm. Match both the drive and fastener size when selecting hand socket tools. This listing is for one socket, not a socket set.

Product features

Chrome vanadium alloy steel with a polished, chrome-plated finish.
Six-point working end for 5/16-inch imperial fasteners.
Four ball grooves for drive retention.
Manufactured to ANSI/ASME B107.1.

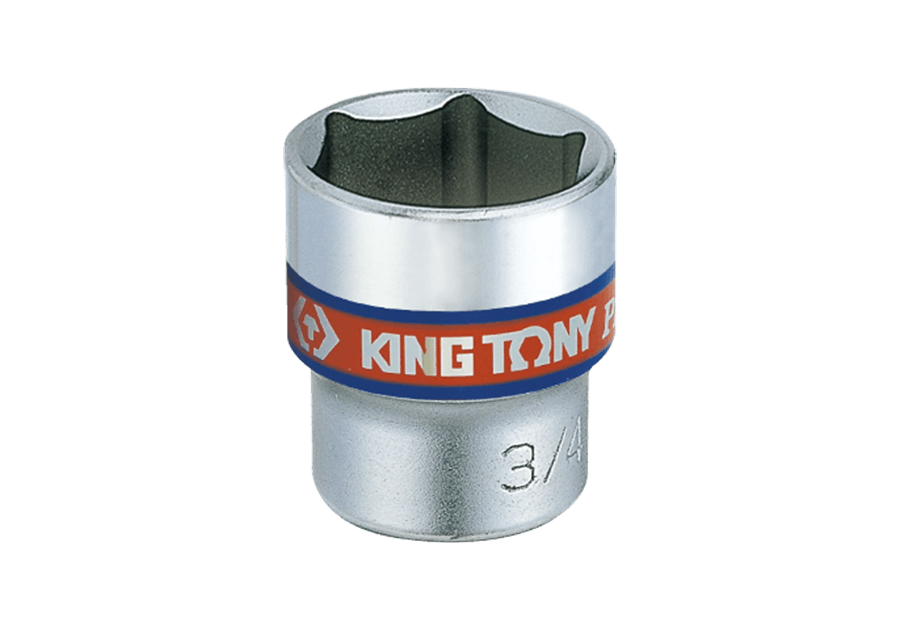

KING TONY 3335S-series representative six-point standard socket, pictured with a 3/4 marking; this 333510S listing is 3/8-inch drive, 5/16-inch size, sold individually. — Manufacturer-supplied KING TONY 3335S-series representative image; the pictured socket is marked 3/4, not the size of this listing. This 333510S is 5/16-inch size with a 3/8-inch drive and is sold individually.

Specifications

Brand	KING TONY
Model	333510S
Square drive	3/8 inch
Socket size	5/16 inch, imperial
Working end	6-point
Length type	Standard
D1, working-end outside diameter	12.0 mm
D2, drive-end outside diameter	17.8 mm
l, working-end depth	7.0 mm
L, overall length	27 mm
Weight	25 g
Material	Chrome vanadium alloy steel
Finish	Polished and chrome plated
Standard	ANSI/ASME B107.1
Sales unit	One individual socket

KING TONY 3335S-series socket dimension diagram labelled D1, D2, l and L; this 333510S is 5/16 inch, with actual dimensions in the specification table. — 3335S-series dimensional diagram, not a product photograph. This 333510S is 5/16 inch: D1 = 12.0 mm, D2 = 17.8 mm, l = 7.0 mm and L = 27 mm.

Contents

333510S 3/8-inch-drive, 5/16-inch six-point standard socket ×1
