KING TONY 333509M 3/8-Inch Drive 9 mm 6-Point Standard Socket

Brand: KING TONY
Manufacturer model number: 333509M
Order code: Y8ETV53
MOQ: 1 顆
Supply status: In Stock
Selected configuration: Standard item

$80.00/ 顆~~Was $110.00~~-27%

Payment Options: FPSFlexible PaymentBank Transfer
Buyer Protection: Genuine ProductsCompany InvoiceAfter-sales Service

Sold by

JACO自營旗艦店

自營

KING TONY 333509M is a 9 mm metric 6-point standard socket for a 3/8-inch square drive. Its 27 mm overall length and 25 g weight identify this exact size in the manufacturer’s 3335M table. This listing is for one socket, not a multi-size set.

Features

6-point metric working end for 9 mm hexagonal fasteners.
Chrome-vanadium alloy steel with a polished, chrome-plated finish.
Four retaining-ball grooves in the drive end.
Manufacturer lists DIN 3124 and ISO 2725-1 for the 3335M series.

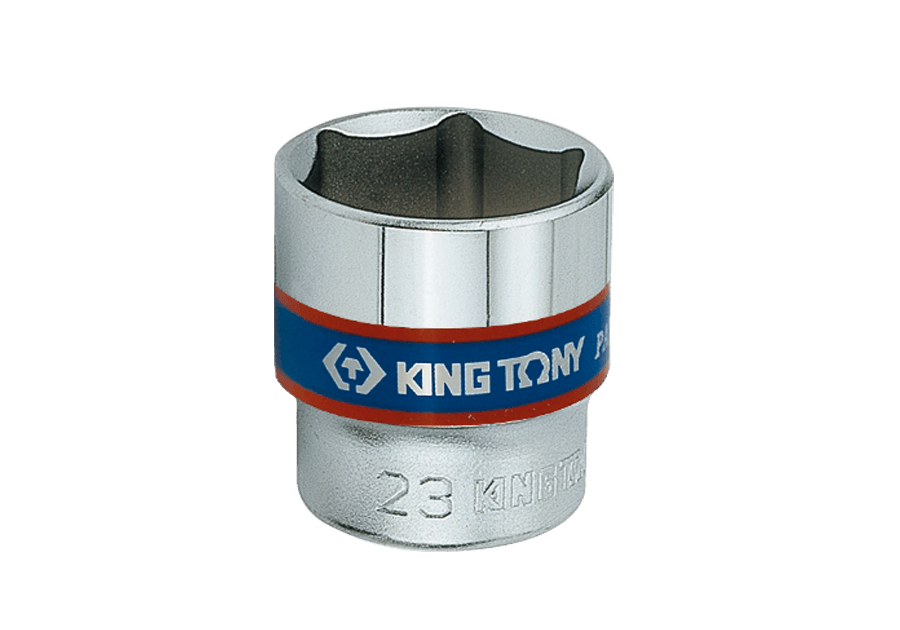

Manufacturer 3335M-series representative six-point socket, visibly marked 23; this 333509M listing is the 9 mm, 3/8-inch-drive socket sold individually — Manufacturer’s 3335M-series representative image; the pictured socket is visibly marked 23 and is not an exact 9 mm photograph. This listing is model 333509M, 9 mm, with a 3/8-inch drive, sold individually.

Manufacturer 3335M-series socket section diagram with D1, D2, ℓ and L; see the specification table for actual 333509M dimensions — Manufacturer’s 3335M-series section diagram illustrates the D1, D2, ℓ and L measurements; it is a schematic rather than a product photograph. Actual 333509M dimensions are listed below.

Specifications

Brand	KING TONY
Manufacturer model	333509M
Series	3335M
Socket size	9 mm
Profile	Metric 6-point
Square drive	3/8 inch
Overall length L	27 mm
Working-end diameter D1	13.2 mm
Drive-end diameter D2	17.8 mm
Working-end internal depth ℓ	7.0 mm
Weight	25 g
Material	Chrome-vanadium alloy steel
Finish	Polished, chrome plated
Standards	DIN 3124, ISO 2725-1
Priced unit	One socket (顆)

Contents per priced unit

KING TONY 333509M 9 mm 6-point standard socket ×1
