KING TONY 333032S 3/8-inch Drive 1-inch 12-Point Standard Socket

Brand: KING TONY
Manufacturer model number: 333032S
Order code: Y8E6789
MOQ: 1 顆
Supply status: In Stock
Selected configuration: Standard item

$210.00/ 顆~~Was $300.00~~-30%

Payment Options: FPSFlexible PaymentBank Transfer
Buyer Protection: Genuine ProductsCompany InvoiceAfter-sales Service

Sold by

JACO自營旗艦店

自營

The KING TONY 333032S is a 1-inch SAE, 12-point standard socket with a 3/8-inch square drive. Its 34 mm overall length and model-specific dimensions help you select a socket to match the fastener and working clearance.

Features

The 12-point opening fits the specified 1-inch fastener size.
Chrome vanadium alloy steel with a polished, chrome-plated finish.
Four ball-retention grooves are provided at the square-drive end.
The manufacturer states ANSI/ASME B107.1 for this series.

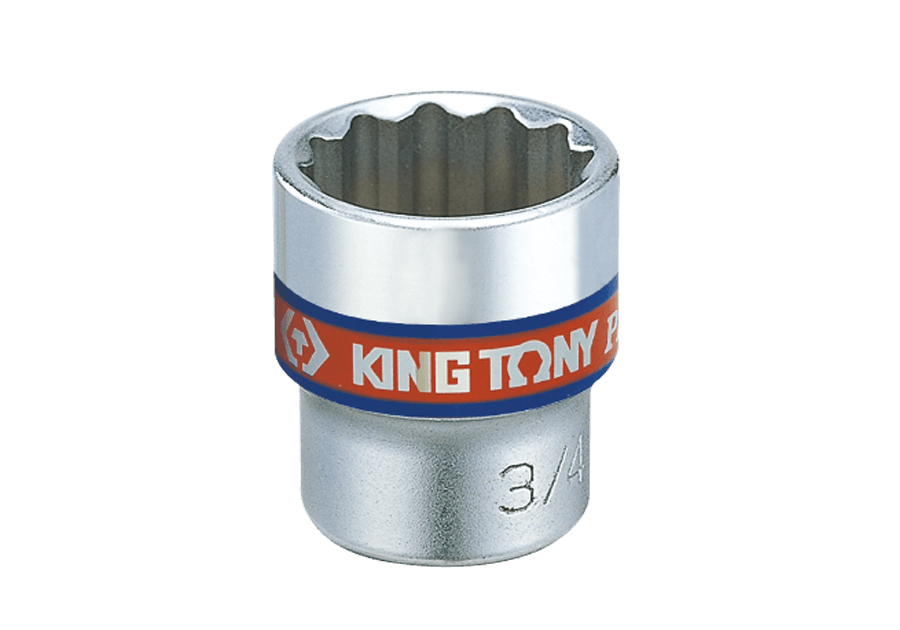

Manufacturer 3330S-series representative image marked 3/4 inch; this 333032S listing is the 1-inch, 3/8-inch-drive 12-point standard socket, sold individually. — Manufacturer's 3330S-series representative image; the pictured socket is marked 3/4 inch and is not an exact-size photograph. This listing is the 333032S 1-inch socket with a 3/8-inch drive, sold individually.

Manufacturer 3330S-series socket dimension diagram; see the 333032S table for D1 33.8 mm, D2 26.0 mm, l 17.0 mm and L 34 mm. — The manufacturer's series diagram identifies D1, D2, l and L. The dimensions for this exact 333032S model are listed below; the drawing does not show a different supplied component.

Specifications

Brand	KING TONY
Model	333032S
Square drive	3/8 inch
Socket size	1 inch (SAE)
Profile	12-point
Format	Standard socket
D1 (working-end outside diameter)	33.8 mm
D2 (drive-end outside diameter)	26.0 mm
l (opening depth)	17.0 mm
L (overall length)	34 mm
Weight	96 g
Material	Chrome vanadium alloy steel
Finish	Polished and chrome plated
Retention design	Four ball-retention grooves
Manufacturing standard	ANSI/ASME B107.1
Selling unit	One socket

What's in the Box

333032S 1-inch, 3/8-inch-drive 12-point standard socket ×1
