KING TONY 333028S 3/8-Inch Drive 7/8-Inch 12-Point Standard Socket

Brand: KING TONY
Manufacturer model number: 333028S
Order code: Y8E31JF
MOQ: 1 顆
Supply status: In Stock
Selected configuration: Standard item

$170.00/ 顆~~Was $240.00~~-29%

Payment Options: FPSFlexible PaymentBank Transfer
Buyer Protection: Genuine ProductsCompany InvoiceAfter-sales Service

Sold by

JACO自營旗艦店

自營

The KING TONY 333028S is a 7/8-inch SAE 12-point standard socket with a 3/8-inch square drive and a 32 mm overall length. It is intended for use with a matching hand ratchet or socket handle. This listing is for one socket, not a socket set.

Features

Chrome vanadium alloy steel with a polished, chrome-plated finish.
12-point opening for matching 7/8-inch fasteners.
Four ball recesses for connection to a compatible 3/8-inch square-drive tool.
The manufacturer references ANSI/ASME B107.1.

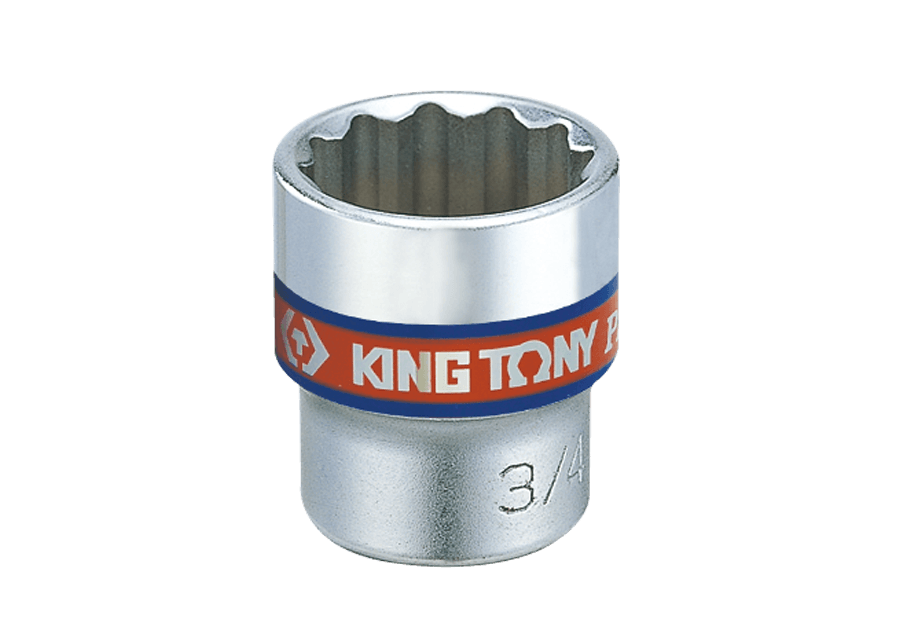

Manufacturer 3330S-series standard socket photograph with visible 3/4 marking; this 333028S listing is the 7/8-inch, 3/8-inch-drive socket, sold individually. — Manufacturer's KING TONY 3330S-series representative photograph; the visible marking is 3/4, not the 7/8-inch size sold here. This listing is model 333028S, 7/8 inch with a 3/8-inch drive, sold individually.

Specifications

Brand	KING TONY
Model	333028S
Square drive	3/8 inch
Socket size	7/8 inch (SAE)
Profile	12-point
Socket form	Standard
Overall length L	32 mm
Working-end outside diameter D1	29.6 mm
Drive-end outside diameter D2	26.0 mm
Internal working depth ℓ	15.0 mm
Weight	83 g
Material	Chrome vanadium alloy steel
Finish	Polished, chrome plated
Retention feature	Four ball recesses
Standard referenced by manufacturer	ANSI/ASME B107.1
Selling unit	One socket (顆)

Manufacturer 3330S-series sectional drawing with D1, D2, ell and L labels; the actual 7/8-inch 333028S dimensions are listed in the specification table. — This is a 3330S-series sectional dimension drawing, not a product photograph. Refer to the specification table for the actual 7/8-inch 333028S dimensions.

Contents

KING TONY 333028S 7/8-inch 12-point standard socket ×1

Reviews & Q&A

No reviews yet. Be the first to review this product.

Recently viewed

Features

Chrome vanadium alloy steel with a polished, chrome-plated finish.
12-point opening for matching 7/8-inch fasteners.
Four ball recesses for connection to a compatible 3/8-inch square-drive tool.
The manufacturer references ANSI/ASME B107.1.

Specifications

Brand	KING TONY
Model	333028S
Square drive	3/8 inch
Socket size	7/8 inch (SAE)
Profile	12-point
Socket form	Standard
Overall length L	32 mm
Working-end outside diameter D1	29.6 mm
Drive-end outside diameter D2	26.0 mm
Internal working depth ℓ	15.0 mm
Weight	83 g
Material	Chrome vanadium alloy steel
Finish	Polished, chrome plated
Retention feature	Four ball recesses
Standard referenced by manufacturer	ANSI/ASME B107.1
Selling unit	One socket (顆)

Contents

KING TONY 333028S 7/8-inch 12-point standard socket ×1

JACO自營旗艦店

KING TONY 333028S 3/8-Inch Drive 7/8-Inch 12-Point Standard Socket

JACO自營旗艦店

Reviews & Q&A

Similar products

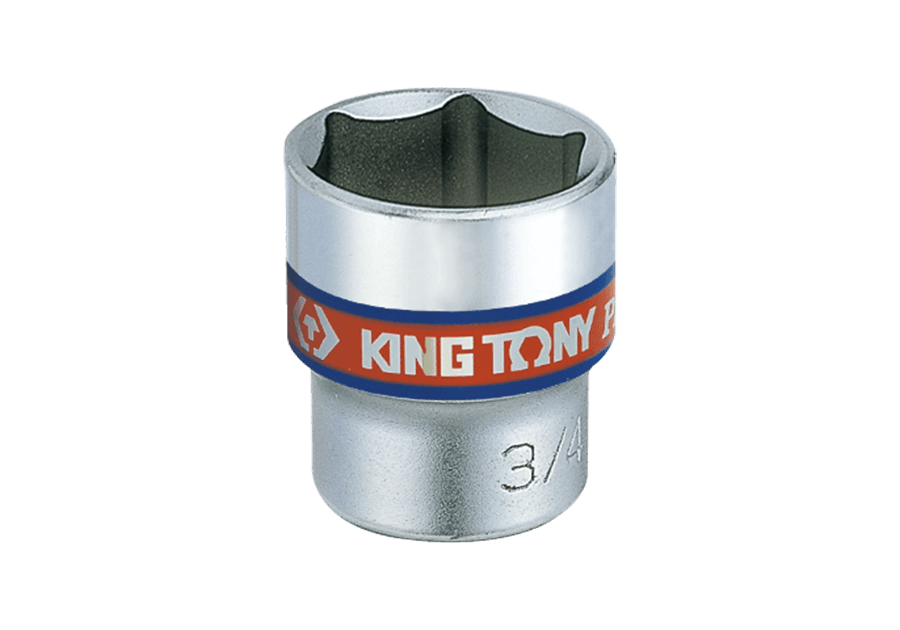

KING TONY 333528S 3/8-in Drive 7/8-in 6-Point Standard Socket
