KING TONY 333020S 3/8-inch Drive 5/8-inch 12-Point Standard Socket

Brand: KING TONY
Manufacturer model number: 333020S
Order code: Y8ECHBU
MOQ: 1 顆
Supply status: In Stock
Selected configuration: Standard item

$110.00/ 顆~~Was $160.00~~-31%

Payment Options: FPSFlexible PaymentBank Transfer
Buyer Protection: Genuine ProductsCompany InvoiceAfter-sales Service

Sold by

JACO自營旗艦店

自營

The KING TONY 333020S is a standard-length imperial socket with a 5/8-inch 12-point opening and a 3/8-inch square drive. Use it with compatible hand tools for matching nuts and bolts. Its overall length is 29 mm. Check both the drive size and fastener size before selecting a socket. This listing is sold as one individual socket.

Features

Chrome vanadium alloy steel with a polished, chrome-plated finish.
Imperial 12-point opening and 3/8-inch square drive.
Four ball-retaining grooves for the detent ball of compatible hand tools.
Manufacturer specifies ANSI/ASME B107.1.

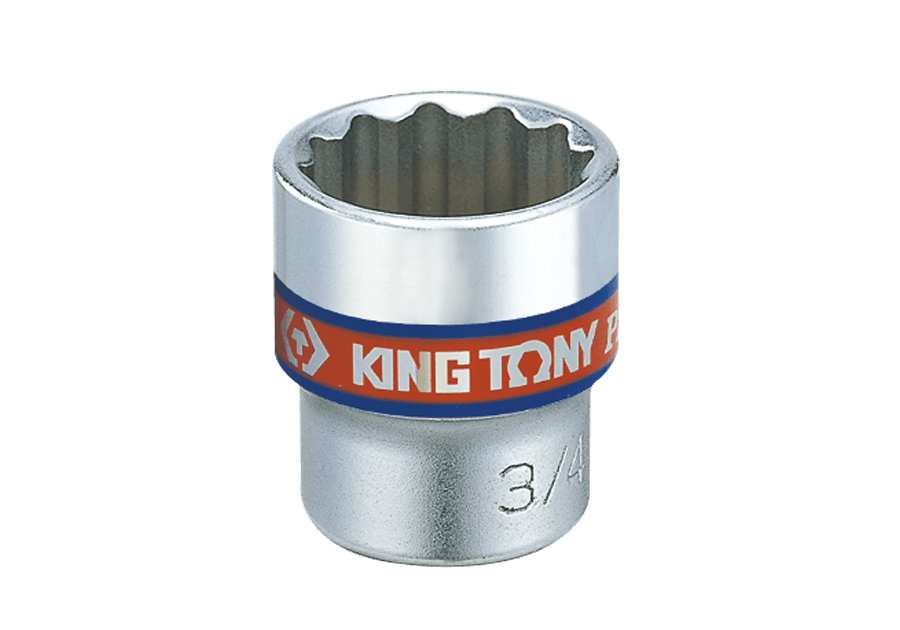

KING TONY 3330S-series representative socket photo engraved 3/4 inch; this 333020S listing is the 5/8-inch 12-point socket with 3/8-inch drive, sold individually — Manufacturer's 3330S-series representative photograph, visibly engraved 3/4 inch, not an exact-size photograph of this item. This 333020S listing has a 5/8-inch opening and a 3/8-inch drive and is sold as one individual socket.

KING TONY 3330S-series dimensional section drawing: D1 and D2 are outside diameters, l is opening depth and L is overall length; this 333020S is 5/8 inch — Generic 3330S-series dimensional section diagram, not a scale product photograph. Dimensions for 333020S are D1 21.8 mm, D2 20.0 mm, l 11.0 mm and L 29 mm, as listed in the specification table.

Specifications

Model	333020S
Square drive	3/8 inch
Opening size	5/8 inch
Opening profile	12-point
Opening-end outside diameter D1	21.8 mm
Drive-end outside diameter D2	20.0 mm
Opening depth l	11.0 mm
Overall length L	29 mm
Weight	42 g
Material	Chrome vanadium alloy steel
Surface finish	Polished and chrome plated
Manufacturer-stated standard	ANSI/ASME B107.1
Selling unit	One individual socket

What's in the Box

333020S 5/8-inch 12-point standard socket ×1
