Name: KING TONY 333017M 3/8-inch Drive 17 mm 12-Point Standard Socket
Brand: KING TONY
SKU: KT-333017M
Price: 120 TWD
Availability: InStock

The KING TONY 333017M is a 17 mm metric twelve-point standard socket with a 3/8-inch square drive. Its 29 mm overall length suits use with matching manual drive tools for appropriately sized nuts and bolts. This listing is sold individually.

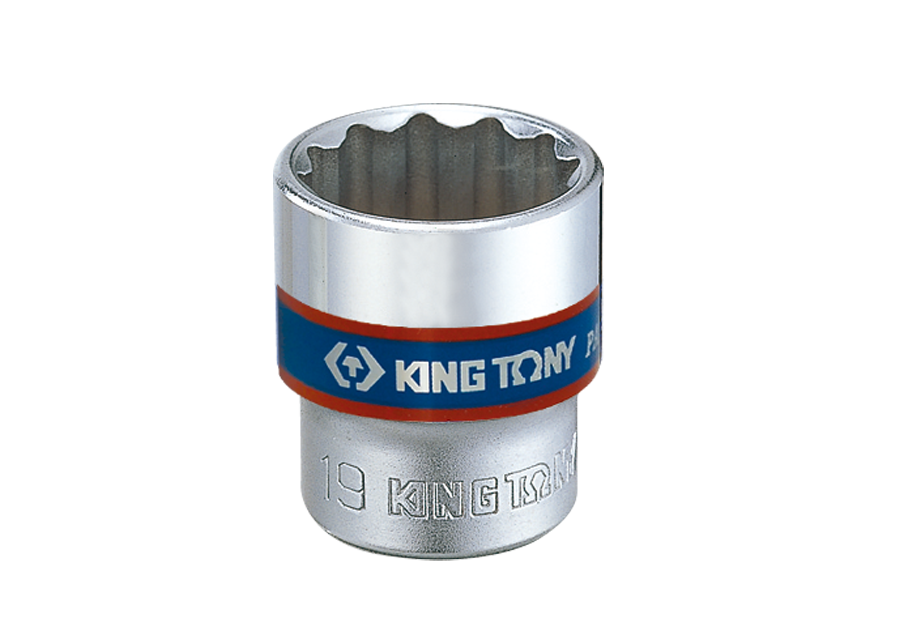

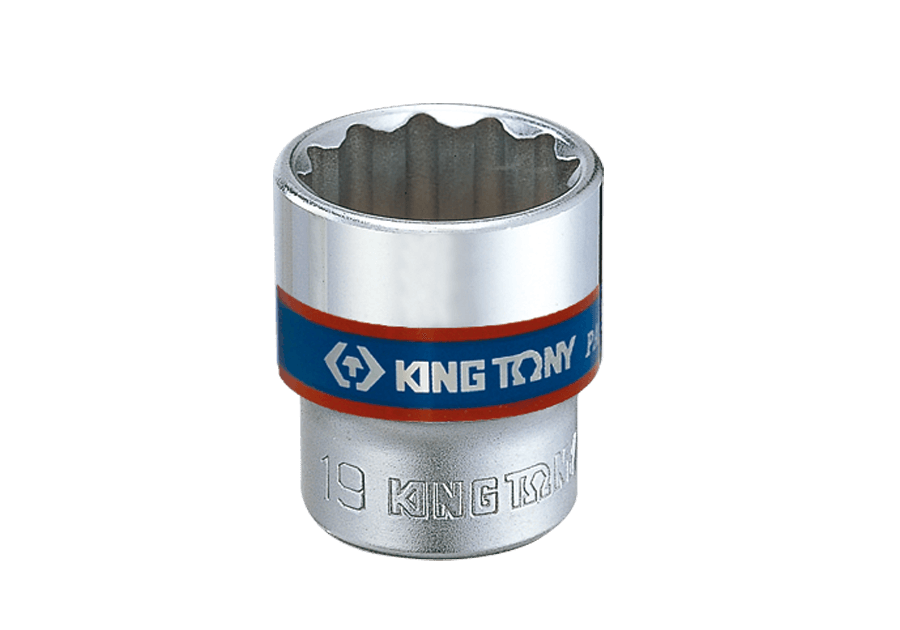

KING TONY 3330M-series representative socket marked 19 mm; this listing is the 17 mm 333017M. — Manufacturer-supplied 3330M-series representative image: the pictured socket is marked 19 mm, not this listing's size. This listing is the 333017M, 17 mm socket, sold individually.

Features

17 mm twelve-point opening and 3/8-inch square drive.
Chrome vanadium alloy steel with a polished, chrome-plated finish.
Four ball-retaining grooves for engagement with a compatible drive tool.
Manufactured to DIN 3124 and ISO 2725-1.

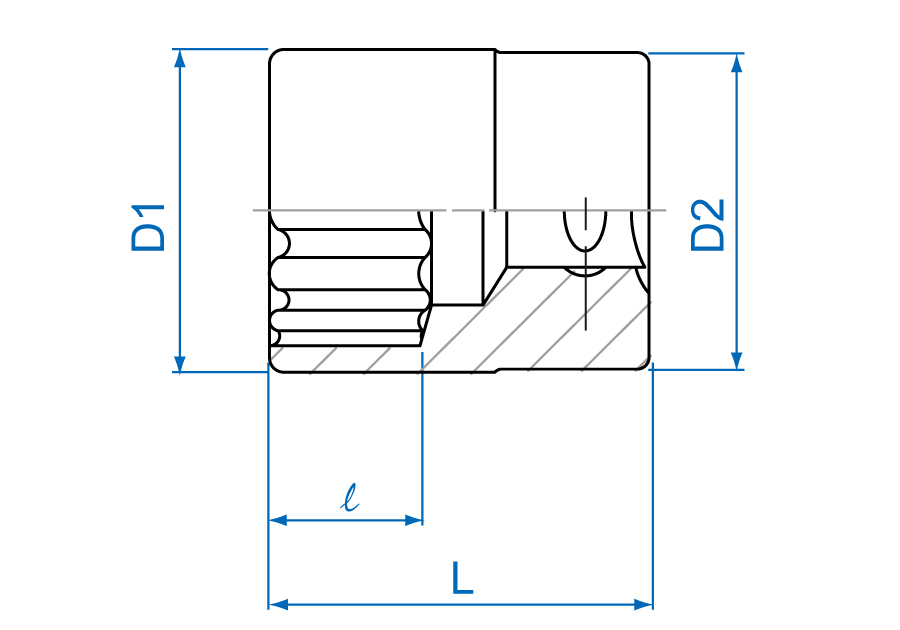

KING TONY 3330M-series sectional dimension diagram showing D1, D2, l and L. — Manufacturer's 3330M-series dimension-location drawing. Refer to the specification table for this 333017M socket's D1, D2, l and L values.

Specifications

Brand	KING TONY
Model	333017M
Drive size	3/8 inch
Metric opening size	17 mm
Opening profile	12-point
Length type	Standard
Outside diameter D1	23.8 mm
Outside diameter D2	20.0 mm
Opening depth l	11.0 mm
Overall length L	29 mm
Weight	48 g
Material	Chrome vanadium alloy steel
Finish	Polished, chrome-plated
Standards	DIN 3124, ISO 2725-1
Sales unit	1 socket

Package contents

KING TONY 333017M 17 mm twelve-point standard socket ×1.

Features

17 mm twelve-point opening and 3/8-inch square drive.
Chrome vanadium alloy steel with a polished, chrome-plated finish.
Four ball-retaining grooves for engagement with a compatible drive tool.
Manufactured to DIN 3124 and ISO 2725-1.

Specifications

Brand	KING TONY
Model	333017M
Drive size	3/8 inch
Metric opening size	17 mm
Opening profile	12-point
Length type	Standard
Outside diameter D1	23.8 mm
Outside diameter D2	20.0 mm
Opening depth l	11.0 mm
Overall length L	29 mm
Weight	48 g
Material	Chrome vanadium alloy steel
Finish	Polished, chrome-plated
Standards	DIN 3124, ISO 2725-1
Sales unit	1 socket

Package contents

KING TONY 333017M 17 mm twelve-point standard socket ×1.

JACO自營旗艦店

KING TONY 333017M 3/8-inch Drive 17 mm 12-Point Standard Socket

JACO自營旗艦店

Reviews & Q&A

Similar products

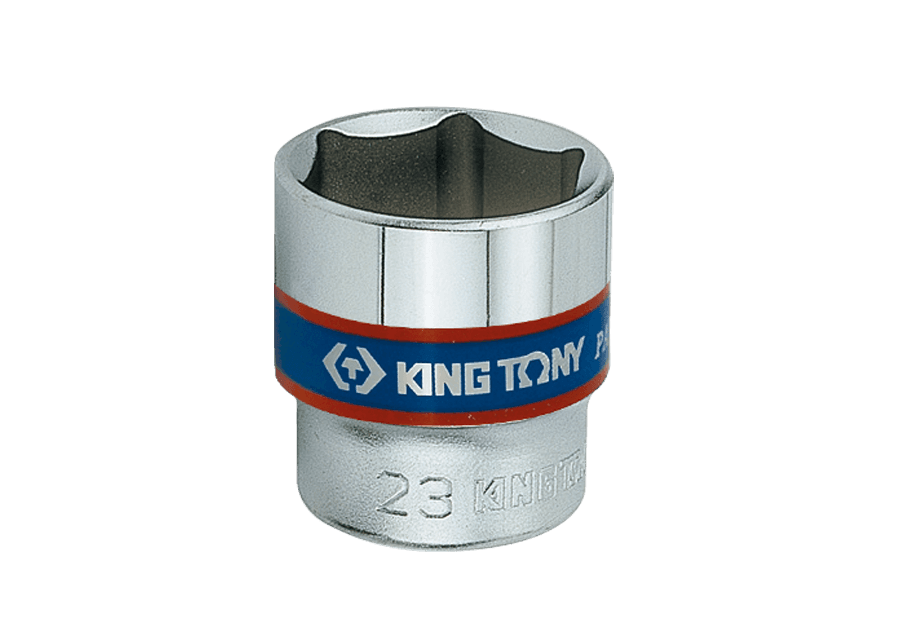

KING TONY 333517M 3/8-inch Drive 17 mm 6-Point Standard Socket
