KING TONY 333016S 3/8-inch Drive 1/2-inch 12-Point Standard Socket

Brand: KING TONY
Manufacturer model number: 333016S
Order code: Y8EV21B
MOQ: 1 顆
Supply status: In Stock
Selected configuration: Standard item

$100.00/ 顆~~Was $140.00~~-29%

Payment Options: FPSFlexible PaymentBank Transfer
Buyer Protection: Genuine ProductsCompany InvoiceAfter-sales Service

Sold by

JACO自營旗艦店

自營

KING TONY 333016S is a 1/2-inch twelve-point standard socket with a 3/8-inch square drive. Its 27 mm overall length and 9 mm working depth are specified in the manufacturer’s exact model row. Supplied as one individual socket, not a socket set.

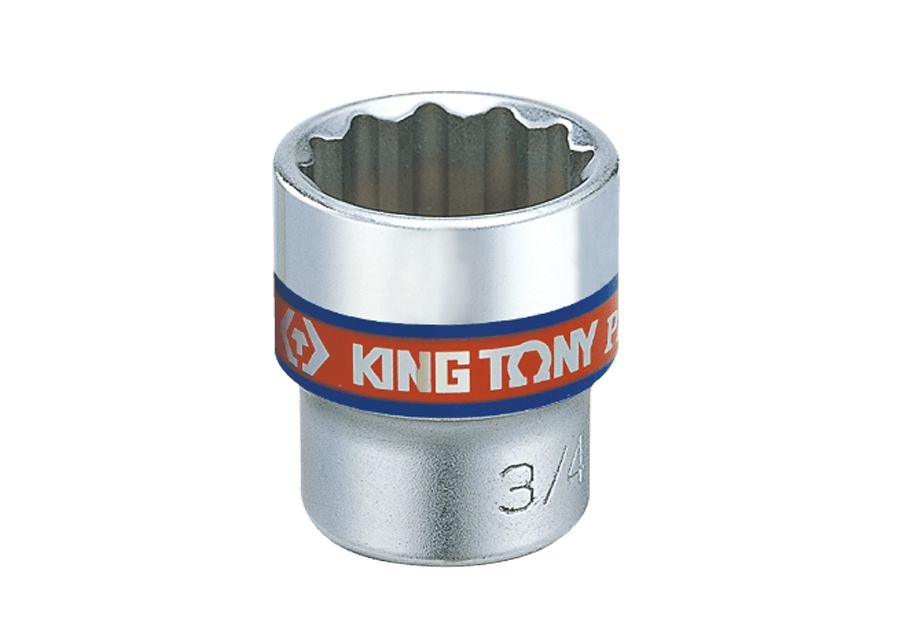

Manufacturer's 3330S-series representative image. The photographed socket is marked 3/4 inch; this is not an exact-size photograph of 333016S. This listing is the 1/2-inch, 3/8-inch-drive twelve-point standard socket, sold individually.

Features

Twelve-point opening for the specified 1/2-inch imperial fastener size.
Chrome vanadium alloy steel with a polished, chrome-plated finish.
Four internal ball-retention grooves at the drive end.
Manufacturer specification: ANSI/ASME B107.1.

Manufacturer's 3330S-series sectional dimension diagram, not a product photograph. For 333016S: D1 17.8 mm, D2 16.8 mm, working depth ℓ 9 mm and overall length L 27 mm.

Specifications

Model	333016S
Square drive	3/8 inch
Socket opening	1/2 inch
Profile	12-point
Length type	Standard
D1: opening-end outside diameter	17.8 mm
D2: drive-end outside diameter	16.8 mm
Working depth ℓ	9 mm
Overall length L	27 mm
Weight	26 g
Material	Chrome vanadium alloy steel
Finish	Polished and chrome plated
Retention	Four ball-retention grooves
Standard	ANSI/ASME B107.1
Selling unit	One socket (顆)

What's in the Box

333016S 1/2-inch twelve-point standard socket, 3/8-inch drive × 1

The selling unit is one socket. No ratchet handle or additional socket set is included in this listing.
