KING TONY 333015S 3/8-inch Drive 15/32-inch 12-Point Standard Socket

Brand: KING TONY
Manufacturer model number: 333015S
Order code: Y8EDRBO
MOQ: 1 顆
Supply status: In Stock
Selected configuration: Standard item

$80.00/ 顆~~Was $110.00~~-27%

Payment Options: FPSFlexible PaymentBank Transfer
Buyer Protection: Genuine ProductsCompany InvoiceAfter-sales Service

Sold by

JACO自營旗艦店

自營

The KING TONY 333015S is a 15/32-inch SAE 12-point standard socket with a 3/8-inch square drive. Its overall length is 27 mm. Pair it with a matching hand ratchet or extension for imperial fasteners. This listing is for one socket, not a socket set.

Features

12-point opening; check the fastener’s SAE across-flats size before selecting a socket.
Chrome vanadium alloy steel with a polished, chrome-plated finish.
Four ball-retaining grooves for engagement with the drive tool’s detent ball.
The manufacturer references ANSI/ASME B107.1.

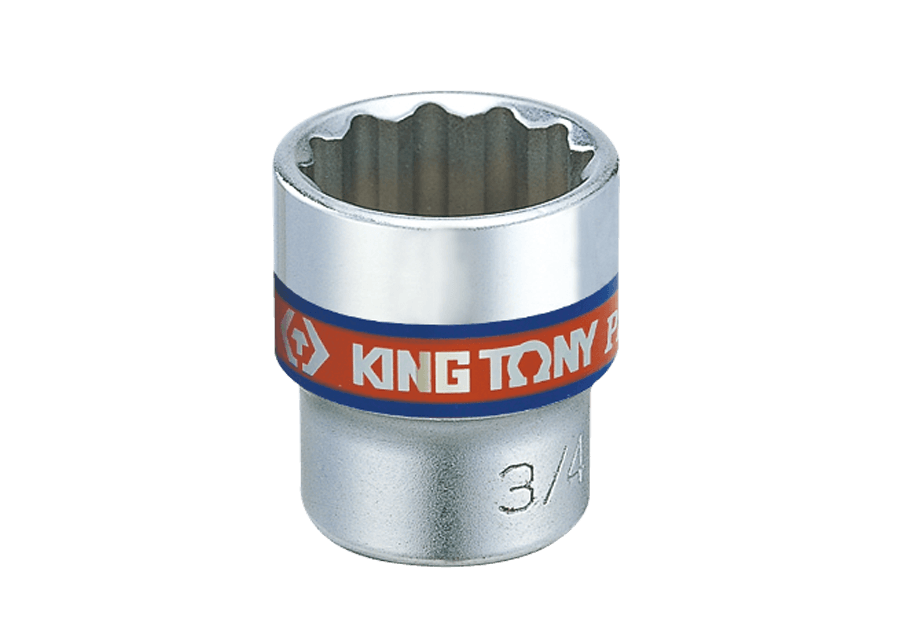

KING TONY 3330S representative socket photo marked 3/4 inch; this 333015S listing is 15/32 inch with 3/8-inch drive, sold individually — Manufacturer’s 3330S-series representative photo, engraved 3/4 inch, not an exact-size photo of this item. This 333015S listing is the 15/32-inch socket with 3/8-inch drive, sold individually.

Specifications

Model	333015S
Square drive	3/8 inch
SAE socket size	15/32 inch
Socket profile	12-point
D1 outside diameter	16.8 mm
D2 outside diameter	17.8 mm
l socket-end depth	9.0 mm
L overall length	27 mm
Weight	27 g
Material	Chrome vanadium alloy steel
Finish	Polished, chrome plated
Standard referenced by manufacturer	ANSI/ASME B107.1
Selling unit	1 socket

KING TONY 3330S dimension diagram; 333015S is 15/32 inch, with D1 16.8, D2 17.8, l 9.0 and L 27 mm — 3330S-series sectional dimension diagram without numeric values. For 333015S, D1 is 16.8 mm, D2 is 17.8 mm, l is 9.0 mm and L is 27 mm.

What's in the Box

333015S 15/32-inch SAE 12-point standard socket ×1
