KING TONY 333012S 3/8-inch Drive 3/8-inch 12-Point Standard Socket

Brand: KING TONY
Manufacturer model number: 333012S
Order code: Y8E7QFJ
MOQ: 1 顆
Supply status: In Stock
Selected configuration: Standard item

$80.00/ 顆~~Was $110.00~~-27%

Payment Options: FPSFlexible PaymentBank Transfer
Buyer Protection: Genuine ProductsCompany InvoiceAfter-sales Service

Sold by

JACO自營旗艦店

自營

The KING TONY 333012S is an inch-size, 12-point standard socket from the 3330S series. Its square drive is 3/8 inch and its fastener opening is also 3/8 inch. Use it with a hand ratchet or extension of the matching drive size. This listing is for one socket, not a socket set.

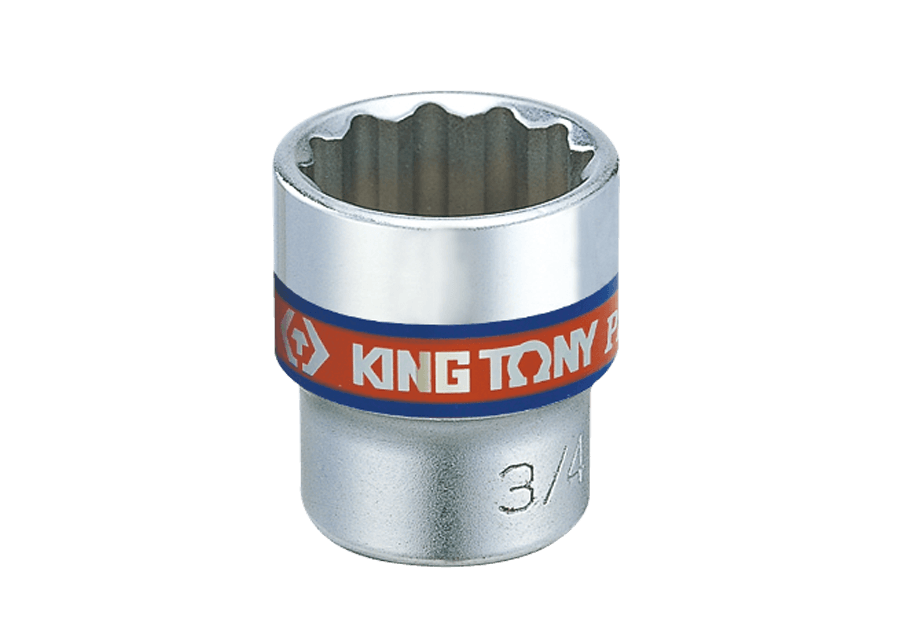

KING TONY 3330S-series representative 12-point standard socket marked 3/4 inch; this 333012S listing is a 3/8-inch socket sold individually — Manufacturer-supplied 3330S-series representative image. The pictured socket is marked 3/4 inch and is not an exact-size photograph of 333012S. This listing is the 3/8-inch opening with a 3/8-inch square drive, sold as one socket.

Features

12-point inch-size opening; check the fastener size separately from the square-drive size.
Chrome vanadium alloy steel with a polished, chrome-plated finish.
Four ball-retention grooves at the drive end.
Manufacturer specifies ANSI/ASME B107.1.

KING TONY 3330S standard-socket section drawing showing D1, D2, l and L; see the table for actual 333012S dimensions — The manufacturer’s section drawing identifies the D1, D2, l and L measurement positions. It is not a scale photograph of 333012S; use the model-specific dimensions in the table.

Specifications

Brand	KING TONY
Model	333012S
Square drive	3/8 inch
Socket opening	3/8 inch (SAE/inch size)
Profile	12-point
Length type	Standard
D1 outside diameter	14.0 mm
D2 outside diameter	17.8 mm
Internal depth l	9.0 mm
Overall length L	27 mm
Weight	26 g
Material	Chrome vanadium alloy steel
Finish	Polished, chrome-plated
Specified standard	ANSI/ASME B107.1
Sales unit	One socket

Package Contents

333012S 3/8-inch 12-point standard socket ×1
