KING TONY 333011S 3/8-inch Drive 11/32-inch 12-Point Standard Socket

Brand: KING TONY
Manufacturer model number: 333011S
Order code: Y8EBY3I
MOQ: 1 顆
Supply status: In Stock
Selected configuration: Standard item

$80.00/ 顆~~Was $110.00~~-27%

Payment Options: FPSFlexible PaymentBank Transfer
Buyer Protection: Genuine ProductsCompany InvoiceAfter-sales Service

Sold by

JACO自營旗艦店

自營

KING TONY 333011S is the 11/32-inch size in the 3330S SAE 12-point standard socket series. Its 3/8-inch square drive pairs with a matching drive tool. Check both the fastener size and tool drive before selection. This listing is for one socket, not a set.

Features

11/32-inch SAE opening with a 12-point profile.
3/8-inch square drive with four ball grooves for retention.
Chrome vanadium alloy steel with a polished, chrome-plated finish.
Manufacturer specifies ANSI/ASME B107.1.

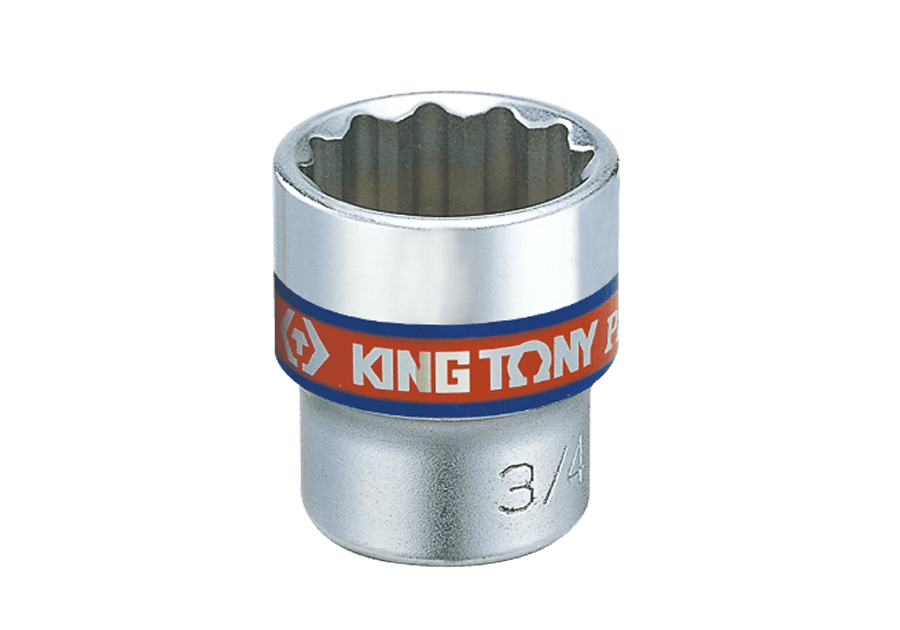

Official KING TONY 3330S-series 12-point standard socket representative photo with 3/4-inch engraving; this 333011S listing is 11/32 inch, sold individually — Manufacturer's same-design 3330S-series representative photograph. The pictured socket is marked 3/4 inch; it is not an exact-size photograph of this item. This listing is model 333011S, size 11/32 inch, with a 3/8-inch square drive, sold as one socket.

KING TONY 3330S-series socket cross-section diagram identifying D1, D2, depth l and overall length L; exact 333011S values are in the specification table — The official series diagram identifies D1, D2, depth ℓ and overall length L. It is a dimensional reference, not a scale drawing of 333011S. The table below gives the verified dimensions for this exact model.

Specifications

Brand	KING TONY
Model	333011S
Socket type	SAE 12-point standard socket
Drive	3/8-inch square drive
Opening size	11/32 inch
Opening-end outside diameter D1	13.2 mm
Drive-end outside diameter D2	17.8 mm
Depth ℓ	7.0 mm
Overall length L	27 mm
Weight	25 g
Material	Chrome vanadium alloy steel
Finish	Polished and chrome plated
Standard	ANSI/ASME B107.1
Selling unit	One socket (顆)

What's in the Box

333011S 11/32-inch 12-point standard socket × 1
