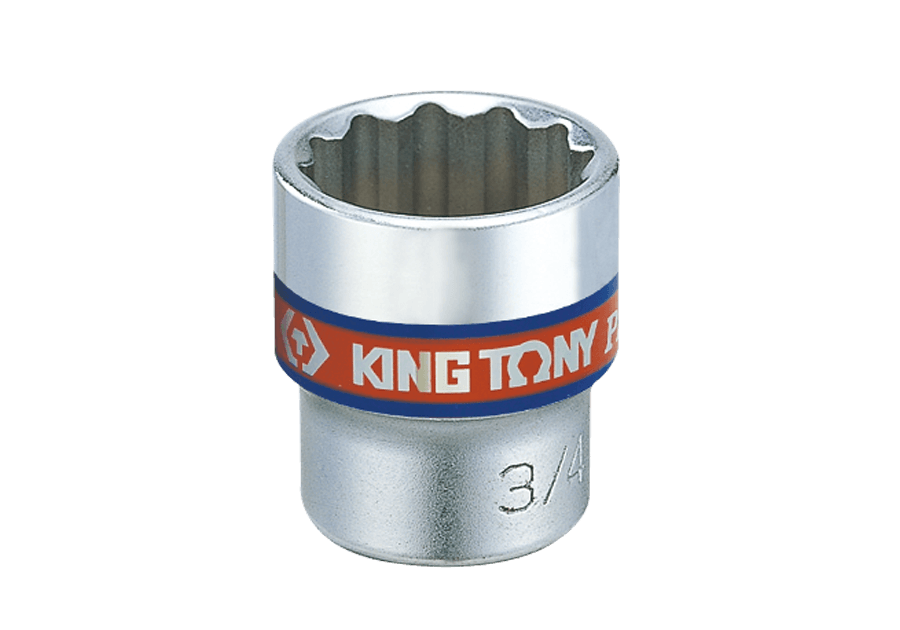

KING TONY 3330S 系列標準十二角套筒示意；圖上標記為 3/4 吋，本款 333010S 為 5/16 吋、3/8 吋驅動，單顆出售

KING TONY 333010S 3/8" Drive 5/16" 12-Point Standard Socket

Brand: KING TONY
Manufacturer model number: 333010S
Order code: Y8EDF6L
MOQ: 1 顆
Supply status: In Stock
Selected configuration: Standard item

$80.00/ 顆~~Was $110.00~~-27%

Payment Options: FPSFlexible PaymentBank Transfer
Buyer Protection: Genuine ProductsCompany InvoiceAfter-sales Service

Sold by

JACO自營旗艦店

自營

KING TONY 333010S is a 3/8-inch-drive, 12-point standard socket for a 5/16-inch fastener size. It is made from chrome vanadium alloy steel with a polished, chrome-plated finish. The price is for one socket, not a socket set.

Features

12-point working end in the specified 5/16-inch imperial size.
3/8-inch square drive; check the square-drive size of the tool before use.
Chrome vanadium alloy steel with polishing and chrome plating.
Four-ball locating function; the manufacturer lists ANSI/ASME B107.1.

Series image disclosure

Manufacturer KING TONY 3330S-series standard 12-point socket image marked 3/4 inch; this listing is the 333010S 5/16-inch socket with 3/8-inch drive, sold individually — Manufacturer-supplied KING TONY 3330S-series representative image. The pictured size marking is 3/4 inch, not the size sold here. This listing is model 333010S: 5/16-inch working size, 3/8-inch drive, sold as one socket.

KING TONY 3330S-series dimension-location drawing showing D1, D2, ℓ and L; actual 333010S values are in the specification table — The manufacturer's series drawing identifies D1, D2, ℓ and L; it is not a scale drawing of this size. The specification table gives the actual values for 333010S.

Specifications

Brand	KING TONY
Model	333010S
Square drive	3/8 inch
Working size (imperial)	5/16 inch
Working profile	12-point
Type	Standard socket
D1 (illustrated outside diameter)	12.0 mm
D2 (illustrated outside diameter)	17.8 mm
ℓ (illustrated dimension)	7.0 mm
Overall length L	27 mm
Weight	24 g
Material	Chrome vanadium alloy steel
Finish	Polished and chrome-plated
Locating design	Four-ball locating function
Manufacturer-listed standard	ANSI/ASME B107.1
Selling unit	One socket (顆)

What is included

333010S 5/16-inch 12-point standard socket ×1

Match both the imperial fastener size and the square drive before ordering. This is one socket, not a ratchet wrench or a socket set.
