KING TONY 333008S 3/8" Drive 1/4" 12-Point Standard Socket

Brand: KING TONY
Manufacturer model number: 333008S
Order code: Y8EHD1Z
MOQ: 1 顆
Supply status: In Stock
Selected configuration: Standard item

$80.00/ 顆~~Was $110.00~~-27%

Payment Options: FPSFlexible PaymentBank Transfer
Buyer Protection: Genuine ProductsCompany InvoiceAfter-sales Service

Sold by

JACO自營旗艦店

自營

The KING TONY 333008S is a 3330S-series SAE 12-point standard socket with a 1/4-inch opening and a 3/8-inch square drive. Its overall length is 27 mm. Match the opening to the fastener and the drive to your hand tool. This listing is for one socket, not a socket set.

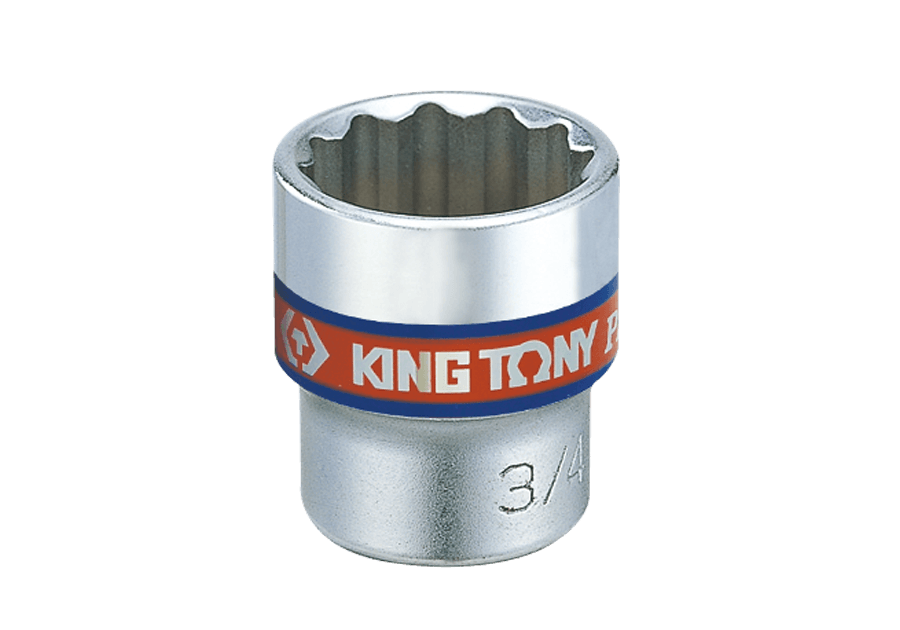

KING TONY 3330S-series 12-point standard socket representative photo marked 3/4 inch; listed 333008S is 1/4 inch with 3/8-inch drive, one socket — Manufacturer-supplied 3330S-series representative photograph: the pictured socket is marked 3/4 inch, not the actual size of model 333008S. This listing is the 1/4-inch socket with a 3/8-inch drive, sold individually.

Features and tool selection

Chrome vanadium alloy steel with a polished, chrome-plated finish.
12-point 1/4-inch opening; the separate 3/8-inch measurement identifies the square drive.
The manufacturer lists a four-ball-groove positioning design and ANSI/ASME B107.1.
Standard-length format. Check both the fastener size and the drive interface before choosing a socket.

KING TONY 3330S-series socket section drawing labelled D1, D2, ℓ and L; 333008S overall length 27 mm and opening depth 7 mm — Manufacturer 3330S-series dimensional reference: D1 is the opening-end outside diameter, D2 the drive-end outside diameter, ℓ the opening depth and L the overall length. The drawing is not to scale for 333008S; use the model-specific values below.

Specifications

Brand	KING TONY
Model	333008S
Series	3330S
Square drive	3/8 inch
Opening size	1/4 inch (SAE)
Opening profile	12-point
Format	Standard-length socket
Overall length L	27 mm
Opening-end outside diameter D1	10.0 mm
Drive-end outside diameter D2	17.8 mm
Opening depth ℓ	7.0 mm
Weight	24 g
Material	Chrome vanadium alloy steel
Finish	Polished and chrome plated
Manufacturer-listed standard	ANSI/ASME B107.1
Selling unit	One socket

What's in the Box

333008S 1/4-inch SAE 12-point standard socket ×1 (3/8-inch drive)
