KING TONY 333007M 3/8-inch Drive 7 mm 12-Point Standard Socket

Brand: KING TONY
Manufacturer model number: 333007M
Order code: Y8EN9BD
MOQ: 1 顆
Supply status: In Stock
Selected configuration: Standard item

$80.00/ 顆~~Was $110.00~~-27%

Payment Options: FPSFlexible PaymentBank Transfer
Buyer Protection: Genuine ProductsCompany InvoiceAfter-sales Service

Sold by

JACO自營旗艦店

自營

The KING TONY 333007M is a 7 mm metric 12-point standard socket with a 3/8-inch square drive and a 27 mm overall length. Use it with a compatible hand ratchet or socket tool for matching nuts and bolts. This offer is for one socket, not a multi-size set.

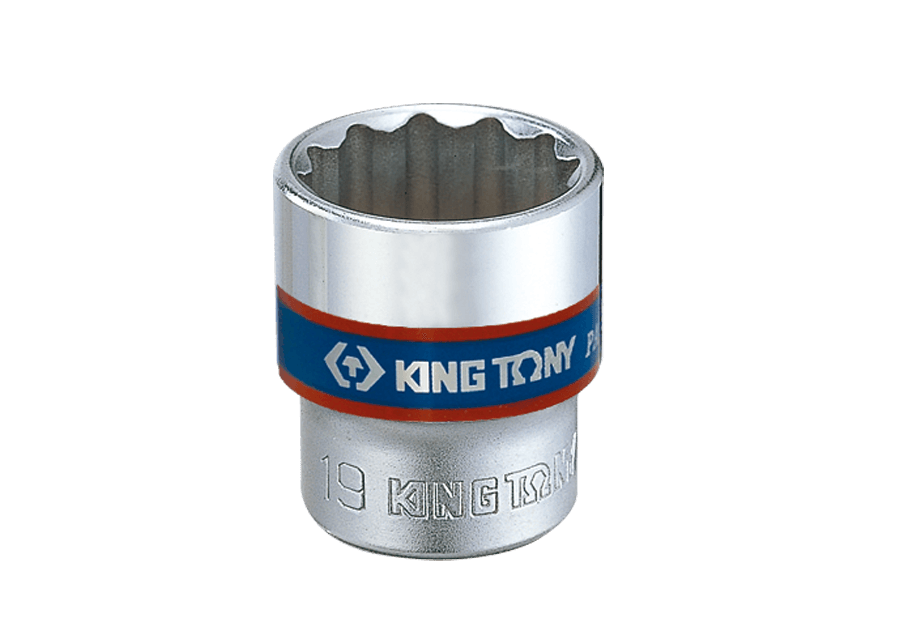

KING TONY 3330M-series representative photo marked 19 mm; this listing is one 333007M 3/8-inch-drive 7 mm 12-point standard socket. — Manufacturer's 3330M-series representative image: the pictured socket is marked 19 mm, not an exact 7 mm product photograph. This listing is the 333007M 3/8-inch-drive 7 mm 12-point standard socket, sold individually.

Features

7 mm metric 12-point opening for matching fastener sizes.
Chrome vanadium alloy steel with a polished, chrome-plated finish.
Four ball-detent grooves at the square-drive end for compatible drive tools.
The manufacturer lists DIN 3124 and ISO 2725-1 reference standards.

KING TONY 3330M-series dimension-location diagram; 333007M is 7 mm, D1 10.8 mm, D2 17.8 mm, l 7.0 mm and L 27 mm. — Manufacturer's 3330M-series dimension-location diagram, not a physical photograph or a scale drawing of this exact model. Use the table below for the 333007M dimensions.

Specifications

Model	333007M
Square drive	3/8 inch
Metric opening	7 mm
Profile	12-point standard socket
Socket-end outside diameter D1	10.8 mm
Drive-end outside diameter D2	17.8 mm
Working-end depth l	7.0 mm
Overall length L	27 mm
Weight	24 g
Material and finish	Chrome vanadium alloy steel; polished and chrome plated
Reference standards	DIN 3124; ISO 2725-1
Sales unit	One socket

What's in the Box

KING TONY 333007M 7 mm 12-point standard socket ×1
