KING TONY 323530S 3/8" Drive 15/16" 6-Point Deep Socket

Brand: KING TONY
Manufacturer model number: 323530S
Order code: Y8E5ULM
MOQ: 1 顆
Supply status: In Stock
Selected configuration: Standard item

$240.00/ 顆~~Was $340.00~~-29%

Payment Options: FPSFlexible PaymentBank Transfer
Buyer Protection: Genuine ProductsCompany InvoiceAfter-sales Service

Sold by

JACO自營旗艦店

自營

The KING TONY 323530S is a 15/16-inch six-point deep socket with a 3/8-inch square drive and a 63 mm overall length. Match it with a ratchet or extension of the same drive size for the corresponding inch-size nuts and bolts. This listing is for one socket, not a socket set.

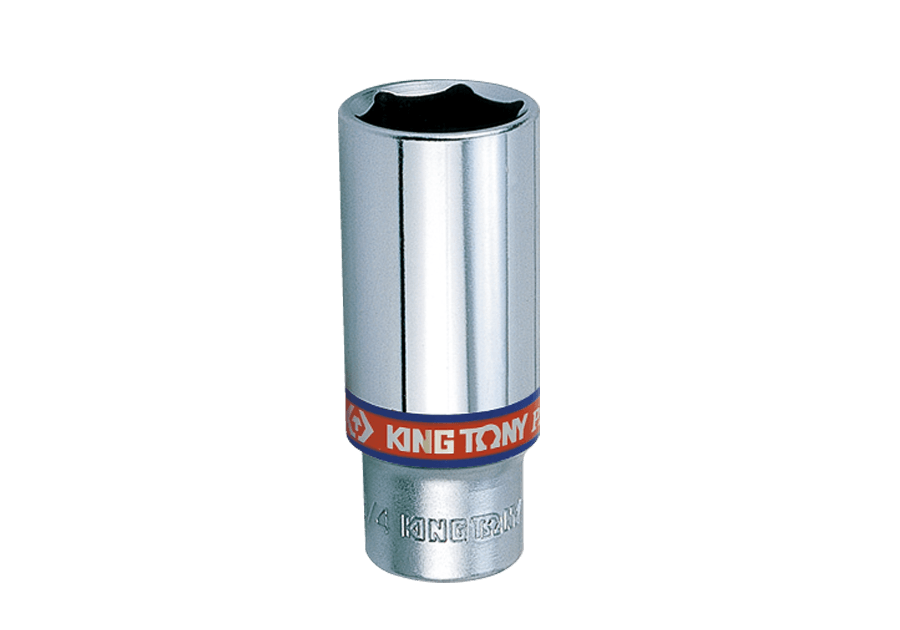

KING TONY 3235S-series representative deep socket, not an exact-size photograph of the 15/16-inch 323530S; this listing has 3/8-inch drive and is sold individually — Manufacturer-supplied KING TONY 3235S-series representative image; the size markings on the pictured tool may differ. This listing is model 323530S: 3/8-inch drive, 15/16-inch six-point deep socket, sold individually.

FeaturesDeep six-point profile and four ball-retaining grooves

The 15/16-inch six-point opening is paired with a deep 63 mm body. Chrome vanadium alloy steel receives a polished, chrome-plated finish. The drive end has four ball-retaining grooves, and the manufacturer lists ANSI/ASME B107.1 as the applicable standard.

KING TONY 3235S-series sectional diagram labelled D1, D2, l and L; see the specification table for the exact 323530S 15/16-inch values — Manufacturer 3235S-series sectional dimension diagram: D1 is the socket-end outside diameter, D2 the drive-end outside diameter, l the internal depth and L the overall length. The exact 323530S values are listed in the specification table below.

Specifications

Model	323530S
Square drive	3/8"
Six-point size	15/16"
Overall length L	63 mm
Socket-end outside diameter D1	31.8 mm
Drive-end outside diameter D2	26.0 mm
Internal depth l	22.0 mm
Weight	182 g
Material	Chrome vanadium alloy steel
Finish	Polished, chrome plated
Standard	ANSI/ASME B107.1
Selling unit	1 socket

What's in the Box

323530S 3/8-inch drive, 15/16-inch six-point deep socket ×1

Reviews & Q&A

No reviews yet. Be the first to review this product.

Recently viewed

FeaturesDeep six-point profile and four ball-retaining grooves

Specifications

Model	323530S
Square drive	3/8"
Six-point size	15/16"
Overall length L	63 mm
Socket-end outside diameter D1	31.8 mm
Drive-end outside diameter D2	26.0 mm
Internal depth l	22.0 mm
Weight	182 g
Material	Chrome vanadium alloy steel
Finish	Polished, chrome plated
Standard	ANSI/ASME B107.1
Selling unit	1 socket

What's in the Box

323530S 3/8-inch drive, 15/16-inch six-point deep socket ×1

JACO自營旗艦店

KING TONY 323530S 3/8" Drive 15/16" 6-Point Deep Socket

JACO自營旗艦店

Reviews & Q&A

Similar products

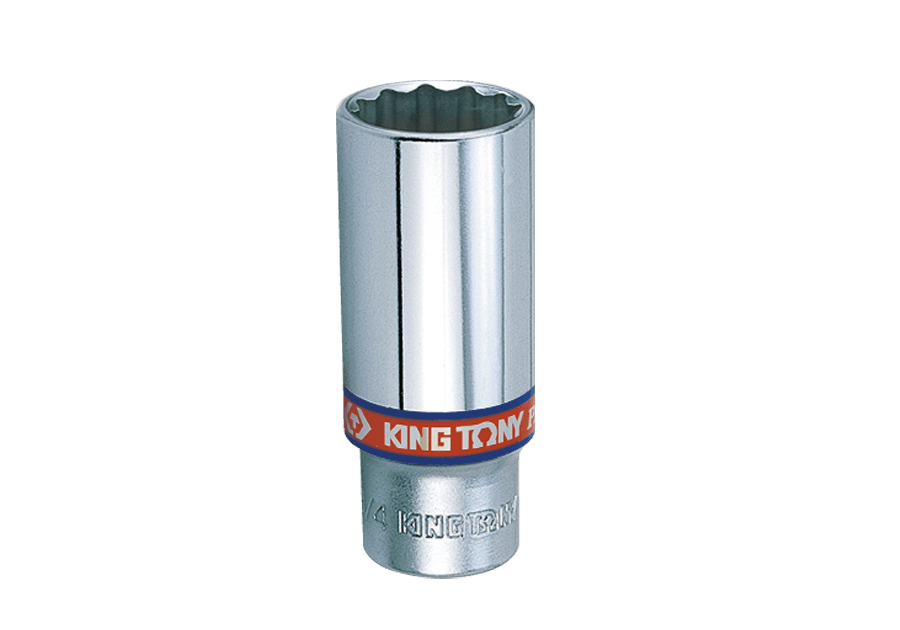

KING TONY 323030S 3/8 in Drive 15/16 in 12-Point Deep Socket
