KING TONY 323528S 3/8-in Drive 7/8-in 6-Point Deep Socket

Brand: KING TONY
Manufacturer model number: 323528S
Order code: Y8EFPSC
MOQ: 1 顆
Supply status: In Stock
Selected configuration: Standard item

$200.00/ 顆~~Was $290.00~~-31%

Payment Options: FPSFlexible PaymentBank Transfer
Buyer Protection: Genuine ProductsCompany InvoiceAfter-sales Service

Sold by

JACO自營旗艦店

自營

The KING TONY 323528S is the 7/8-inch SAE 6-point deep socket in the 3235S family, with a 3/8-inch square drive. Its 63 mm deep body is intended for applications requiring a deep socket on hexagonal fasteners. This listing is for one socket, not a socket set.

Features and use

7/8-inch hexagonal opening and 3/8-inch square drive: check the fastener size and hand-tool drive size separately.
Chrome-vanadium alloy steel with a polished, chrome-plated finish.
Four ball-detent grooves; the manufacturer lists ANSI/ASME B107.1.
A hand-tool deep socket, not an impact socket.

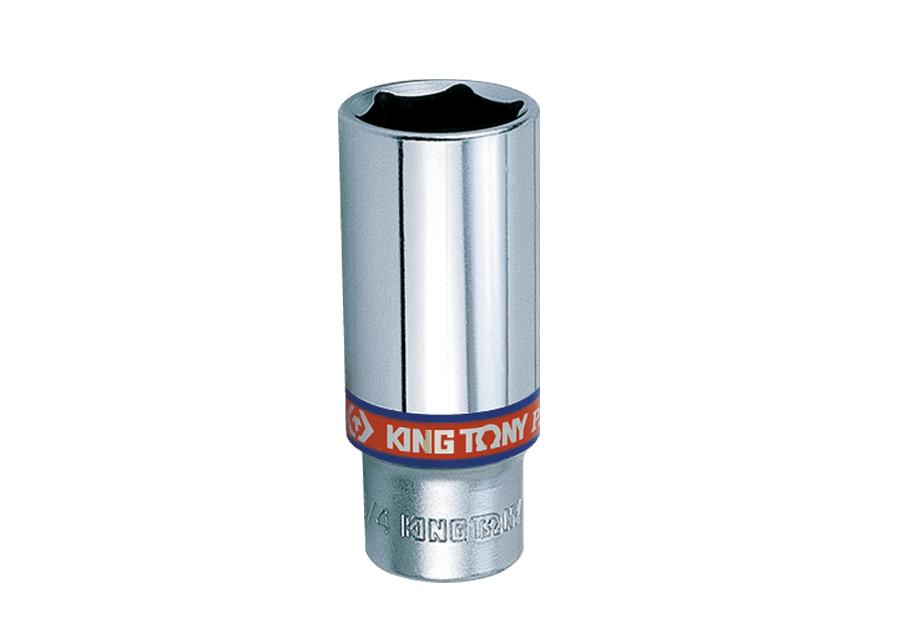

Manufacturer KING TONY 3235S SAE deep-socket representative photo; size markings may differ. This listing is the 323528S, 7/8-inch opening, 3/8-inch drive, sold individually. — This is the manufacturer’s representative 3235S-series photograph, not an exact-size photograph of the 323528S. The pictured size markings may differ. This listing is the 7/8-inch opening, 3/8-inch square-drive socket, 63 mm long, sold individually.

KING TONY 3235S-series section diagram defining D1, D2, l and L; see the specification table for the actual 323528S dimensions. — The shared series diagram defines the dimensions; it is not a physical product photograph or a scale drawing of the 323528S. The model-specific D1, D2, l and L values are listed below.

Specifications

Model	323528S
Series	3235S
Square drive	3/8 inch
Socket opening	7/8 inch (SAE)
Profile	6-point hexagonal
Socket form	Deep socket
D1 (working-end outside diameter)	29.7 mm
D2 (drive-end outside diameter)	26.0 mm
l (working-end internal length shown)	21.0 mm
L (overall length)	63 mm
Weight	166 g
Material	Chrome-vanadium alloy steel
Finish	Polished and chrome-plated
Retention design	Four ball-detent grooves
Manufacturer-listed standard	ANSI/ASME B107.1
Sale unit	One socket

What's in the Box

323528S 7/8-inch 6-point deep socket ×1 (3/8-inch square drive)
