KING TONY 333522S 3/8-inch Drive 11/16-inch 6-Point Standard Socket
Hand Tools
$120.00/ 顆
$170.00
No downloads available yet
Contact JACO if you need a datasheet, certificate or another technical document.

$190.00/ 顆Was $270.00-30%

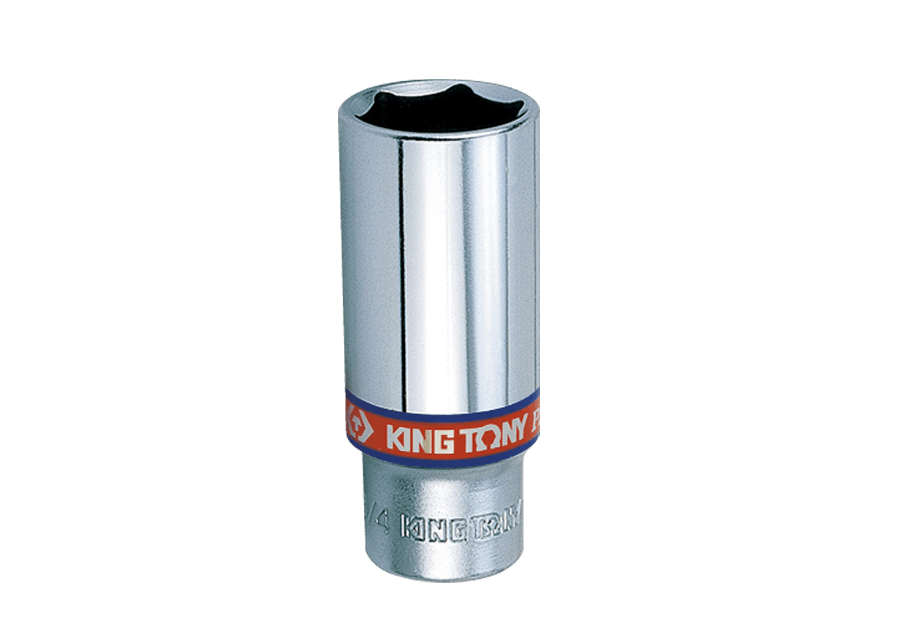

The KING TONY 323522S is an imperial deep 6-point socket in the 3235S family, sized for 11/16-inch hex nuts and bolt heads. It connects to a matching 3/8-inch square-drive hand tool. An overall length of 63 mm and a socket depth of 18 mm help identify the right size for the working position. This listing is for one socket.


| Brand | KING TONY |
|---|---|
| Model | 323522S |
| Series | 3235S |
| Square drive | 3/8 inch |
| Socket size | 11/16 inch (imperial) |
| Opening | 6-point hexagonal |
| Overall length L | 63 mm |
| Socket depth ℓ | 18.0 mm |
| Opening-end outside diameter D1 | 23.8 mm |
| Drive-end outside diameter D2 | 20.0 mm |
| Weight | 97 g |
| Material | Chrome vanadium alloy steel |
| Finish | Polished, chrome-plated |
| Retention | Four ball-retaining grooves |
| Manufacturer-specified standard | ANSI/ASME B107.1 |
| Selling unit | One socket |
