KING TONY 323518S 3/8-Inch Drive 9/16-Inch 6-Point Deep Socket

Brand: KING TONY
Manufacturer model number: 323518S
Order code: Y8EWCZV
MOQ: 1 顆
Supply status: In Stock
Selected configuration: Standard item

$160.00/ 顆~~Was $230.00~~-30%

Payment Options: FPSFlexible PaymentBank Transfer
Buyer Protection: Genuine ProductsCompany InvoiceAfter-sales Service

Sold by

JACO自營旗艦店

自營

The KING TONY 323518S is a 9/16-inch, six-point deep socket for 3/8-inch square-drive tools. Its 63 mm overall length provides a deep configuration for fastening work requiring a longer socket. Check both the fastener size and drive size before use.

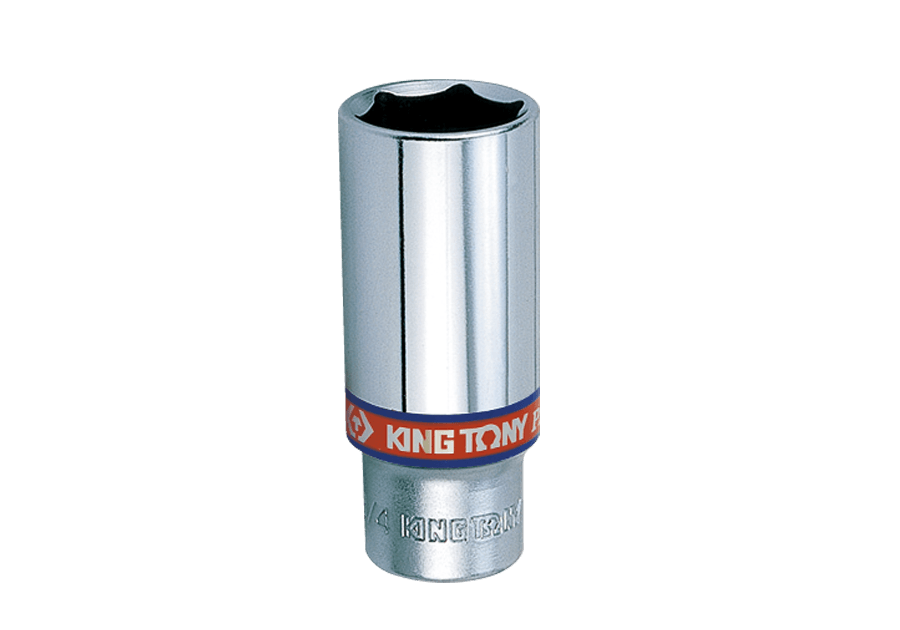

KING TONY 3235S-series six-point deep socket representative photo, not an exact-size photo; model 323518S is 3/8-inch drive, 9/16 inch, sold individually. — Manufacturer's KING TONY 3235S-series representative photo, not an exact-size photo. The pictured size marking may differ. This listing is model 323518S: 3/8-inch drive, 9/16-inch six-point deep socket, sold individually.

Six-point deep socket construction

Six-point working end in the 9/16-inch imperial size.
Chrome vanadium alloy steel with a polished, chrome-plated finish.
Four ball-retaining grooves for tool detent engagement.
Manufacturer specification references ANSI/ASME B107.1.

KING TONY 3235S-series socket cross-section dimension diagram showing D1, D2, l and L; see the 323518S specification table for actual measurements. — The image below is a 3235S-series cross-section dimension diagram, not a product photograph. D1, D2, l and L identify measurement positions; the actual 323518S values are in the specification table.

Specifications

Brand	KING TONY
Model	323518S
Drive size	3/8 inch
Socket size	9/16 inch
Working end	6-point
Outside diameter D1	19.7 mm
Outside diameter D2	18.0 mm
Working depth l	16.0 mm
Overall length L	63 mm
Weight	76 g
Material	Chrome vanadium alloy steel
Finish	Polished, chrome plated
Retention	Four ball-retaining grooves
Standard	ANSI/ASME B107.1
Sales unit	One socket (顆)

What's in the Box

323518S 9/16-inch six-point deep socket × 1.

Reviews & Q&A

No reviews yet. Be the first to review this product.

Recently viewed

Six-point deep socket construction

Six-point working end in the 9/16-inch imperial size.
Chrome vanadium alloy steel with a polished, chrome-plated finish.
Four ball-retaining grooves for tool detent engagement.
Manufacturer specification references ANSI/ASME B107.1.

Specifications

Brand	KING TONY
Model	323518S
Drive size	3/8 inch
Socket size	9/16 inch
Working end	6-point
Outside diameter D1	19.7 mm
Outside diameter D2	18.0 mm
Working depth l	16.0 mm
Overall length L	63 mm
Weight	76 g
Material	Chrome vanadium alloy steel
Finish	Polished, chrome plated
Retention	Four ball-retaining grooves
Standard	ANSI/ASME B107.1
Sales unit	One socket (顆)

What's in the Box

323518S 9/16-inch six-point deep socket × 1.

JACO自營旗艦店

KING TONY 323518S 3/8-Inch Drive 9/16-Inch 6-Point Deep Socket

JACO自營旗艦店

Reviews & Q&A

Similar products

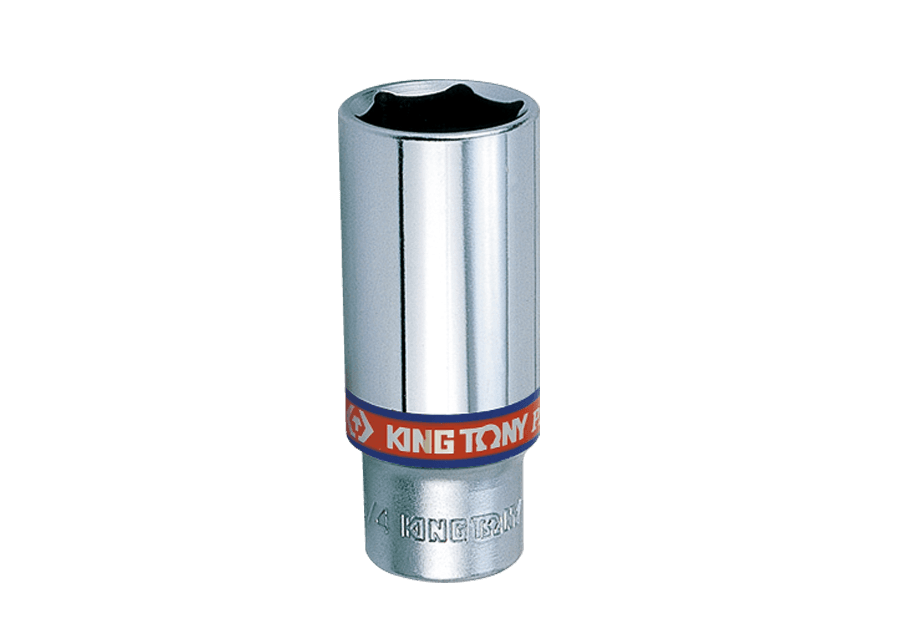

KING TONY 323516S 1/2-Inch Deep 6-Point Socket, 3/8-Inch Drive
