KING TONY 323514S 3/8-Inch Drive 7/16-Inch 6-Point Deep Socket

Brand: KING TONY
Manufacturer model number: 323514S
Order code: Y8EH2NY
MOQ: 1 顆
Supply status: In Stock
Selected configuration: Standard item

$160.00/ 顆~~Was $230.00~~-30%

Payment Options: FPSFlexible PaymentBank Transfer
Buyer Protection: Genuine ProductsCompany InvoiceAfter-sales Service

Sold by

JACO自營旗艦店

自營

The KING TONY 323514S is a 7/16-inch imperial 6-point deep socket with a 3/8-inch square drive and a 63 mm overall length. Its six-point opening fits matching imperial hex fasteners. Check both the drive size and the fastener size before selecting a socket. This listing is for one socket, not a multi-size set.

Features

7/16-inch imperial six-point opening with a 3/8-inch square drive.
Chrome vanadium alloy steel with a polished, chrome-plated finish.
Four ball-detent grooves for engagement with the drive tool detent.
Manufacturer specifies ANSI/ASME B107.1.

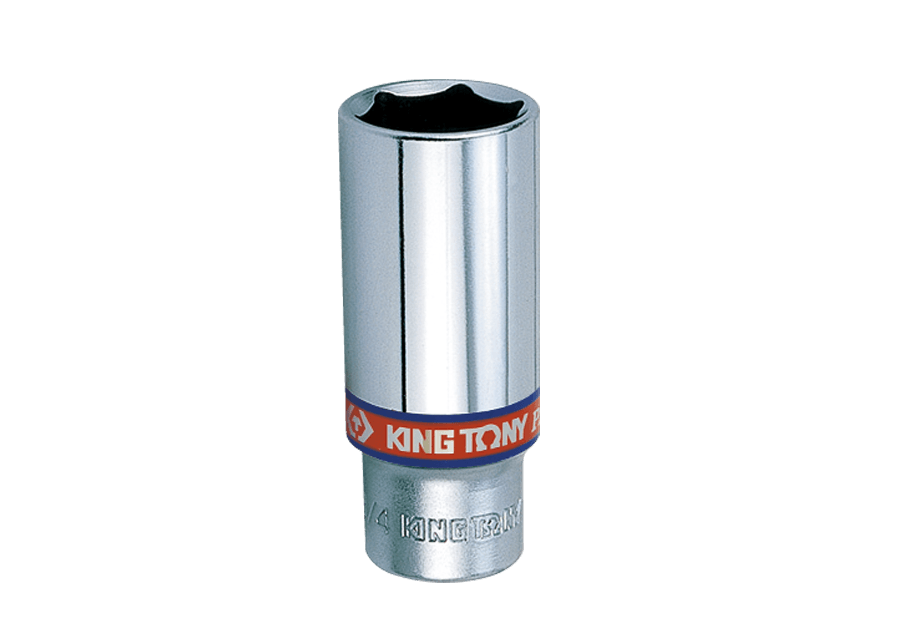

Manufacturer 3235S-series deep-socket representative image; size markings may differ. The 323514S offered here is 7/16 inch with a 3/8-inch drive, sold individually — This is the manufacturer's 3235S-series representative image, not an exact 7/16-inch photograph of the 323514S. Visible size markings may differ. The socket offered here is 7/16 inch with a 3/8-inch square drive and a 63 mm overall length; the price is for one socket.

Specifications

Brand	KING TONY
Model	323514S
Square drive	3/8 inch
Socket opening	7/16 inch (imperial)
Profile	6-point
Style	Deep socket
Socket-end outside diameter D1	15.8 mm
Drive-end outside diameter D2	17.8 mm
Hex opening depth ℓ	15.0 mm
Overall length L	63 mm
Weight	59 g
Material	Chrome vanadium alloy steel
Finish	Polished and chrome plated
Retention design	Four ball-detent grooves
Manufacturer-stated standard	ANSI/ASME B107.1
Selling unit	1 socket

Manufacturer 3235S-series socket section drawing showing D1, D2, ℓ and L; see the specification table for the 323514S values — The manufacturer's series section drawing identifies dimension symbols; it is not a to-scale product photograph. For the 323514S, D1 is 15.8 mm, D2 is 17.8 mm, ℓ is 15.0 mm and L is 63 mm.

Package contents

323514S 7/16-inch imperial 6-point deep socket ×1
