KING TONY 323014M 3/8 in Drive 14 mm 12-Point Metric Deep Socket
Hand Tools
$160.00/ 顆
No downloads available yet
Contact JACO if you need a datasheet, certificate or another technical document.

$160.00/ 顆
The KING TONY 323514M is a 14 mm metric six-point deep socket with a 3/8-inch square drive, in the manufacturer's hand socket range. It is 63 mm long and weighs 77 g. Match the fastener's across-flats dimension and your tool's square drive before selecting this socket.

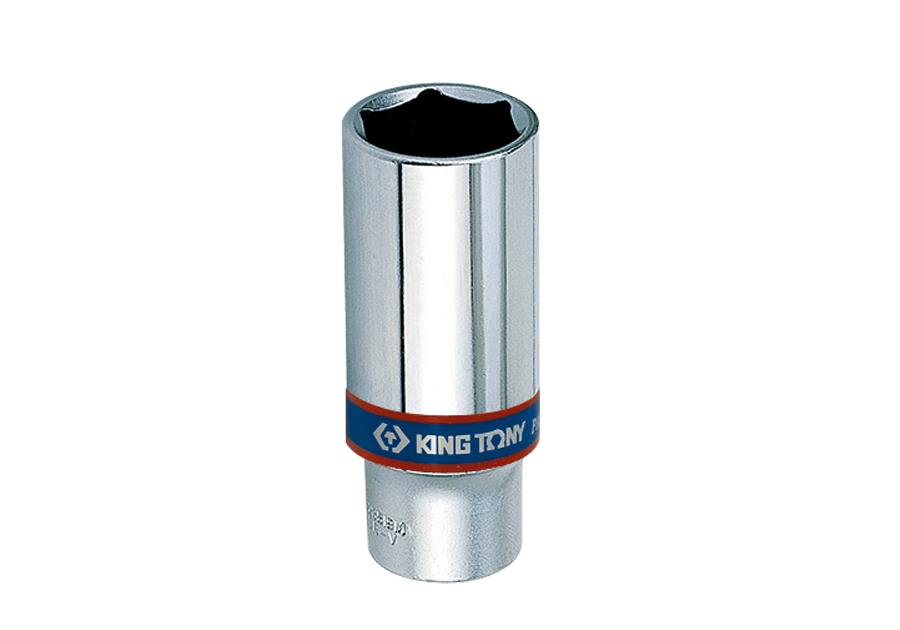

The image represents the 3235M family. The supplied specification is model 323514M, 14 mm.
| Brand | KING TONY |
|---|---|
| Model | 323514M |
| Square drive | 3/8 inch |
| Socket size | 14 mm, metric six-point |
| Overall length L | 63 mm |
| Socket-end outside diameter D1 | 19.7 mm |
| Drive-end outside diameter D2 | 18.0 mm |
| Internal socket length ℓ | 16.0 mm |
| Weight | 77 g |
| Material | Chrome vanadium alloy steel |
| Finish | Polished and chrome plated |
| Manufacturer's design references | DIN 3124, ISO 2725-1 |
Sold per individual socket; one priced unit contains one socket.
