KING TONY 323510S 3/8-Inch Drive 5/16-Inch Deep Six-Point Socket

Brand: KING TONY
Manufacturer model number: 323510S
Order code: Y8EZAXA
MOQ: 1 顆
Supply status: In Stock
Selected configuration: Standard item

$160.00/ 顆~~Was $230.00~~-30%

Payment Options: FPSFlexible PaymentBank Transfer
Buyer Protection: Genuine ProductsCompany InvoiceAfter-sales Service

Sold by

JACO自營旗艦店

自營

KING TONY 323510S is an imperial deep six-point socket with a 5/16-inch opening and a 3/8-inch square drive. Its 63 mm overall length is specified for selecting the correct socket for the fastener and working space. This listing is for one socket.

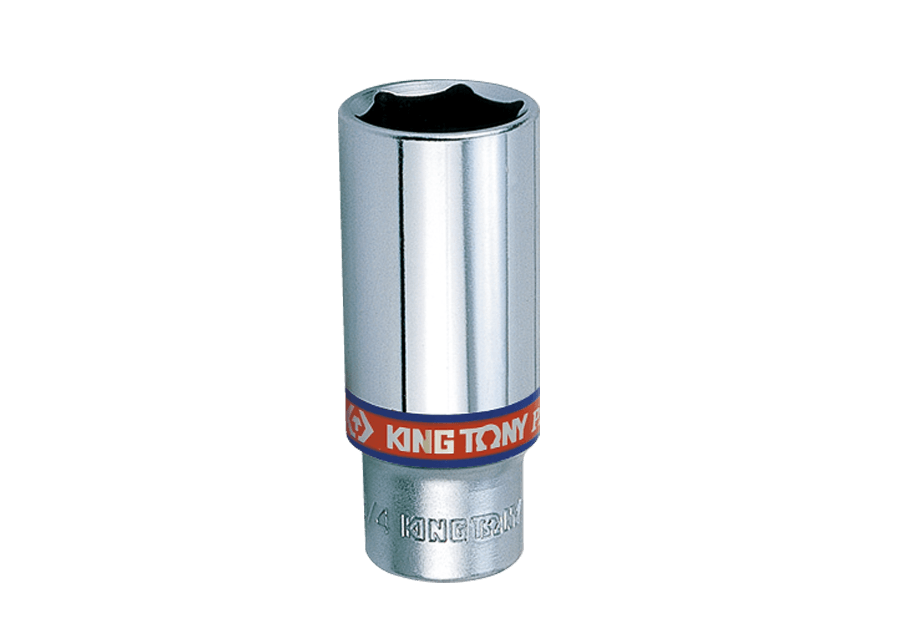

KING TONY 3235S-series representative deep six-point socket photo, engraved 1/4; this 323510S listing is 5/16 inch with 3/8-inch drive, sold individually — Manufacturer-supplied KING TONY 3235S-series representative photo; the pictured socket is engraved 1/4 and is not an exact 5/16-inch product photo. This listing is model 323510S, 5/16 inch with 3/8-inch drive, sold individually.

Features

5/16-inch imperial six-point opening with 3/8-inch square drive.
Chrome vanadium alloy steel with a polished, chrome-plated finish.
Four-ball retaining grooves.
The manufacturer lists ANSI/ASME B107.1 as the applicable standard.

Specifications

Brand	KING TONY
Model	323510S
Type	Imperial deep six-point socket
Square drive	3/8 inch
Opening size	5/16 inch
Socket profile	Six-point
Working-end outside diameter D1	12.0 mm
Drive-end outside diameter D2	17.8 mm
Diagram dimension l	12.0 mm
Overall length L	63 mm
Weight	56 g
Material	Chrome vanadium alloy steel
Finish	Polished and chrome plated
Retaining design	Four-ball retaining grooves
Manufacturer-listed standard	ANSI/ASME B107.1
Selling unit	One socket

KING TONY 3235S-series deep socket dimension diagram labelled D1, D2, l and L; see the 323510S specification table for actual dimensions — This manufacturer 3235S-series dimension diagram illustrates the positions of D1, D2, l and L. Use the specification table above for the actual 323510S dimensions.

What's in the Box

323510S 5/16-inch imperial deep six-point socket × 1
