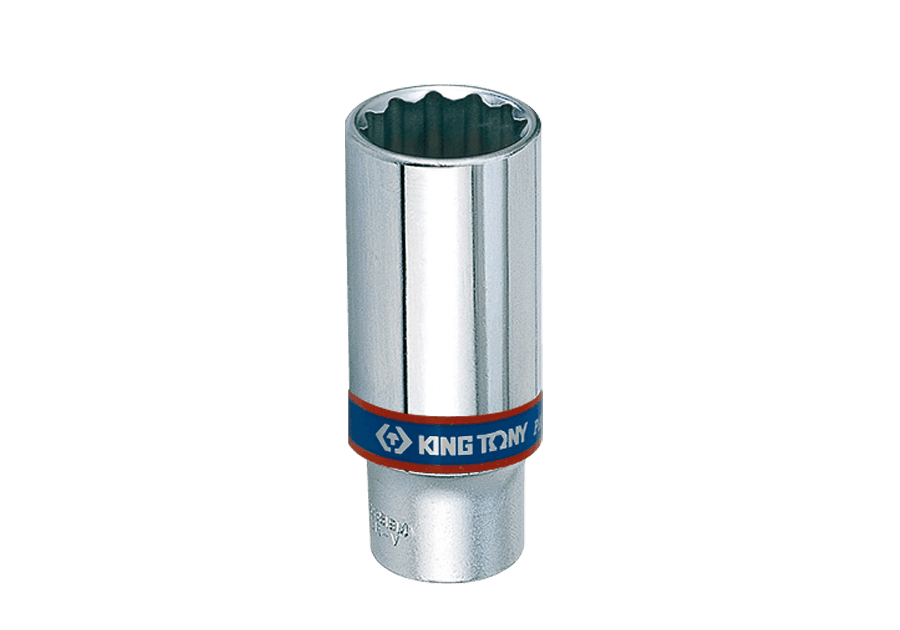

KING TONY 323010M 3/8-inch Drive 10 mm 12-Point Deep Socket
Hand Tools
$160.00/ 顆
$230.00
No downloads available yet
Contact JACO if you need a datasheet, certificate or another technical document.

$160.00/ 顆Was $230.00-30%
The KING TONY 323510M is the 10 mm metric six-point deep socket in the 3235M series, for use with compatible 3/8-inch square-drive hand tools. Its overall length is 63 mm. Check the fastener size, drive size and available working clearance before selecting this socket; the offer is one socket, not a multi-size set.


| Brand | KING TONY |
|---|---|
| Model | 323510M |
| Series | 3235M |
| Type | Metric 6-point deep socket |
| Square drive | 3/8 inch |
| Socket size | 10 mm |
| Profile | 6-point |
| Working-end outside diameter D1 | 14.5 mm |
| Drive-end outside diameter D2 | 17.8 mm |
| Hex recess depth ℓ | 12.0 mm |
| Overall length L | 63 mm |
| Weight | 58 g |
| Material | Chrome vanadium alloy steel |
| Finish | Polished, chrome-plated |
| Retention design | Four ball grooves |
| Manufacturer-listed standards | DIN 3124, ISO 2725-1 |
| Selling unit | One socket, sold individually |
