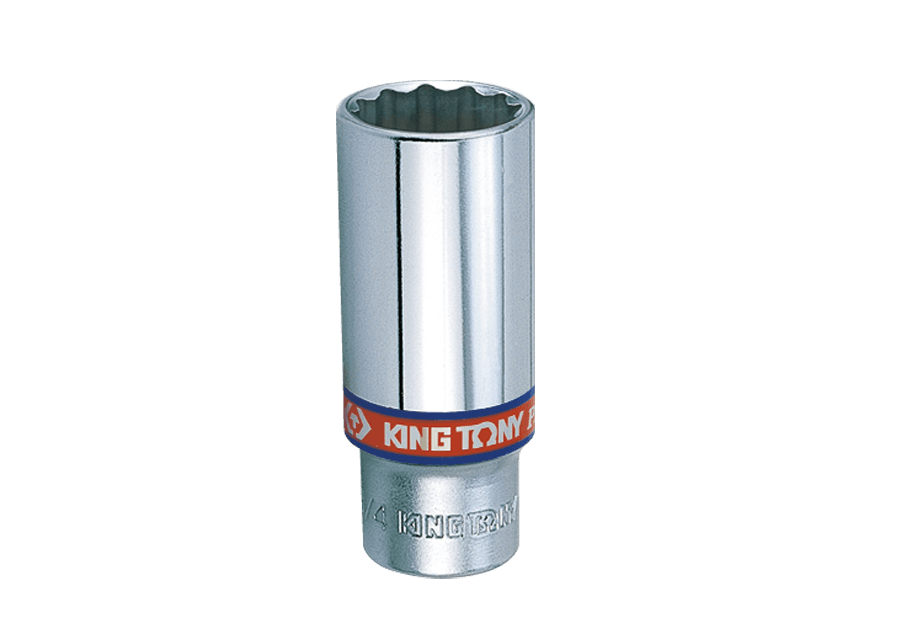

KING TONY 323008S 3/8-Inch Drive 1/4-Inch 12-Point Deep Socket
Hand Tools
$210.00
No downloads available yet
Contact JACO if you need a datasheet, certificate or another technical document.

$150.00/ 顆Was $210.00-29%
The KING TONY 323508S is a 1/4-inch SAE 6-point deep socket with a 3/8-inch square drive and a 63 mm overall length. Its deep body is intended for use with a matching drive tool on recessed hex fasteners. This listing is for one socket.

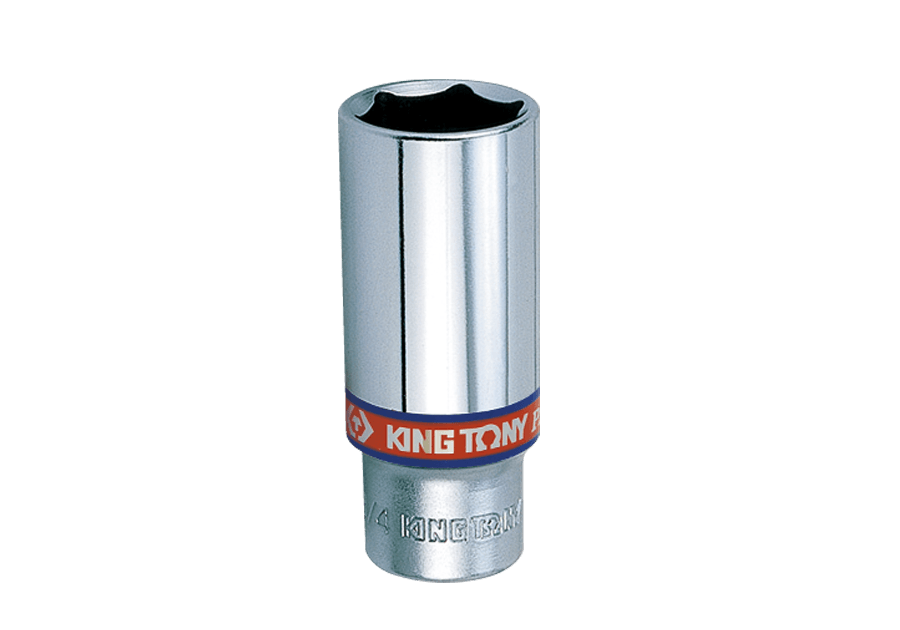

Manufacturer's 3235S-series representative image; size markings may show a different size and it is not a confirmed photograph of the exact model. This listing is model 323508S, 1/4-inch size with 3/8-inch drive, sold individually.
| Model | 323508S |
|---|---|
| Square drive | 3/8 inch |
| Socket size / profile | 1/4 inch / 6-point |
| Working-end diameter D1 | 10.0 mm |
| Drive-end diameter D2 | 16.8 mm |
| Working-end depth ℓ | 10.0 mm |
| Overall length L | 63 mm |
| Manufacturer-listed weight | 47 g |
| Material / finish | Chromium-vanadium alloy steel / polished, chrome plated |
| Sales unit | 顆 (one socket) |

The manufacturer's 3235S-series drawing identifies D1, D2, ℓ and L. It is a dimensional illustration, not a product photograph; actual 323508S values are given in the table above.
