KING TONY 323032S 3/8-inch Drive 1-inch 12-Point Deep Socket

Brand: KING TONY
Manufacturer model number: 323032S
Order code: Y8E7RVV
MOQ: 1 顆
Supply status: In Stock
Selected configuration: Standard item

$260.00/ 顆~~Was $370.00~~-30%

Payment Options: FPSFlexible PaymentBank Transfer
Buyer Protection: Genuine ProductsCompany InvoiceAfter-sales Service

Sold by

JACO自營旗艦店

自營

The KING TONY 323032S is a 1-inch imperial 12-point deep socket with a 3/8-inch square drive. Its overall length is 63 mm. Pair it with a compatible manual ratchet or extension when a deeper socket is required for the fastening task. This listing is for one socket, not a socket wrench set.

Features

1-inch imperial, 12-point socket opening.
Chrome vanadium alloy steel with a polished, chrome-plated finish.
Four detent grooves for use with compatible 3/8-inch square-drive tools.
Manufacturer specifies ANSI/ASME B107.1.

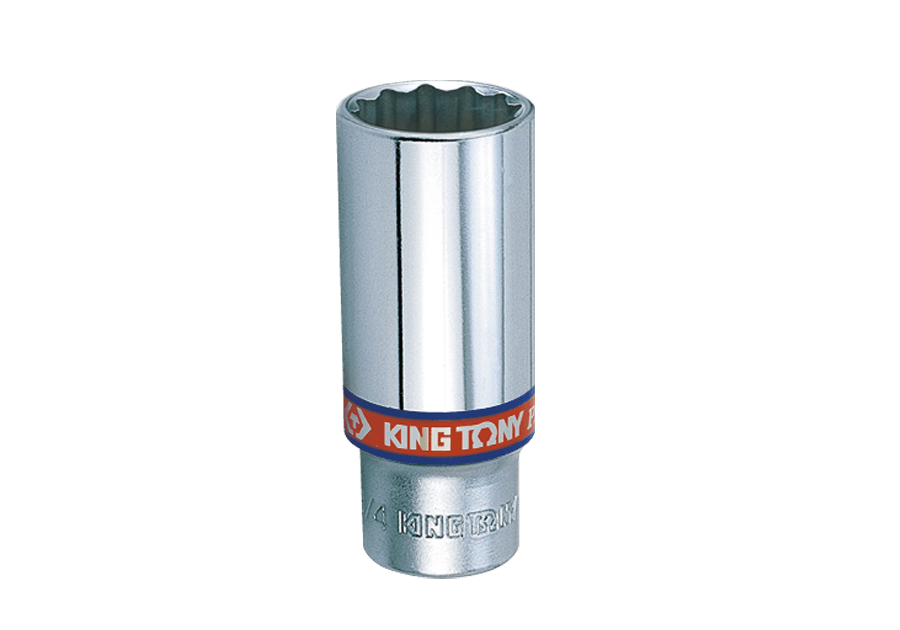

Manufacturer 3230S-series 12-point deep socket representative photo, showing a 14 marking; this 323032S listing is 1 inch with a 3/8-inch drive, sold individually. — Manufacturer-supplied KING TONY 3230S-series representative image, showing a "14" marking; this is not an exact-size photograph of the 1-inch socket. Markings and proportions may differ. This 323032S listing is a 1-inch 12-point deep socket with a 3/8-inch drive, sold individually.

Manufacturer 3230S-series socket section diagram identifying D1, D2, l and L; exact 323032S dimensions are listed in the specification table. — Manufacturer 3230S-series section diagram illustrating D1, D2, l and L, without numeric dimensions. Use the specification table below for the exact 323032S measurements.

Specifications

Brand	KING TONY
Model	323032S
Series	3230S
Square drive	3/8 inch
Socket size	1 inch (imperial)
Profile and form	12-point deep socket
Working-end outside diameter D1	33.8 mm
Drive-end outside diameter D2	26.0 mm
Working-end depth l	22.0 mm
Overall length L	63 mm
Weight	195 g
Material	Chrome vanadium alloy steel
Finish	Polished, chrome plated
Retention	4 detent grooves
Standard	ANSI/ASME B107.1
Selling unit	1 socket

What's in the Box

KING TONY 323032S 1-inch 12-point deep socket ×1.

Sold individually; this is not a ratchet wrench set.
