KING TONY 323030S 3/8 in Drive 15/16 in 12-Point Deep Socket

Brand: KING TONY
Manufacturer model number: 323030S
Order code: Y8EJMUW
MOQ: 1 顆
Supply status: In Stock
Selected configuration: Standard item

$240.00/ 顆~~Was $340.00~~-29%

Payment Options: FPSFlexible PaymentBank Transfer
Buyer Protection: Genuine ProductsCompany InvoiceAfter-sales Service

Sold by

JACO自營旗艦店

自營

The KING TONY 323030S is an imperial 12-point deep socket with a 3/8-inch square drive and a 15/16-inch socket size. Its overall length is 63 mm. This listing is for one socket, allowing the required imperial size to be selected individually; it is not a socket set.

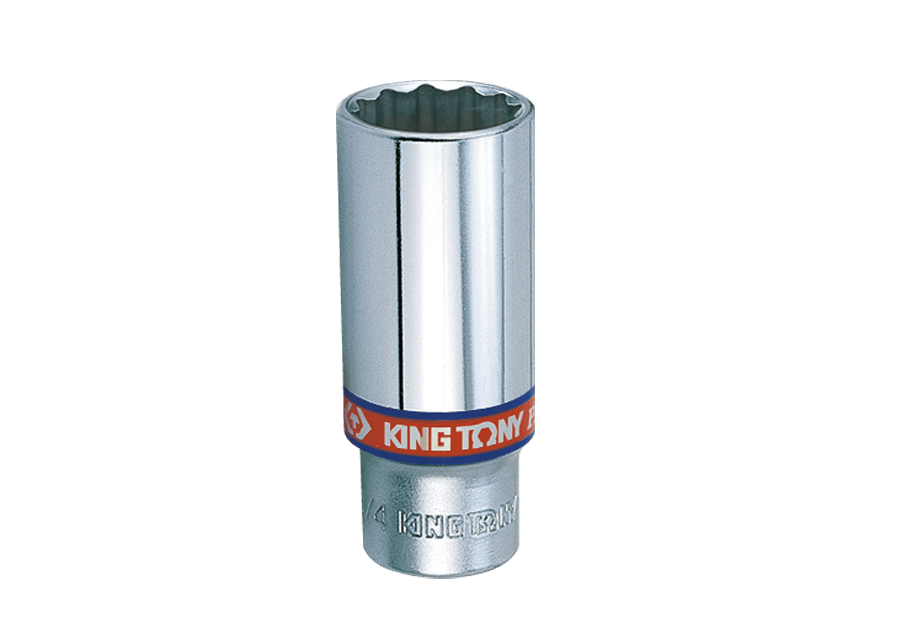

KING TONY 3230S-series representative deep socket; this 323030S listing is 15/16 in with 3/8 in drive, not an exact-size photograph — Manufacturer-supplied 3230S-series representative image, not a verified exact-size photograph of 323030S. This listing is the 15/16-inch deep socket with 3/8-inch square drive and 63 mm overall length, sold individually.

Features

Imperial 12-point opening with 3/8-inch square drive.
Chrome vanadium alloy steel with a polished, chrome-plated finish.
Four detent grooves for positioning.
The manufacturer specifies ANSI/ASME B107.1.

Specifications

Model	323030S
Square drive	3/8 in
Socket size	15/16 in (imperial)
Socket profile	12-point
Socket form	Deep
Working-end outside diameter D1	31.8 mm
Drive-end outside diameter D2	26.0 mm
Working depth l	22.0 mm
Overall length L	63 mm
Weight	170 g
Material	Chrome vanadium alloy steel
Finish	Polished and chrome plated
Positioning	Four detent grooves
Standard	ANSI/ASME B107.1
Sales unit	One socket

Manufacturer 3230S-series socket section drawing showing D1, D2, l and L; see the 323030S table for actual values — Manufacturer series dimension-symbol drawing, not a physical product photograph. For 323030S, D1 is 31.8 mm, D2 is 26.0 mm, l is 22.0 mm and L is 63 mm.

Package contents

323030S 15/16-inch imperial 12-point deep socket ×1
