KING TONY 323028S 3/8 in Drive 7/8 in 12-Point Deep Socket

Brand: KING TONY
Manufacturer model number: 323028S
Order code: Y8EGGMD
MOQ: 1 顆
Supply status: In Stock
Selected configuration: Standard item

$200.00/ 顆~~Was $290.00~~-31%

Payment Options: FPSFlexible PaymentBank Transfer
Buyer Protection: Genuine ProductsCompany InvoiceAfter-sales Service

Sold by

JACO自營旗艦店

自營

The KING TONY 323028S is a 7/8 in SAE 12-point deep socket with a 3/8 in square drive. Its 63 mm overall length suits recessed fasteners when used with matching hand-operated socket tools. This listing is for one socket, not a multi-piece socket set.

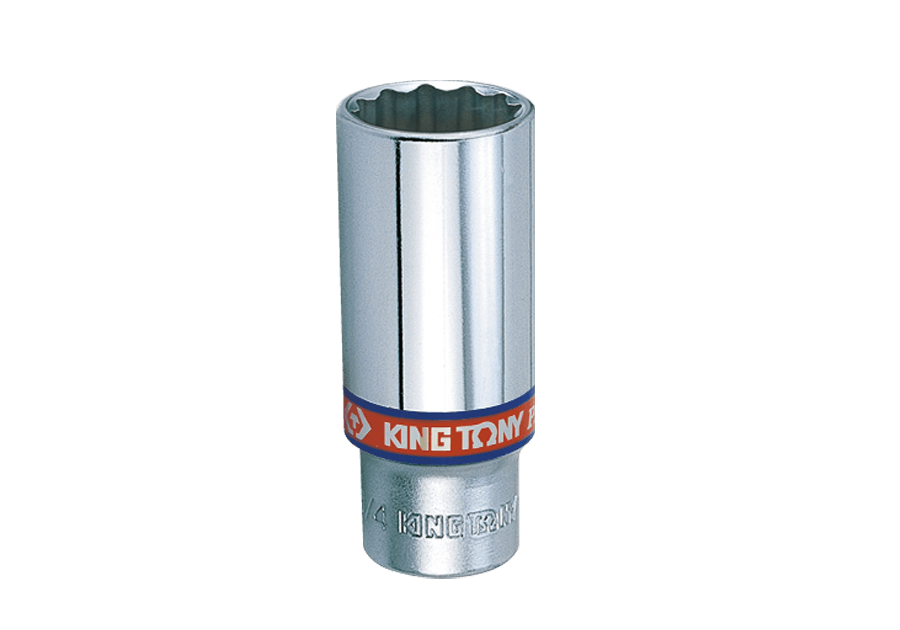

Manufacturer-supplied KING TONY 3230S-series representative image, not an exact-size photograph of 323028S; pictured dimensions or markings may differ. This listing is the 3/8 in drive, 7/8 in 12-point deep socket, 63 mm long, sold individually.

Features

7/8 in SAE 12-point working end with a 3/8 in square drive.
Chrome vanadium alloy steel with a polished, chrome-plated finish.
Four ball grooves provide retention positions at the drive end.
The manufacturer specifies ANSI/ASME B107.1.

Manufacturer 3230S-series section diagram, not a product photograph. D1, D2, ℓ and L are dimension symbols; the exact 323028S values appear in the specification table below.

Specifications

Brand	KING TONY
Model	323028S
Square drive	3/8 in
Socket size	7/8 in, 12-point SAE
Overall length L	63 mm
Socket-end outside diameter D1	29.7 mm
Drive-end outside diameter D2	26.0 mm
Internal depth ℓ	21.0 mm
Weight	158 g
Material and finish	Chrome vanadium alloy steel; polished, chrome plated
Retention	4 ball grooves
Standard	ANSI/ASME B107.1
Sold unit	1 socket

What's in the Box

KING TONY 323028S 7/8 in 12-point deep socket ×1
