KING TONY 323026S 3/8-inch Drive 13/16-inch 12-Point Deep Socket

Brand: KING TONY
Manufacturer model number: 323026S
Order code: Y8E1HK7
MOQ: 1 顆
Supply status: In Stock
Selected configuration: Standard item

$210.00/ 顆~~Was $300.00~~-30%

Payment Options: FPSFlexible PaymentBank Transfer
Buyer Protection: Genuine ProductsCompany InvoiceAfter-sales Service

Sold by

JACO自營旗艦店

自營

The KING TONY 323026S is a 12-point SAE deep socket with a 3/8-inch square drive and a 13/16-inch opening. Its overall length is 63 mm. Match both the drive size of your hand socket tool and the fastener size when selecting this individual socket.

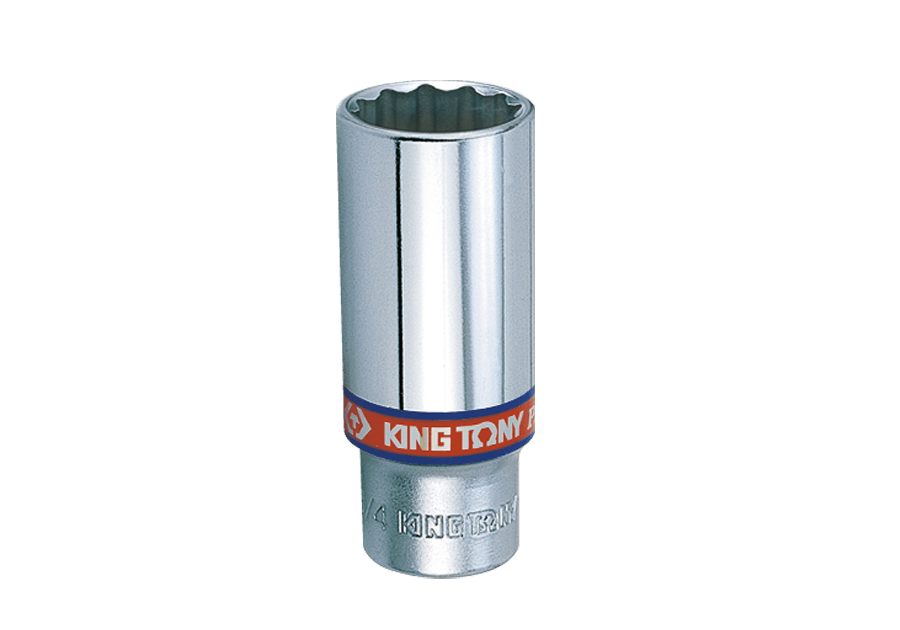

Manufacturer 3230S-series deep 12-point socket image; this 323026S listing is 3/8-inch drive, 13/16 inch; pictured markings may differ — Manufacturer-supplied KING TONY 3230S-series representative image; pictured size markings may differ. This listing is the 323026S, 3/8-inch drive, 13/16-inch 12-point deep socket, 63 mm long, sold individually.

Features

12-point inch opening in a deep-socket design; this model is 13/16 inch.
Chrome vanadium alloy steel with a polished, chrome-plated finish.
Four ball grooves for detent engagement with a compatible square-drive tool.
The manufacturer lists ANSI/ASME B107.1 as the applicable standard.

Manufacturer 3230S-series socket dimension diagram showing D1, D2, ell and L; actual 323026S dimensions are listed in the specification table — Manufacturer 3230S-series cross-section dimension diagram. Actual D1, D2, ell and L values for 323026S are given in the specification table below. This is a dimensional illustration, not an exact-model photograph.

Specifications

Brand	KING TONY
Manufacturer model	323026S
Product SKU	KT-323026S
Square drive	3/8 inch
Socket opening	13/16 inch
Profile	12-point
Configuration	Deep socket
Opening-end outside diameter (D1)	27.8 mm
Drive-end outside diameter (D2)	25.0 mm
Opening depth (ell)	20.0 mm
Overall length (L)	63 mm
Weight	111 g
Material	Chrome vanadium alloy steel
Finish	Polished, chrome plated
Standard	ANSI/ASME B107.1
Selling unit	One individual socket

What's in the Box

323026S 3/8-inch drive 13/16-inch 12-point deep socket ×1
