KING TONY 323524S 3/8 in Drive 3/4 in 6-Point Deep Socket
Hand Tools
$200.00/ 顆
No downloads available yet
Contact JACO if you need a datasheet, certificate or another technical document.

$200.00/ 顆
The KING TONY 323024S is a 3/4-inch, 12-point deep socket for 3/8-inch square-drive hand tools. It measures 63 mm overall and is made from chrome vanadium alloy steel with a polished, chrome-plated finish. Each priced unit is one socket.

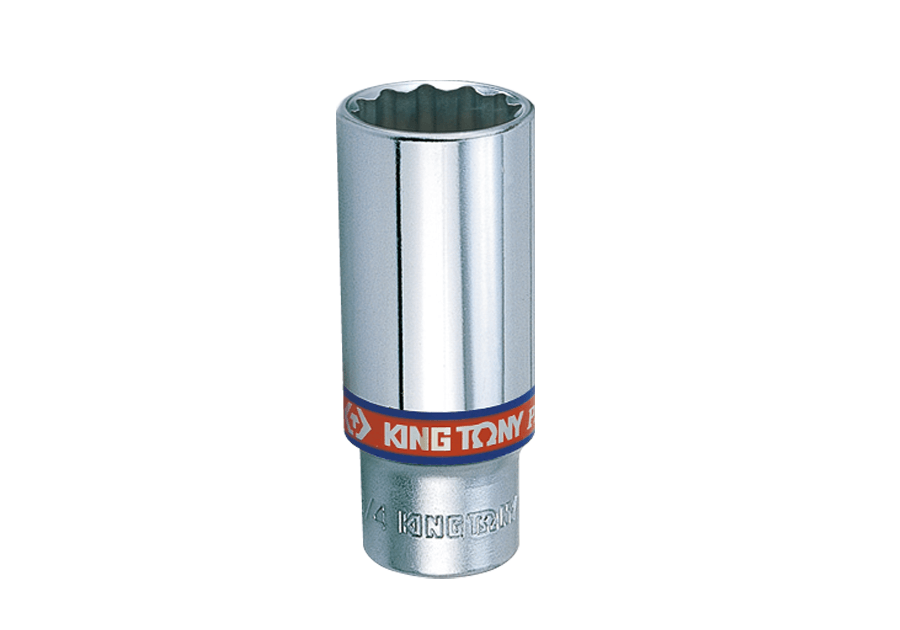

The manufacturer photograph represents the 3230S family. The supplied model is 323024S, with the specifications listed below.
| Brand | KING TONY |
|---|---|
| Model | 323024S |
| Square drive | 3/8 inch |
| Socket size | 3/4 inch (imperial) |
| Profile | 12-point bi-hex |
| Overall length L | 63 mm |
| Socket-end outside diameter D1 | 25.8 mm |
| Drive-end outside diameter D2 | 21.0 mm |
| Diagram dimension ℓ | 20.0 mm |
| Weight | 98 g |
| Material | Chrome vanadium alloy steel |
| Finish | Polished, chrome plated |
| Manufacturer-listed standard | ANSI/ASME B107.1 |
