KING TONY 323022S 3/8-Inch Drive 11/16-Inch 12-Point Deep Socket

Brand: KING TONY
Manufacturer model number: 323022S
Order code: Y8EKYK3
MOQ: 1 顆
Supply status: In Stock
Selected configuration: Standard item

$190.00/ 顆~~Was $270.00~~-30%

Payment Options: FPSFlexible PaymentBank Transfer
Buyer Protection: Genuine ProductsCompany InvoiceAfter-sales Service

Sold by

JACO自營旗艦店

自營

KING TONY 323022S is an imperial 12-point deep socket with a 3/8-inch square drive and an 11/16-inch opening. Its overall length is 63 mm and the engagement depth is 18.0 mm. Match both the fastener size and drive size before use. This listing is for one socket, not a socket set.

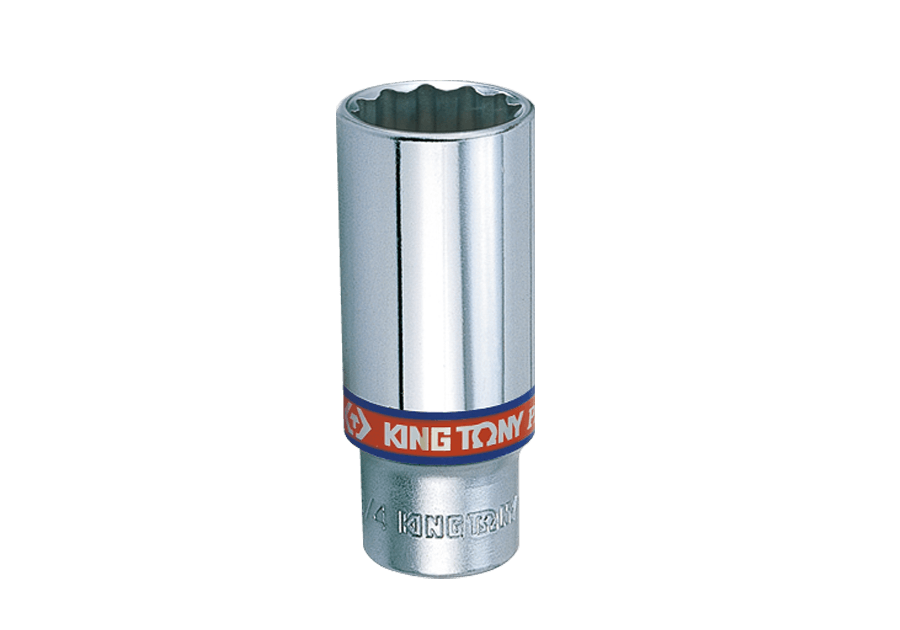

Manufacturer 3230S-series representative deep socket; this 323022S listing is 3/8-inch drive and 11/16-inch, not an exact-size photo. — The image is the manufacturer's KING TONY 3230S-series representative image, not an exact-size photograph of 323022S. Markings may differ from this item. This listing is the 3/8-inch drive, 11/16-inch 12-point deep socket, sold individually.

Features

12-point profile with an 11/16-inch imperial opening.
3/8-inch square drive with four detent-ball grooves.
Chrome vanadium alloy steel with a polished, chrome-plated finish.
Made to ANSI/ASME B107.1.

Manufacturer 3230S-series dimension diagram labelled D1, D2, l and L; use the 323022S specification values below. — The drawing illustrates the 3230S-series section dimensions. Use the 323022S values for D1, D2, l and L in the specification table; the image is not a to-scale drawing of this size.

Specifications

Brand	KING TONY
Model	323022S
Square drive	3/8 in
Imperial opening	11/16 in
Point count	12
Overall length L	63 mm
Working-end diameter D1	23.8 mm
Drive-end diameter D2	20.0 mm
Engagement depth l	18.0 mm
Weight	88 g
Material	Chrome vanadium alloy steel
Finish	Polished and chrome-plated
Retention design	Four detent-ball grooves
Standard	ANSI/ASME B107.1
Selling unit	One socket (worksheet UOM: 顆)

What's in the Box

323022S 11/16-inch 12-point deep socket × 1 (3/8-inch drive)
