KING TONY 323020S 3/8-inch Drive 5/8-inch 12-Point Deep Socket

Brand: KING TONY
Manufacturer model number: 323020S
Order code: Y8EV1TG
MOQ: 1 顆
Supply status: In Stock
Selected configuration: Standard item

$160.00/ 顆~~Was $230.00~~-30%

Payment Options: FPSFlexible PaymentBank Transfer
Buyer Protection: Genuine ProductsCompany InvoiceAfter-sales Service

Sold by

JACO自營旗艦店

自營

The KING TONY 323020S is a 5/8-inch imperial 12-point deep socket with a 3/8-inch square drive. Its 63 mm overall length provides a long-body option for fasteners in deeper positions. Match both the square-drive size and the fastener size when selecting tools. This listing is for one socket, not a socket set.

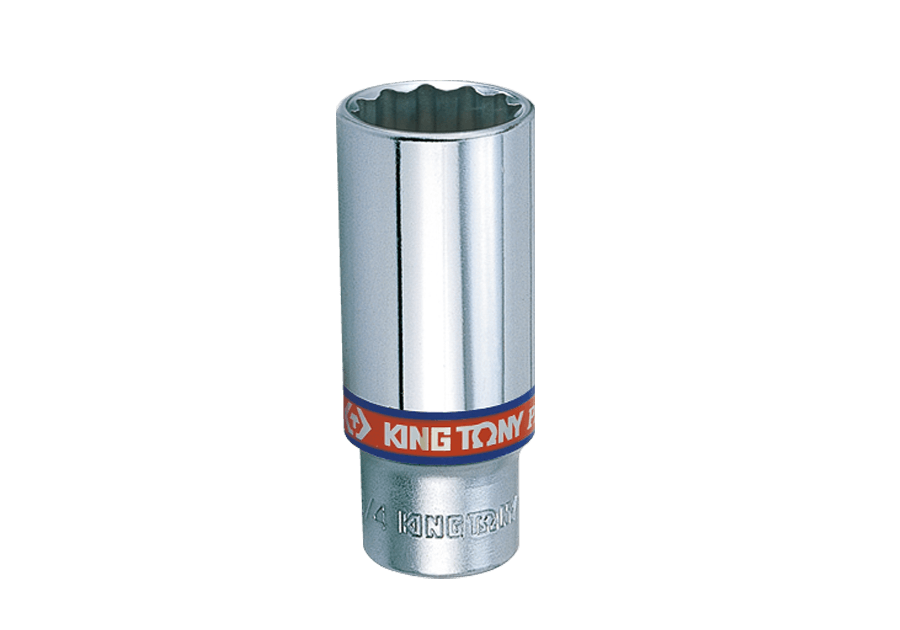

Manufacturer 3230S-series representative deep 12-point socket; this listing is 323020S, 3/8-inch drive, 5/8-inch size, not a confirmed exact-size photograph — Manufacturer's 3230S-series representative image, not a confirmed exact-size photograph; markings may differ from this item. This listing is the 323020S, 3/8-inch drive, 5/8-inch 12-point deep socket, sold individually.

Features

3/8-inch square-drive connection for tools of the same drive size.
5/8-inch imperial 12-point opening and 63 mm deep-socket body.
Chrome vanadium alloy steel with a polished, chrome-plated finish.
Four ball-retention grooves; manufacturer specification references ANSI/ASME B107.1.

Manufacturer 3230S-series socket cross-section showing D1, D2, l and L; exact 323020S values are in the specification table — Manufacturer's 3230S-series dimension drawing: D1 is the working-end outside diameter, D2 the drive-end outside diameter, l the opening depth and L the overall length. Exact 323020S values are listed below.

Specifications

Brand	KING TONY
Model	323020S
Square drive	3/8 inch
Socket size	5/8 inch (imperial)
Opening	12-point
Configuration	Deep socket
Overall length L	63 mm
Working-end outside diameter D1	21.8 mm
Drive-end outside diameter D2	20.0 mm
Opening depth l	18.0 mm
Weight	74 g
Material	Chrome vanadium alloy steel
Finish	Polished, chrome plated
Standard reference	ANSI/ASME B107.1
Sale unit	顆 (one socket)

What's in the Box

KING TONY 323020S 3/8-inch drive 5/8-inch imperial 12-point deep socket × 1
