Name: KING TONY 323018S 3/8" Drive 9/16" 12-Point Deep Socket
Brand: KING TONY
SKU: KT-323018S
Price: 160 TWD
Availability: InStock

KING TONY 323018S is an SAE 12-point deep socket with a 9/16-inch fastener opening and a 3/8-inch square drive. Its 63 mm overall length provides a deep-body configuration for reaching recessed fasteners. This listing is for one socket.

Features

Chrome vanadium alloy steel with a polished, chrome-plated finish.
Four ball grooves for drive retention.
Manufacturer specifies ANSI/ASME B107.1.
The 9/16-inch fastener size is separate from the 3/8-inch drive size; check both before selecting a tool.

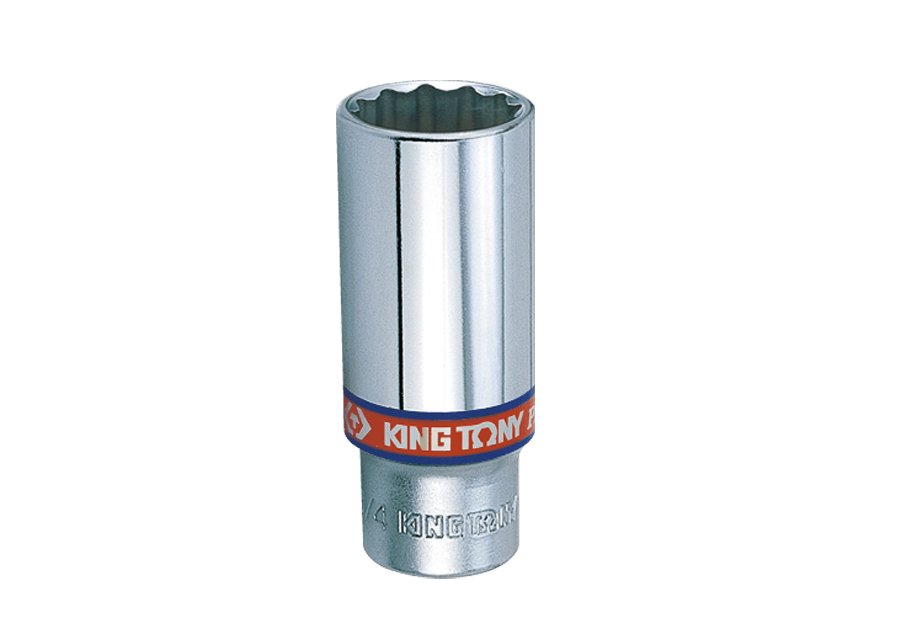

KING TONY 3230S-series representative deep socket photo; this listing is 323018S, 9/16-inch size, 3/8-inch drive — Manufacturer's KING TONY 3230S-series representative photograph, not an exact-size photograph. This listing is the 323018S 9/16-inch deep socket with a 3/8-inch drive, sold individually.

KING TONY 3230S-series socket dimensional cross-section showing D1, D2, ell and L — Manufacturer's 3230S-series dimensional diagram. Use the dimensions in the specification table for model 323018S; the drawing is not to scale.

Specifications

Brand	KING TONY
Manufacturer model	323018S
Drive	3/8 in square
Fastener size	9/16 in (SAE)
Profile	12-point
Configuration	Deep socket
Opening-end outside diameter D1	19.7 mm
Drive-end outside diameter D2	18.0 mm
Internal depth ℓ	16.0 mm
Overall length L	63 mm
Weight	58 g
Material	Chrome vanadium alloy steel
Finish	Polished and chrome plated
Standard	ANSI/ASME B107.1
Selling unit	One socket

What's in the Box

323018S 3/8-inch drive, 9/16-inch 12-point deep socket × 1

Features

Chrome vanadium alloy steel with a polished, chrome-plated finish.
Four ball grooves for drive retention.
Manufacturer specifies ANSI/ASME B107.1.
The 9/16-inch fastener size is separate from the 3/8-inch drive size; check both before selecting a tool.

Specifications

Brand	KING TONY
Manufacturer model	323018S
Drive	3/8 in square
Fastener size	9/16 in (SAE)
Profile	12-point
Configuration	Deep socket
Opening-end outside diameter D1	19.7 mm
Drive-end outside diameter D2	18.0 mm
Internal depth ℓ	16.0 mm
Overall length L	63 mm
Weight	58 g
Material	Chrome vanadium alloy steel
Finish	Polished and chrome plated
Standard	ANSI/ASME B107.1
Selling unit	One socket

What's in the Box

323018S 3/8-inch drive, 9/16-inch 12-point deep socket × 1
