KING TONY 323014S 3/8-Inch Drive 7/16-Inch 12-Point Deep Socket

Brand: KING TONY
Manufacturer model number: 323014S
Order code: Y8E49ZY
MOQ: 1 顆
Supply status: In Stock
Selected configuration: Standard item

$160.00/ 顆~~Was $230.00~~-30%

Payment Options: FPSFlexible PaymentBank Transfer
Buyer Protection: Genuine ProductsCompany InvoiceAfter-sales Service

Sold by

JACO自營旗艦店

自營

The KING TONY 323014S is the 7/16-inch SAE size in the 3230S deep 12-point socket range. It has a 3/8-inch square drive and a 63mm overall length for applications requiring a deeper reach. Match both the fastener size and the tool drive before selecting a socket.

Features

7/16-inch 12-point opening with a 3/8-inch square drive.
Chrome vanadium alloy steel with a polished, chrome-plated finish.
Four ball-retention grooves accommodate the drive tool's locating ball.
The manufacturer lists ANSI/ASME B107.1 as the applicable standard.

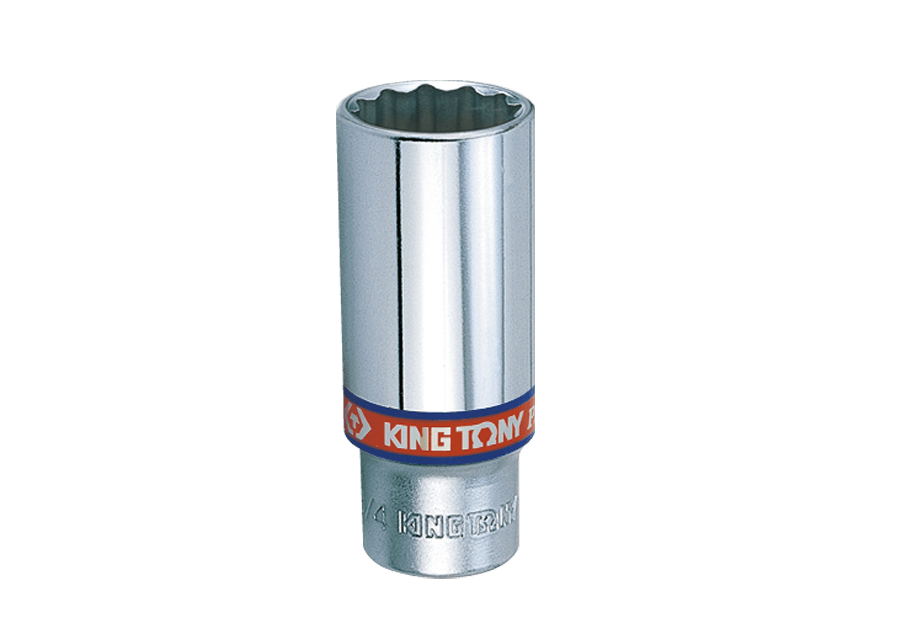

Manufacturer's 3230S-series deep 12-point socket image, not an exact-size photo of 323014S; this listing is one 3/8-inch-drive, 7/16-inch socket. — Manufacturer's 3230S-series representative image, not an exact-size photograph of 323014S. Markings may differ from this item. This listing is the 3/8-inch-drive, 7/16-inch 12-point deep socket with a 63mm overall length, sold individually.

3230S-series socket dimension diagram with D1, D2, l and L labels; see the specification table for the exact 323014S values. — This 3230S-series sectional diagram illustrates the dimension labels; it is not a scale photograph of this size. For 323014S, D1 is 15.8mm, D2 is 17.8mm, l is 15mm and L is 63mm.

Product specifications

Model	323014S
Square drive	3/8 inch
Socket size	7/16 inch (SAE)
Profile	12-point
Style	Deep socket
Overall length L	63mm
Working-end outside diameter D1	15.8mm
Drive-end outside diameter D2	17.8mm
Internal working depth l	15mm
Weight	53g
Material	Chrome vanadium alloy steel
Finish	Polished and chrome-plated
Retention design	Four ball-retention grooves
Manufacturer-listed standard	ANSI/ASME B107.1
Sales unit	One socket

What's in the Box

323014S 3/8-inch-drive 7/16-inch 12-point deep socket ×1
